Battery Positive Cable Replacement

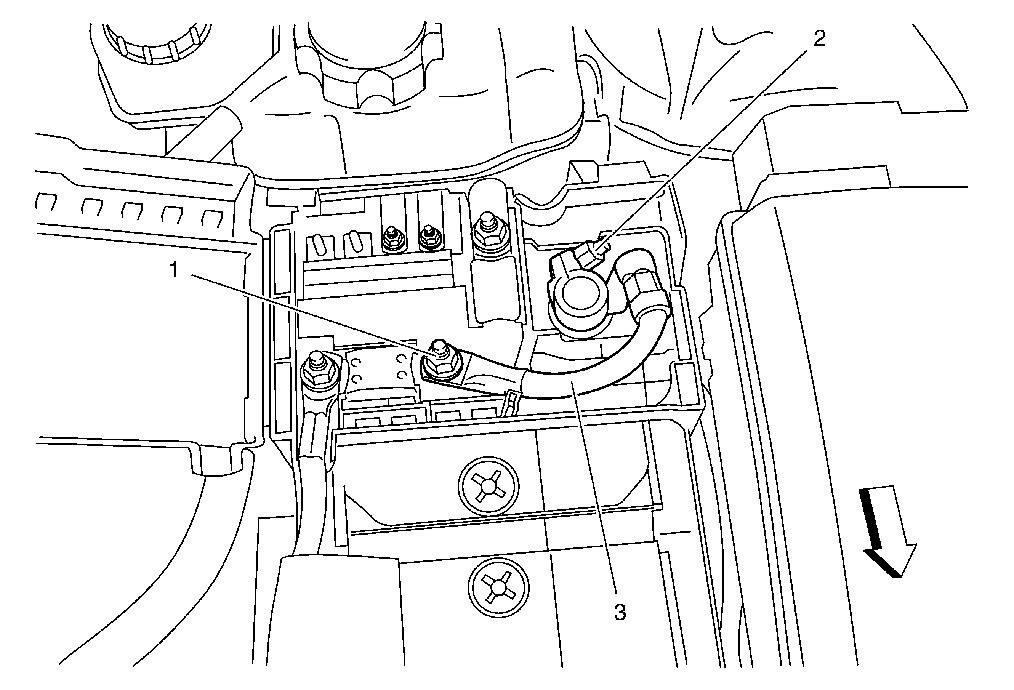

Fig 1: Battery Positive Cable
GM2020303Courtesy of GENERAL MOTORS COMPANY
Battery Positive Cable Replacement

Callout Component Name

Preliminary Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Open the battery fuse block cover.
1 Battery Positive Cable Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
20 (15 lb ft)
2 Battery Positive Cable Fastener
Tighten
4.5 (40 lb in)
3 Battery Positive Cable
