Front Side Door Window Regulator Replacement

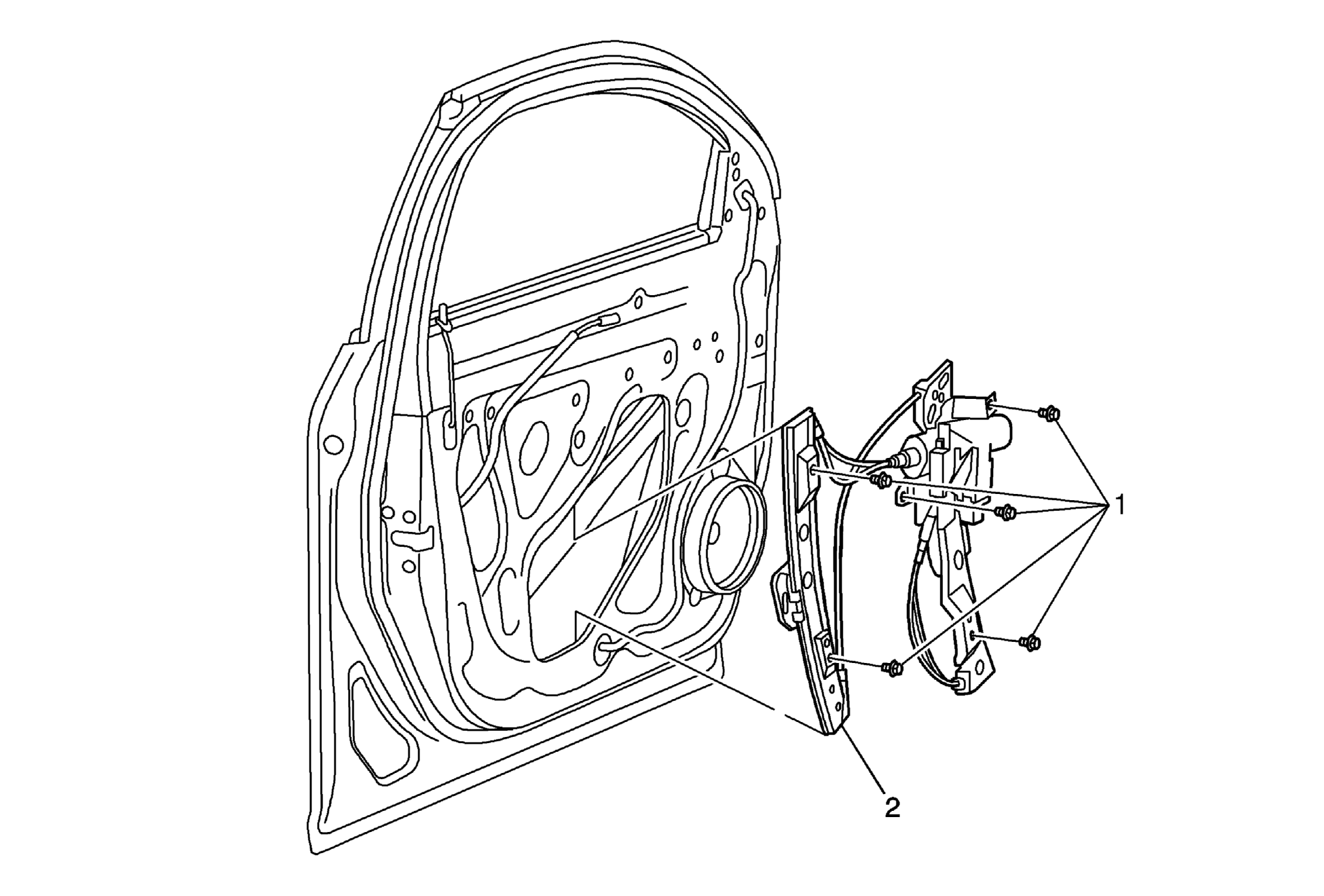

Fig 1: Front Side Door Window Regulator & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Remove the front side door window. Refer to Front Side Door Window Replacement .
1	Front Side Door Window Regulator Fasteners (Qty: 5) CAUTION: Refer to Fastener Caution . Procedures Remove the water deflector. Release the 2 window retainers, push the window to the full up position and tape in place. Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Procedures Disconnect the front side door window regulator electrical connector. Window regulator motor programming and set-up. Refer to Control Module References . Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedure Remove the front side door window. Refer to Front Side Door Window Replacement .

Front Side Door Window Regulator Fasteners (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Procedures

Remove the water deflector.
Release the 2 window retainers, push the window to the full up position and tape in place.

Tighten
10 N.m (89 lb in)

Front Side Door Window Regulator

Procedures

Disconnect the front side door window regulator electrical connector.
Window regulator motor programming and set-up. Refer to Control Module References .
Inspect the door window for proper operation before installing the door trim panel.
