Ignition and Start Switch Housing Replacement

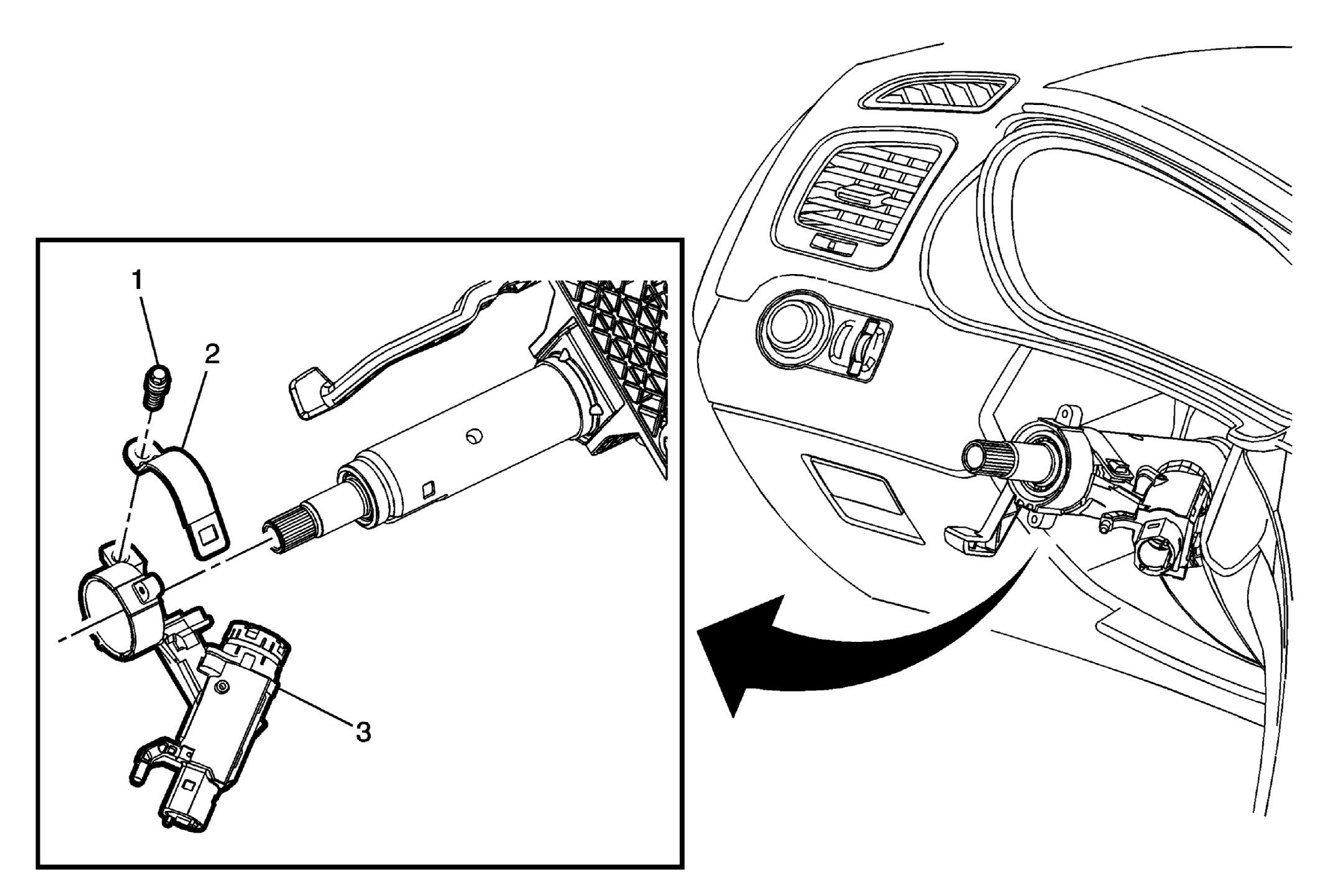

Fig 1: Ignition And Start Switch Housing, Strap & Bolt
GM2752327Courtesy of GENERAL MOTORS COMPANY
Ignition and Start Switch Housing Replacement

Callout Component Name
Preliminary Procedure
Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement (Without BTM) , Turn Signal Switch Bracket Replacement (With BTM) .
1 Ignition and Start Switch Housing Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Discard the old ignition and start switch housing bolt.
  2. Install the NEW ignition and start switch housing bolt and tighten until the bolt head breaks off.
2 Ignition and Start Switch Housing Strap
3 Ignition and Start Switch Housing

Procedure

  1. Disconnect any electrical connectors.
  2. Transfer any parts as necessary.
