Ignition Lock Cylinder Replacement
Courtesy of GENERAL MOTORS COMPANY Ignition Lock Cylinder Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
.
- Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement
.
|

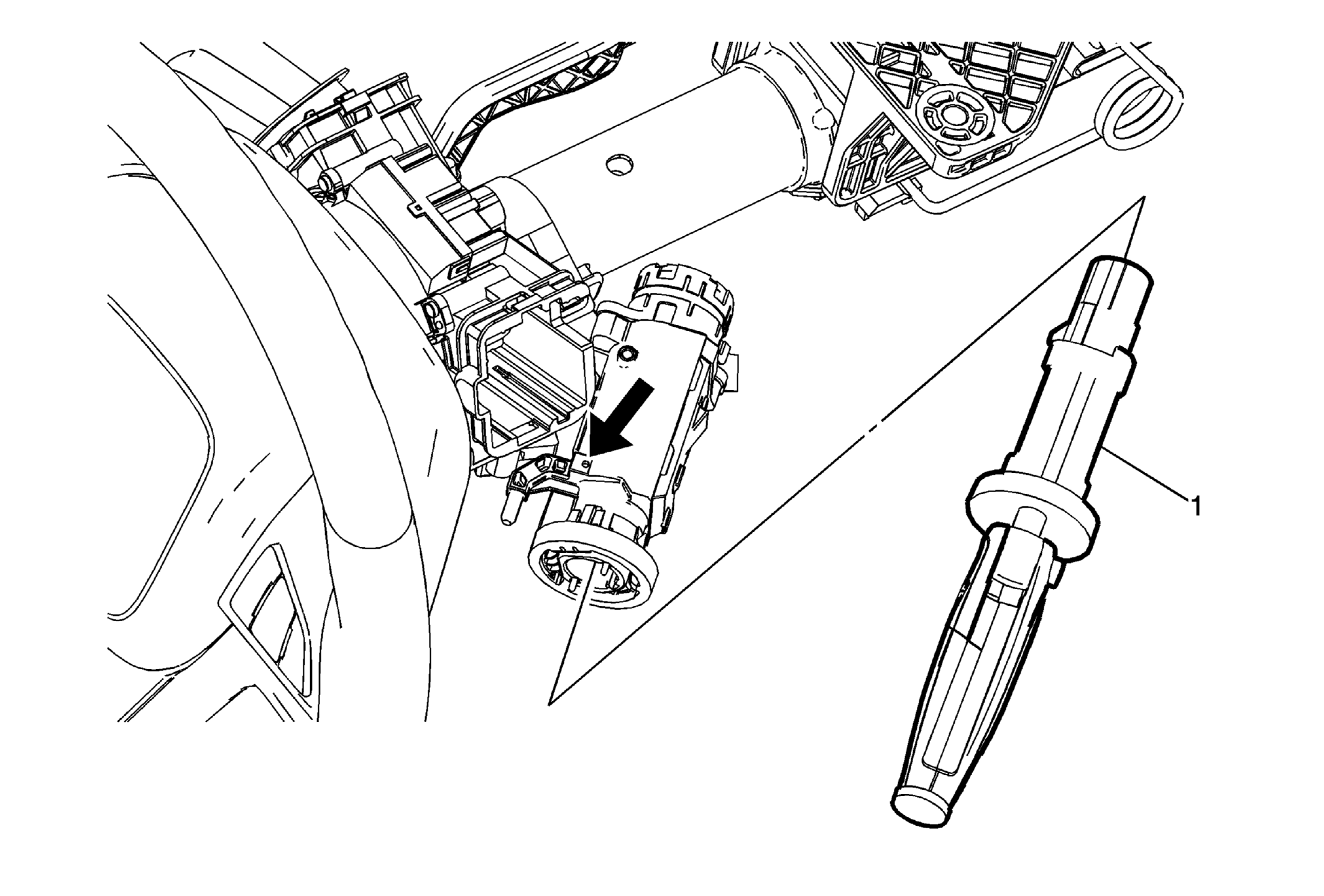

| 1 |
Ignition Lock Cylinder Procedure
- Turn the ignition lock cylinder to the RUN position.
- Insert a pick-type tool into the proper hole on the ignition and start switch housing and press the lock tab on the ignition lock cylinder down while turning the cylinder to the START position.
- Pull the ignition lock cylinder out of the ignition and start switch housing.
- If installing a new ignition lock cylinder then refer to Lock Cylinder Coding - Ignition
.
|
