Headlamp Switch Replacement

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

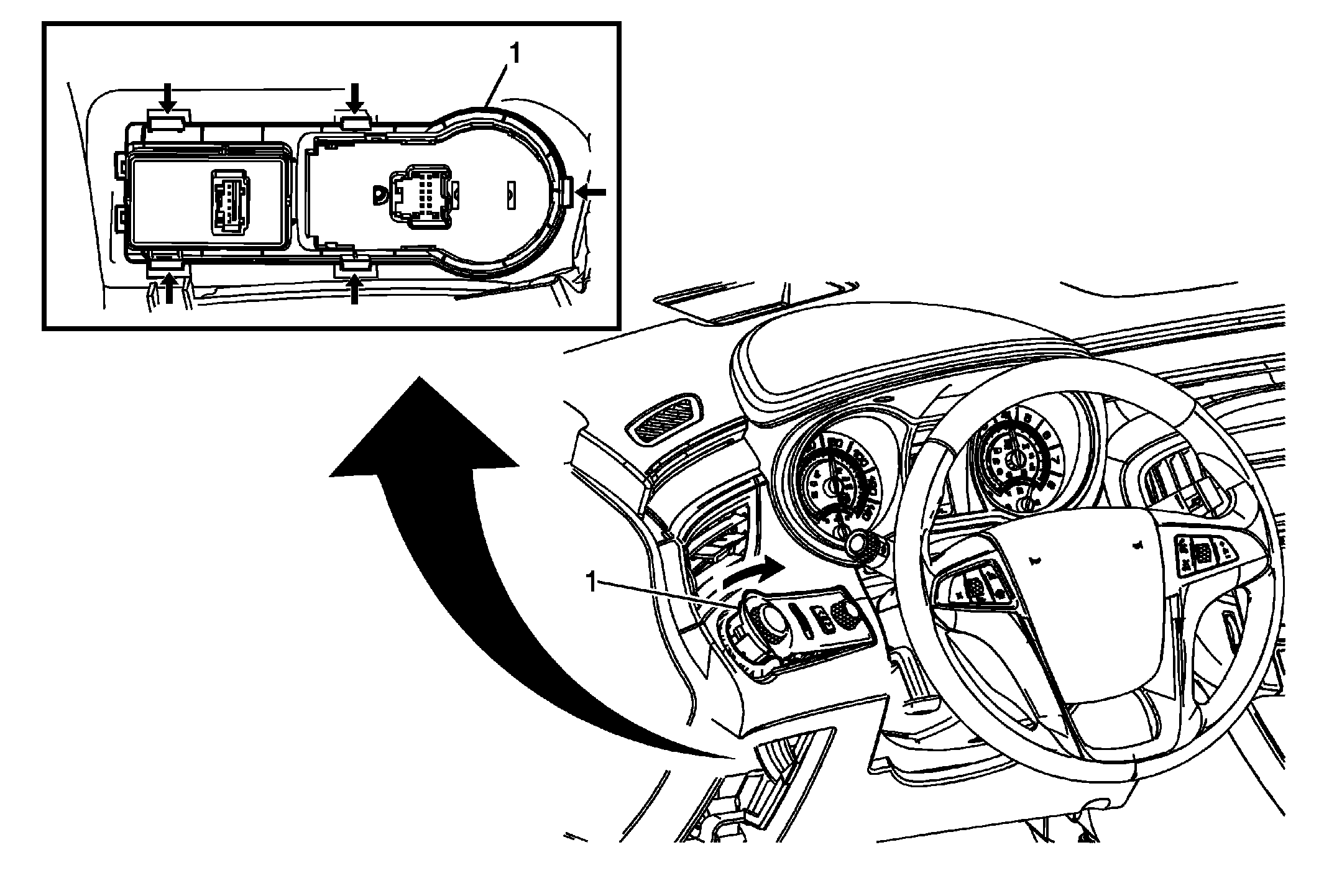

Fig 1: Headlamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel cluster lower compartment. Refer to Instrument Panel Cluster Lower Compartment Replacement .
1	Headlamp Switch Assembly Procedure Disconnect the electrical connections. Push in tabs to release the switch from the panel.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel cluster lower compartment. Refer to Instrument Panel Cluster Lower Compartment Replacement .

Headlamp Switch Assembly

Procedure

Disconnect the electrical connections.
Push in tabs to release the switch from the panel.
