Remote Function Schematics

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

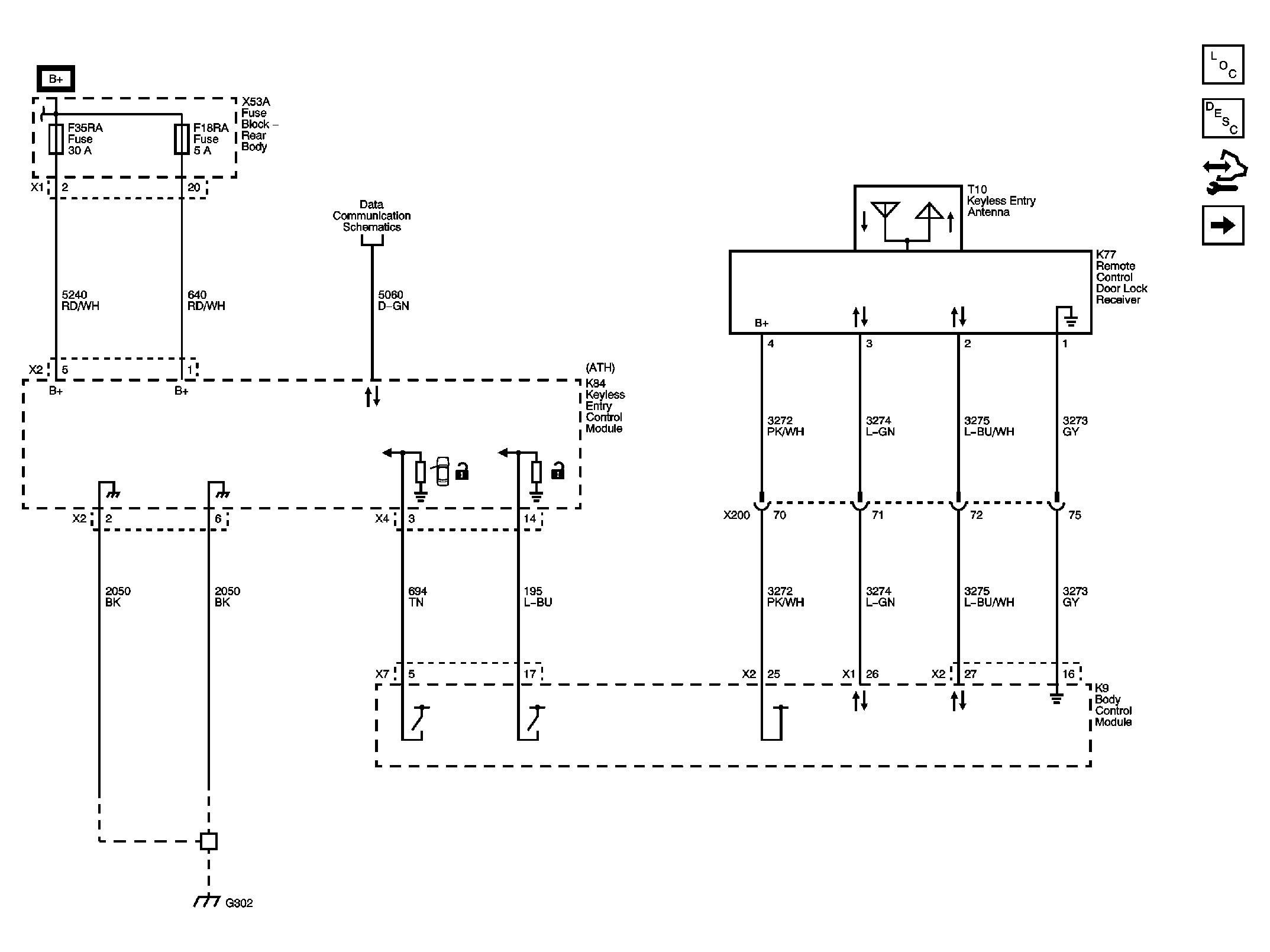

Fig 1: Module Power, Ground, Data Communication, and Controls

Courtesy of GENERAL MOTORS CORP.

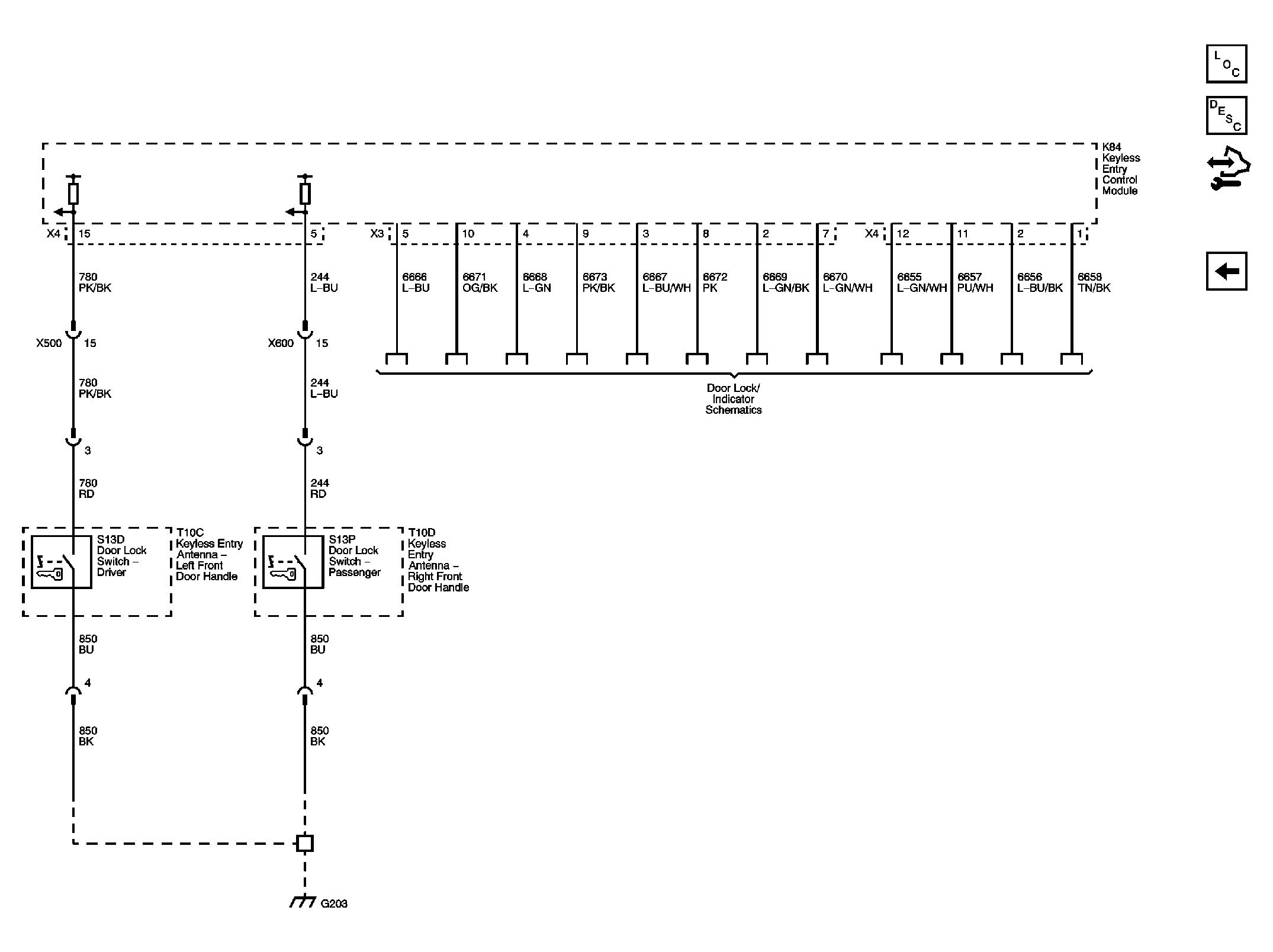

Fig 2: Passive Entry, Passive Start Antenna

Courtesy of GENERAL MOTORS CORP.

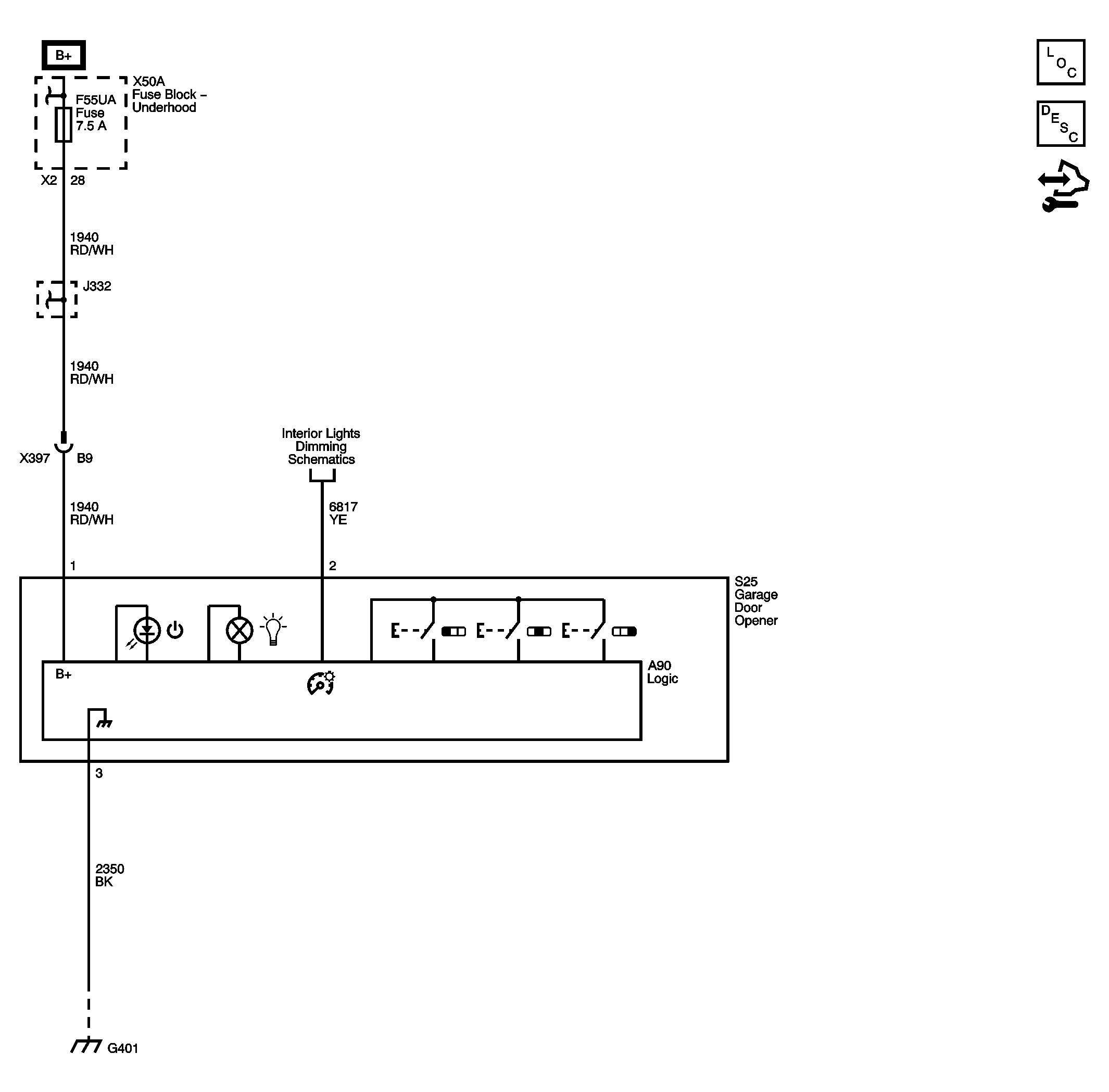

Fig 3: Garage Door Opener

Courtesy of GENERAL MOTORS CORP.

Fig 4: References

Courtesy of GENERAL MOTORS CORP.
