Electronic Compass Module Replacement

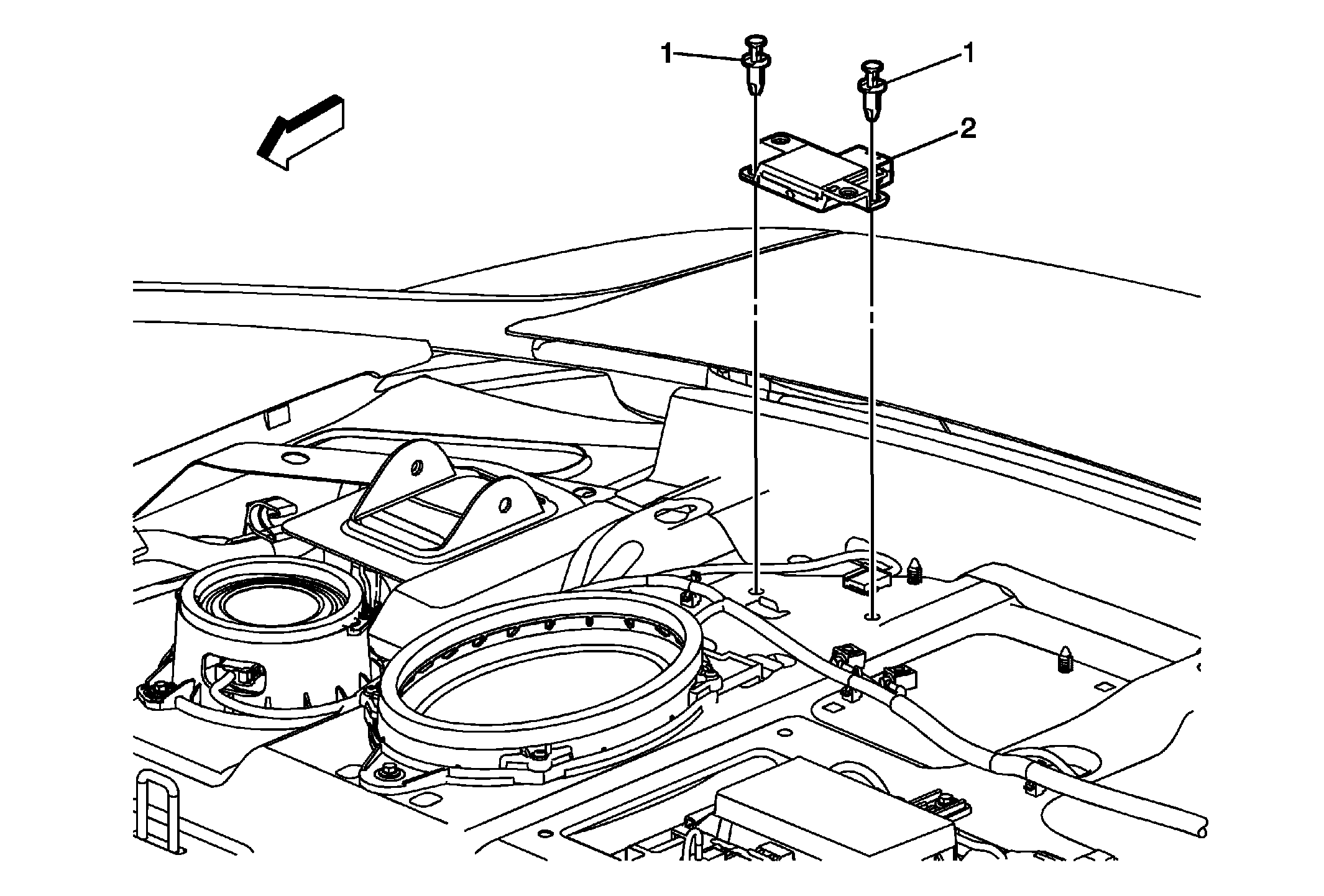

Fig 1: Electronic Compass Module
GM2203976Courtesy of GENERAL MOTORS COMPANY
Electronic Compass Module Replacement

Callout Component Name
Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (with DB3) , Rear Window Panel Trim Replacement (without DB3) or Rear Window Panel Trim Replacement (With HP6) .
1 Electronic Compass Module Retainer (Qty: 2)
2 Electronic Compass Module

Procedure

  1. Disconnect the electrical connectors.
  2. For programming and set up information, refer to Control Module References .
