Power, Ground, Data Communications And System References (1 Of 4)

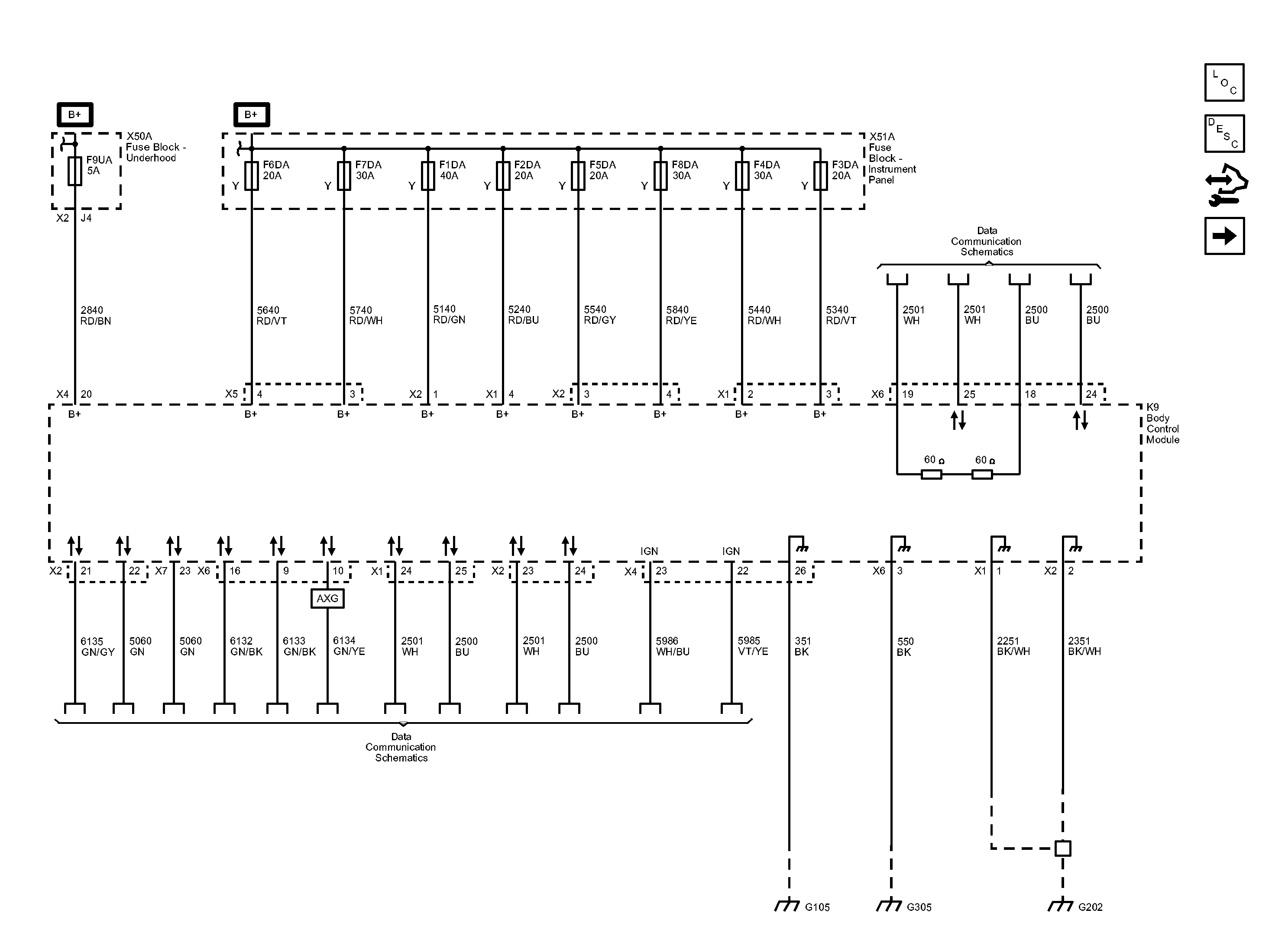

Fig 1: Power, Ground, Data Communications And System References Wiring Schematic (1 Of 4)

GM2873595

Courtesy of GENERAL MOTORS COMPANY
