Water Pump Housing Replacement (LE2)
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

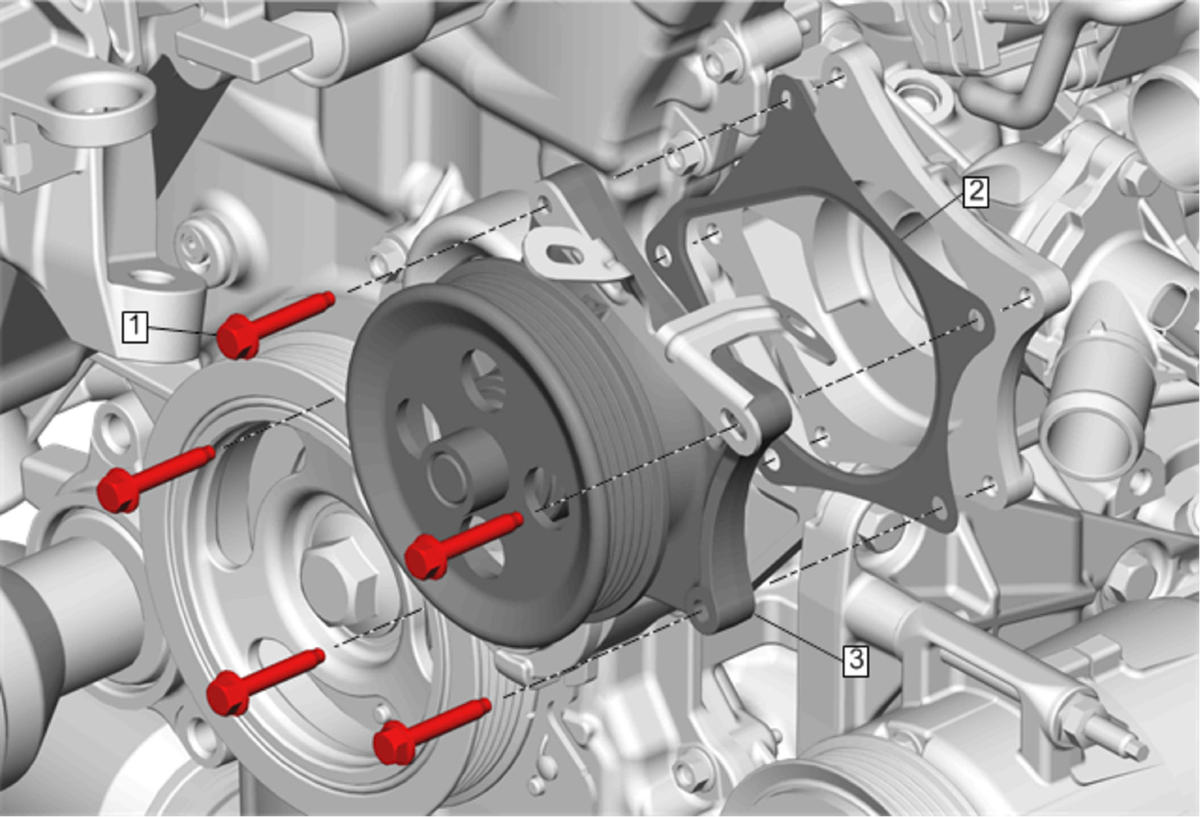

| Callout | Component Name |
|---|---|
|
Preliminary Procedures |
|
| 1 | Water Pump Housing Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Gasket Procedure Install a NEW gasket. |
| 3 | Water Pump Housing |
