Radiator Air Lower Baffle Replacement (LE2)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

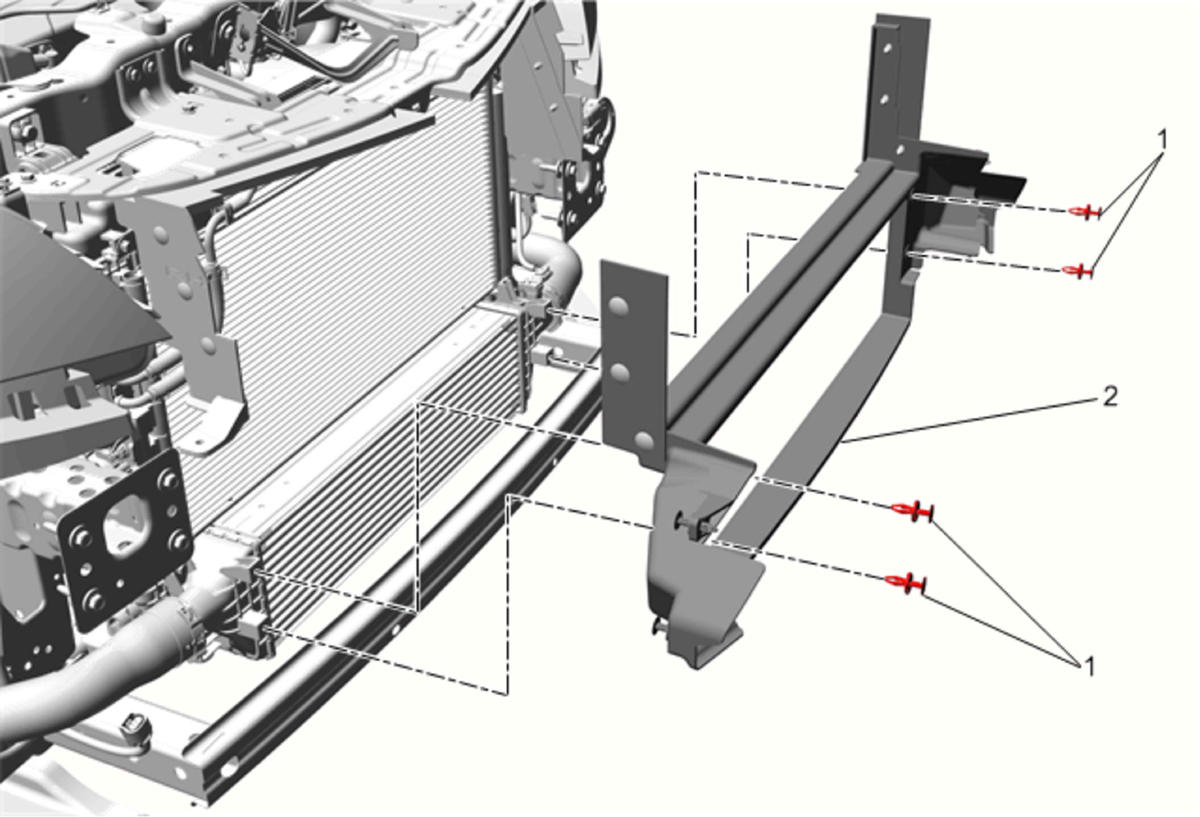

Fig 1: Radiator Air Lower Baffle (LE2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement (Encore) Front Bumper Lower Impact Bar Replacement
1	Radiator Air Baffle Retainer
2	Radiator Air Lower Baffle

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Replacement (Encore)
Front Bumper Lower Impact Bar Replacement

Radiator Air Baffle Retainer

Radiator Air Lower Baffle
