Amplifier Power, Ground, and Inputs (Trax with UQA)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

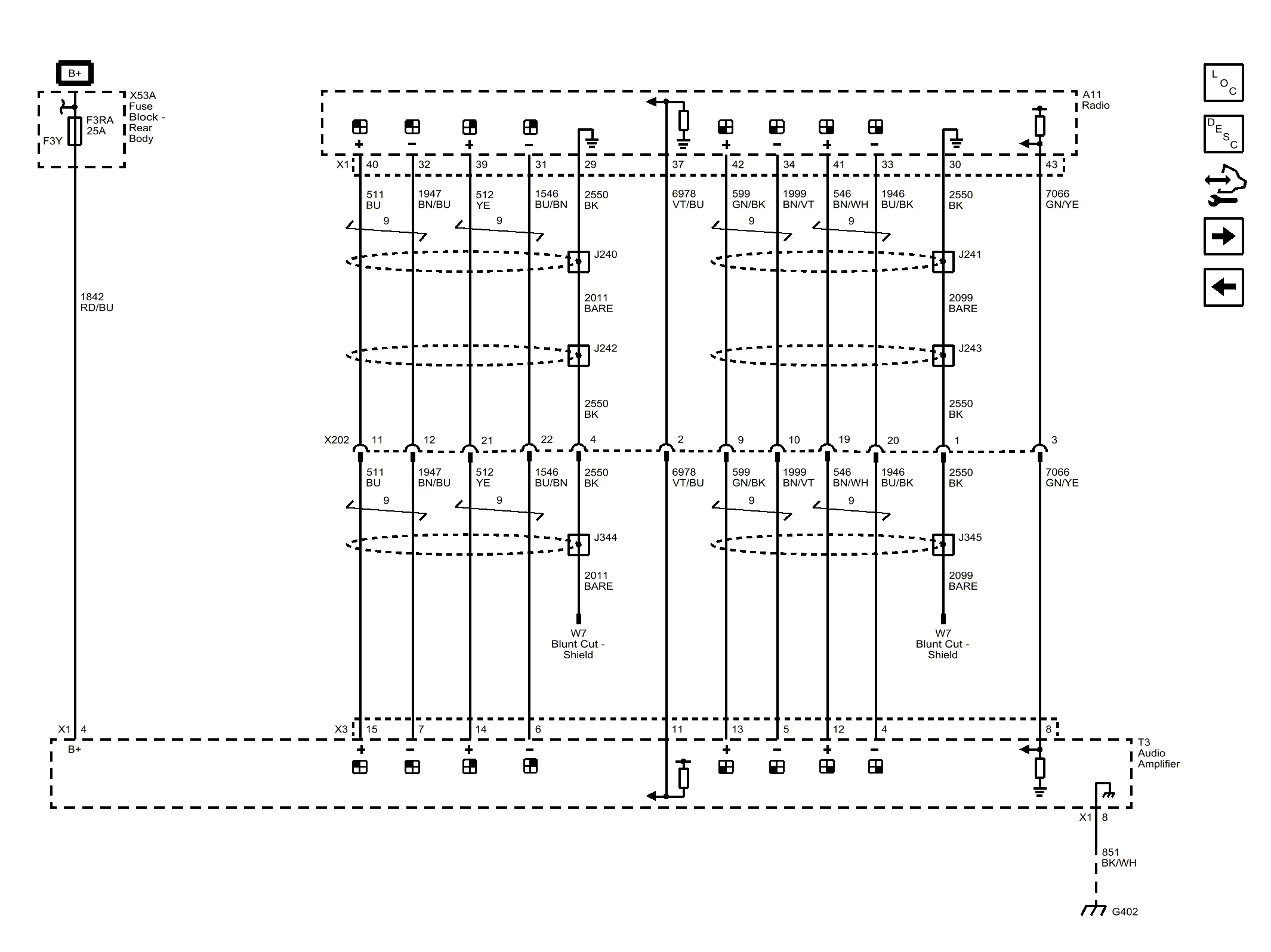

Fig 1: Amplifier Power, Ground, and Inputs (Trax with UQA)
GM3989321Courtesy of GENERAL MOTORS COMPANY
