Radio Windshield Side Garnish Molding Speaker Replacement (Encore)
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement (Encore) . |
|

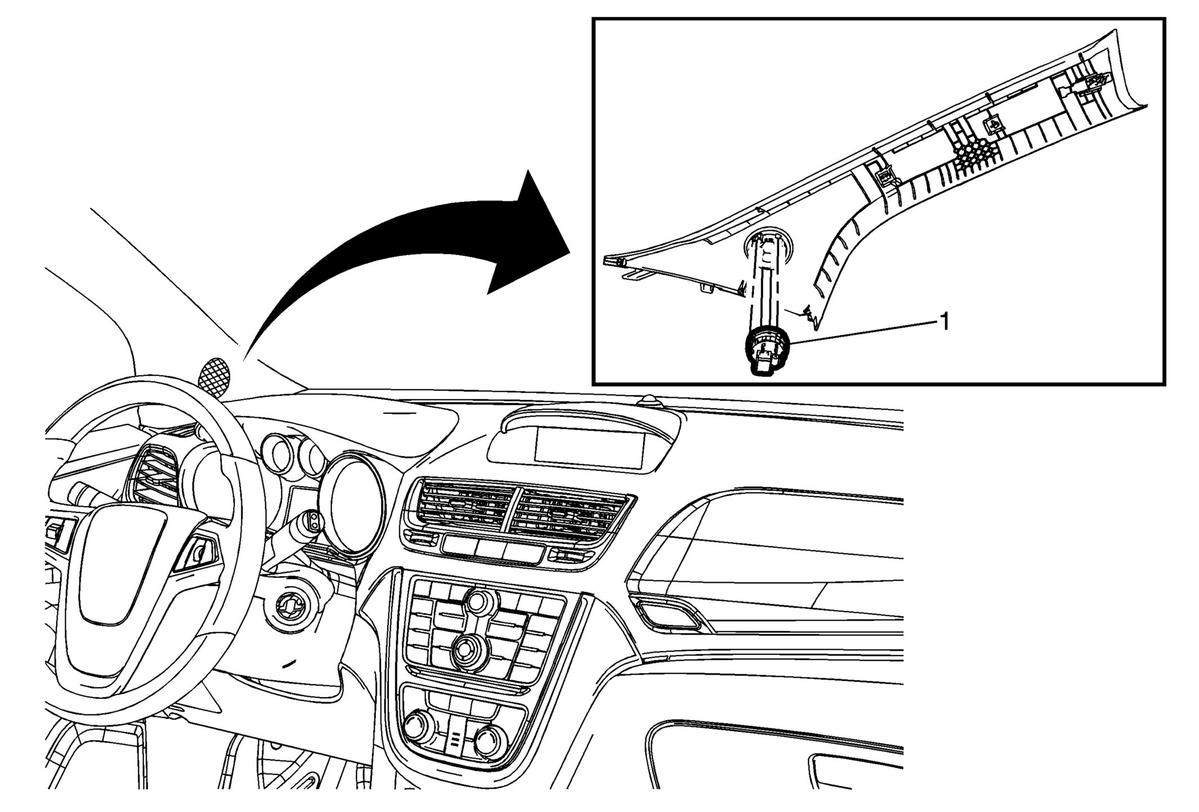

| 1 | Radio Windshield Side Garnish Molding Speaker Procedure Depress tabs to remove speaker. |
