Rear Axle Lubricant Level Inspection

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

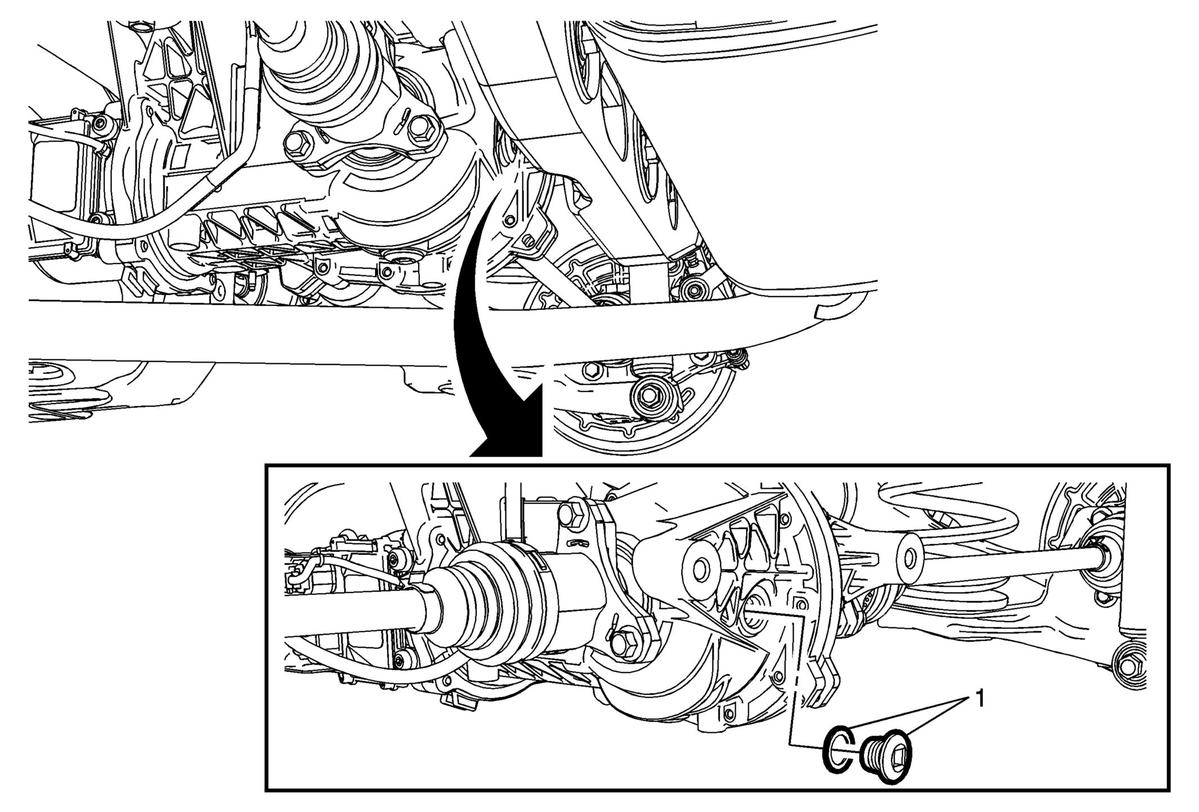

Fig 1: Rear Axle Lubricant Level Inspection Plug

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Rear Differential Fill Plug CAUTION: Refer to Fastener Caution . Procedure The differential fluid should be even with the bottom threads on the fill hole. If fluid is needed, refer to Approximate Fluid Capacities . Tighten 39 (29 lb ft)

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Rear Differential Fill Plug

CAUTION:

Refer to Fastener Caution .

Procedure

The differential fluid should be even with the bottom threads on the fill hole.
If fluid is needed, refer to Approximate Fluid Capacities .

Tighten
39 (29 lb ft)
