Removal Procedure
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to - Lifting and Jacking the Vehicle .
- Remove the front tire and wheel assembly. Refer to - Tire and Wheel Removal and Installation .
- Remove the front brake rotor. Refer to - Front Brake Rotor Replacement .

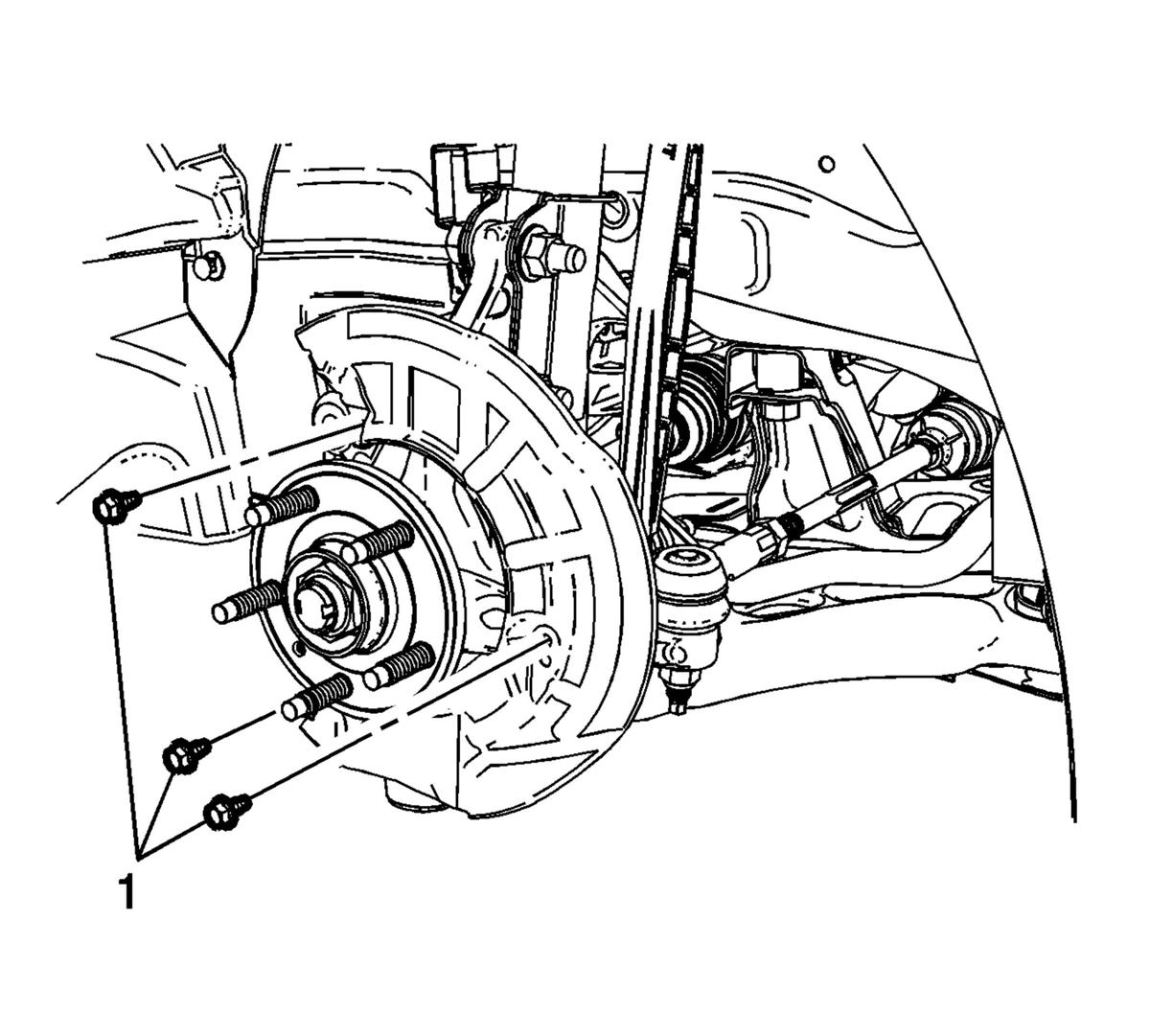

- Remove the front brake shield bolts (1).

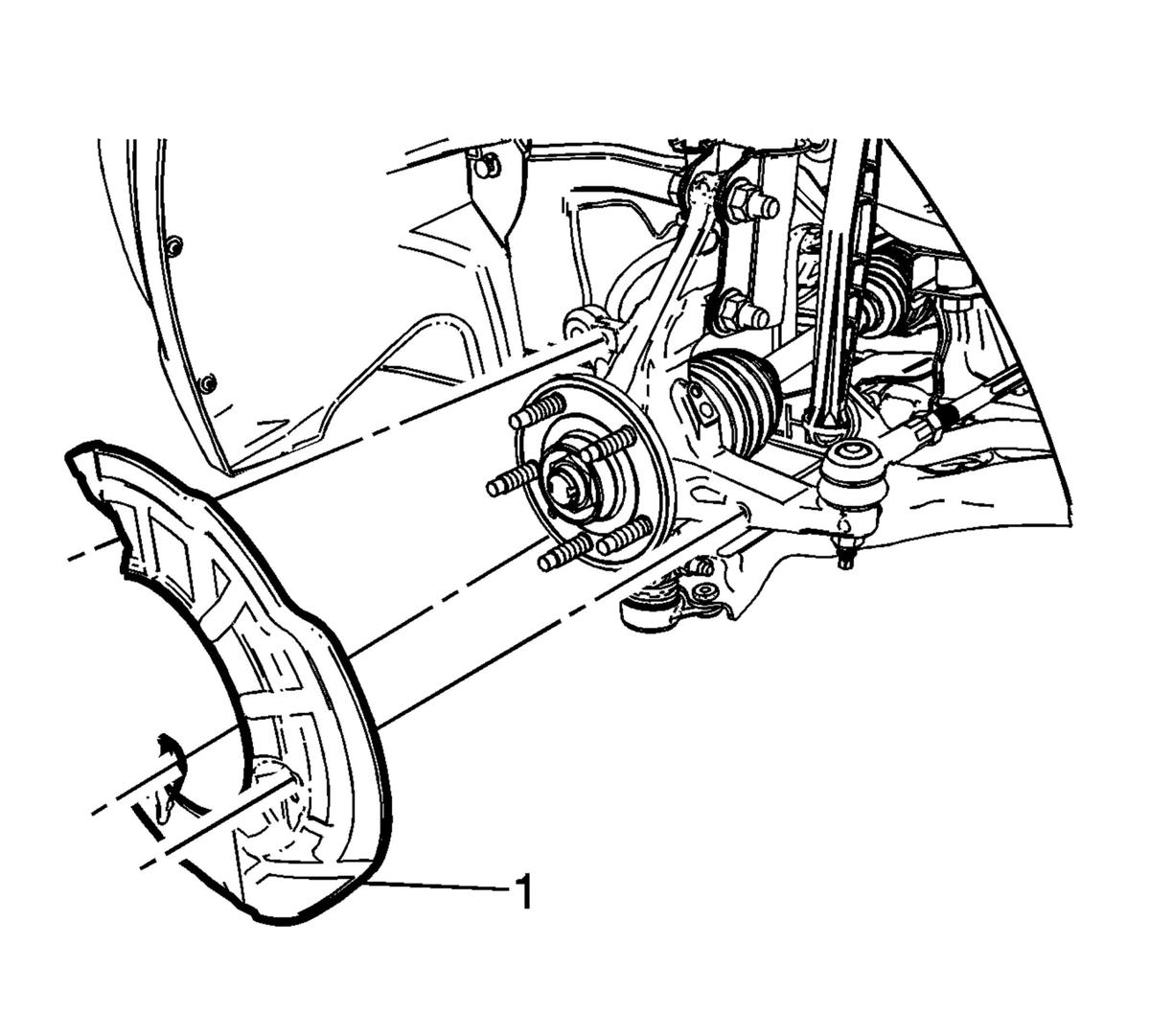

- Remove the front brake shield (1).
WARNING:
Refer to - Brake Dust Warning .
