Power Steering Schematics: NJ1

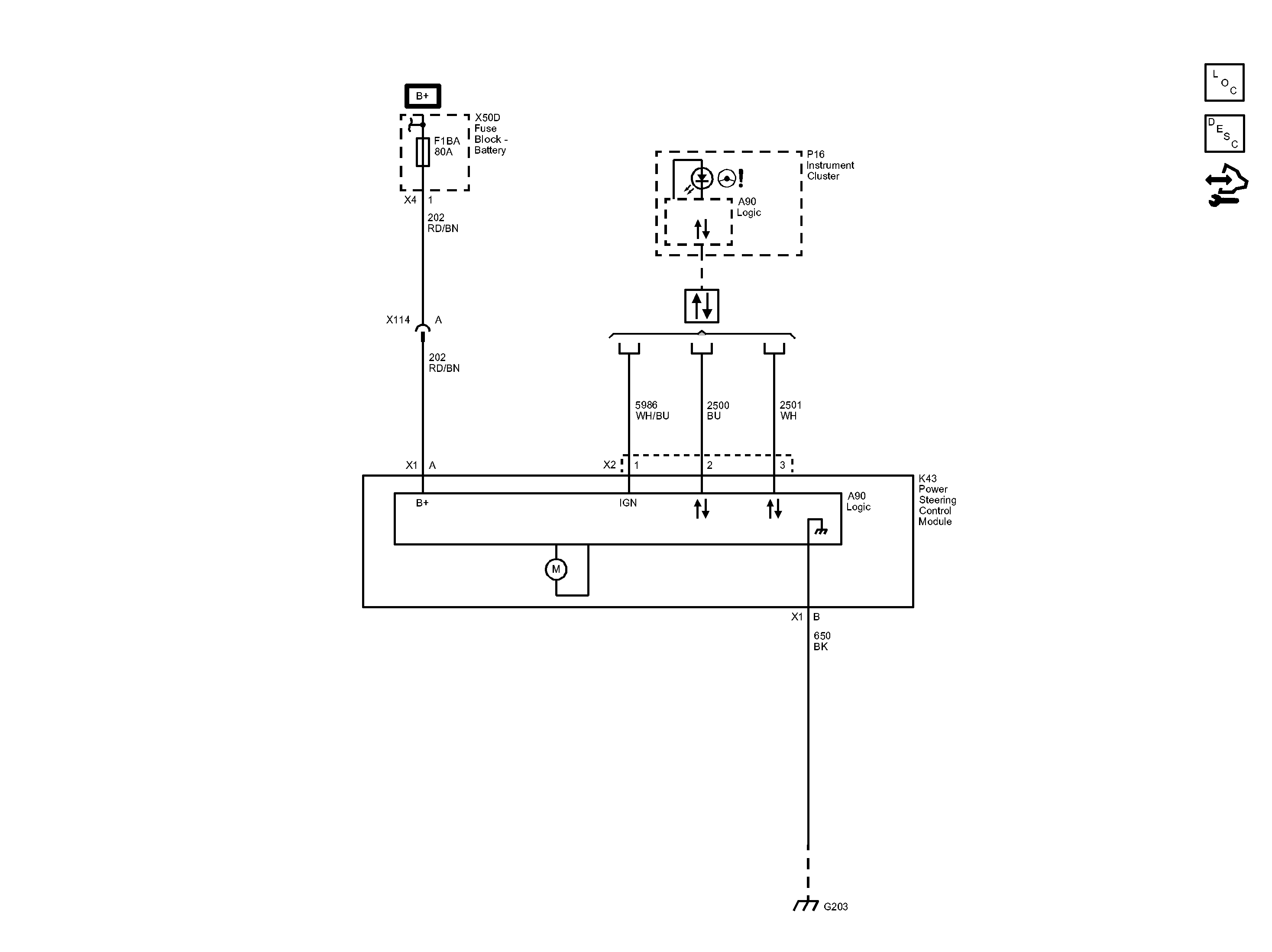

Fig 1: Power Steering (NJ1) Wiring Schematic

GM2873803

Courtesy of GENERAL MOTORS COMPANY
