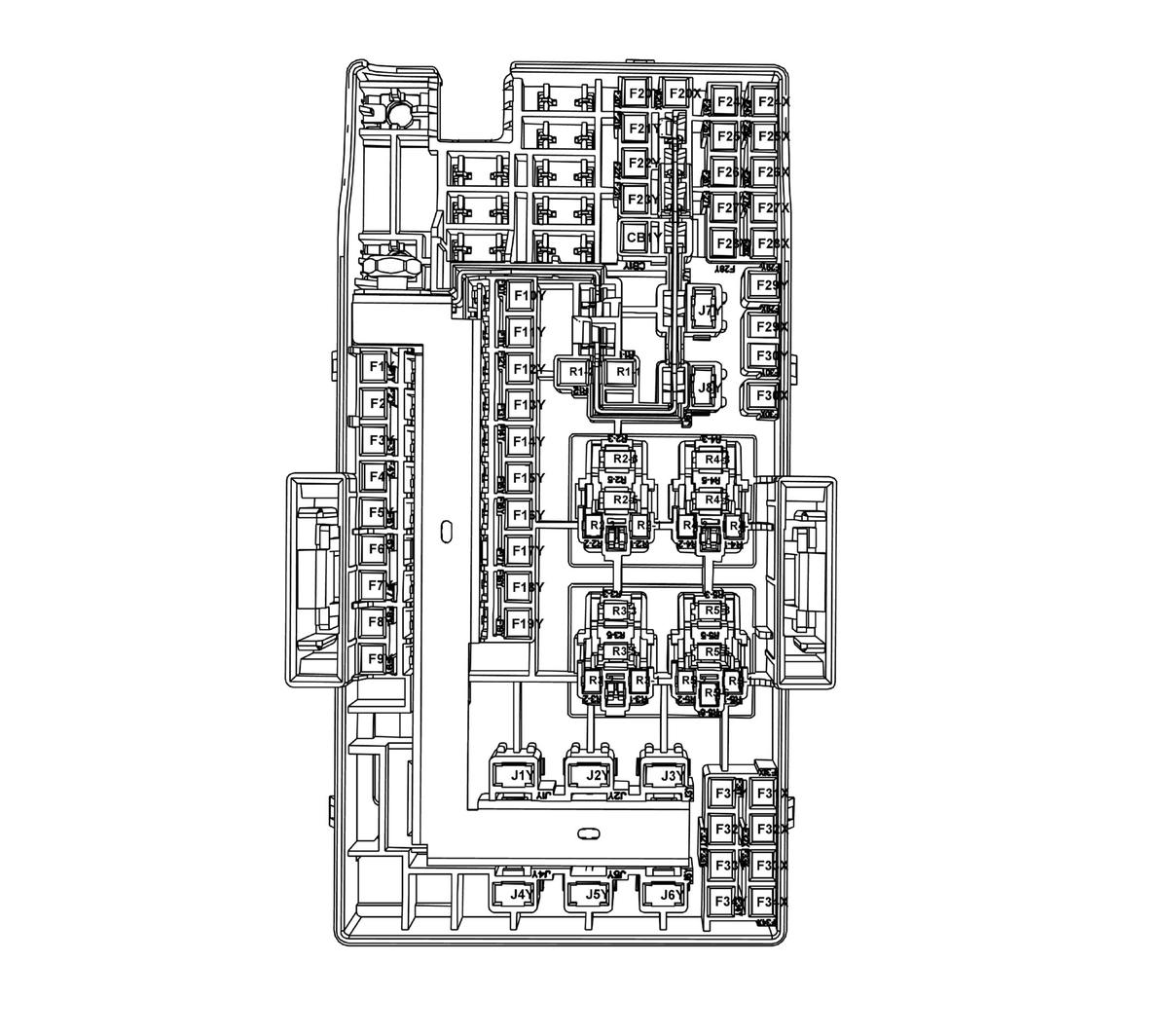

X51A Fuse Block - Instrument Panel, Wire Entry

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 95183112
Service Connector: Pending
Description: WIRE ENTRY WIRE ENTRY WIRE ENTRY

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Pending	Pending	Pending

X51A Fuse Block - Instrument Panel, Wire Entry

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
F10Y: F10Y	F10Y: 0.35	F10Y: RD/GN	F10Y: 1202	F10Y: Battery Positive Voltage	F10Y: I	F10Y: -
F11Y: F11Y	F11Y: 0.35	F11Y: RD/BN	F11Y: 5940	F11Y: Battery Positive Voltage	F11Y: I	F11Y: -
F12Y: F12Y	F12Y: 0.5	F12Y: RD/YE	F12Y: 442	F12Y: Battery Positive Voltage	F12Y: I	F12Y: -
F12Y: F12Y	F12Y: 0.35	F12Y: RD/BN	F12Y: 440	F12Y: Battery Positive Voltage	F12Y: I	F12Y: -
F13Y: F13Y	F13Y: 0.5	F13Y: RD/GY	F13Y: 3540	F13Y: Battery Positive Voltage	F13Y: I	F13Y: -
F14Y: F14Y	F14Y: 0.35	F14Y: RD/BN	F14Y: 1140	F14Y: Battery Positive Voltage	F14Y: I	F14Y: -
F15Y: F15Y	F15Y: 0.5	F15Y: RD/YE	F15Y: 1142	F15Y: Battery Positive Voltage	F15Y: I	F15Y: -
F16Y: F16Y	F16Y: 0.5	F16Y: RD/GY	F16Y: 402	F16Y: Battery Positive Voltage	F16Y: I	F16Y: -
F17Y: F17Y	F17Y: 0.35	F17Y: RD/VT	F17Y: 16340	F17Y: Battery Positive Voltage	F17Y: I	F17Y: -
F18Y: F18Y	F18Y: 0.35	F18Y: RD/GN	F18Y: 1840	F18Y: Battery Positive Voltage	F18Y: I	F18Y: -
F1Y: F1Y	F1Y: 0.5	F1Y: RD/GN	F1Y: 5140	F1Y: Battery Positive Voltage	F1Y: I	F1Y: -
F20X: F20X	F20X: 0.5	F20X: YE/YE	F20X: 6817	F20X: LED Backlight Dimming Control	F20X: I	F20X: -
F20Y: F20Y	F20Y: 0.5	F20Y: YE/YE	F20Y: 6817	F20Y: LED Backlight Dimming Control	F20Y: I	F20Y: -
F21Y: F21Y	F21Y: 0.35	F21Y: GY/VT	F21Y: 755	F21Y: RAP Relay Coil Control	F21Y: I	F21Y: -
F21Y: F21Y	F21Y: 0.35	F21Y: VT/VT	F21Y: 0101	F21Y:	F21Y: I	F21Y: -
F21Y: F21Y	F21Y: 0.35	F21Y: VT/VT	F21Y: 801	F21Y: Retained Accessory Power Fuse Supply Voltage	F21Y: I	F21Y: -
F22Y: F22Y	F22Y: 1	F22Y: VT/VT	F22Y: 1301	F22Y: Retained Accessory Power Fuse Supply Voltage	F22Y: I	F22Y: -
F26X: F26X	F26X: 1.5	F26X: VT/GN	F26X: 39	F26X: Run/Crank Ignition 1 Voltage	F26X: I	F26X: -
F26Y: F26Y	F26Y: 0.35	F26Y: VT/WH	F26Y: 639	F26Y: Run/Crank Ignition 1 Voltage	F26Y: I	F26Y: -
F27X: F27X	F27X: 1.5	F27X: VT/GN	F27X: 39	F27X: Run/Crank Ignition 1 Voltage	F27X: I	F27X: -
F27Y: F27Y	F27Y: 0.35	F27Y: VT/BK	F27Y: 301	F27Y: Park Lamp Switch On Signal	F27Y: I	F27Y: -
F27Y: F27Y	F27Y: 0.35	F27Y: VT/BK	F27Y: 3	F27Y: Run/Crank Ignition 1 Voltage	F27Y: I	F27Y: -
F27Y: F27Y	F27Y: 0.35	F27Y: VT/GY	F27Y: 1339	F27Y: Run/Crank Ignition 1 Voltage	F27Y: I	F27Y: -
F27Y: F27Y	F27Y: 0.35	F27Y: VT/BK	F27Y: 302	F27Y: Battery Positive Voltage	F27Y: I	F27Y: -
F27Y: F27Y	F27Y: 0.35	F27Y: VT/BK	F27Y: 739	F27Y: Run/Crank Ignition 1 Voltage	F27Y: I	F27Y: -
F28X: F28X	F28X: 1.5	F28X: VT/GN	F28X: 39	F28X: Run/Crank Ignition 1 Voltage	F28X: I	F28X: -
F28Y: F28Y	F28Y: 0.5	F28Y: VT/WH	F28Y: 239	F28Y: Run/Crank Ignition 1 Voltage	F28Y: I	F28Y: -
F28Y: F28Y	F28Y: 0.5	F28Y: VT/GN	F28Y: 3901	F28Y:	F28Y: I	F28Y: -
F28Y: F28Y	F28Y: 0.5	F28Y: VT/GN	F28Y: 439	F28Y: Run/Crank Ignition 1 Voltage	F28Y: I	F28Y: -
F28Y: F28Y	F28Y: 0.5	F28Y: VT/WH	F28Y: 3901	F28Y:	F28Y: I	F28Y: -
F28Y: F28Y	F28Y: 0.5	F28Y: VT/WH	F28Y: 1539	F28Y: Run/Crank Ignition 1 Voltage	F28Y: I	F28Y: -
F2Y: F2Y	F2Y: 0.5	F2Y: RD/BU	F2Y: 5240	F2Y: Battery Positive Voltage	F2Y: I	F2Y: -
F31X: F31X	F31X: 1.5	F31X: RD/VT	F31X: 3761	F31X: Infotainment Regulated Supply Voltage	F31X: I	F31X: -
F31Y: F31Y	F31Y: 0.35	F31Y: RD/BU	F31Y: 302	F31Y: Battery Positive Voltage	F31Y: I	F31Y: -
F32X: F32X	F32X: 1.5	F32X: RD/VT	F32X: 3761	F32X: Infotainment Regulated Supply Voltage	F32X: I	F32X: -
F32Y: F32Y	F32Y: 0.5	F32Y: RD/GY	F32Y: 642	F32Y: Battery Positive Voltage	F32Y: I	F32Y: -
F32Y: F32Y	F32Y: 0.5	F32Y: RD/GY	F32Y: 4202	F32Y:	F32Y: I	F32Y: -
F32Y: F32Y	F32Y: 0.5	F32Y: RD/WH	F32Y: 342	F32Y: Battery Positive Voltage	F32Y: I	F32Y: -
F32Y: F32Y	F32Y: 0.5	F32Y: RD/GY	F32Y: 4201	F32Y:	F32Y: I	F32Y: -
F32Y: F32Y	F32Y: 0.5	F32Y: RD/GY	F32Y: 4140	F32Y: Battery Positive Voltage	F32Y: I	F32Y: -
F33X: F33X	F33X: 1.5	F33X: RD/VT	F33X: 3761	F33X: Infotainment Regulated Supply Voltage	F33X: I	F33X: -
F33Y: F33Y	F33Y: 0.35	F33Y: RD/BN	F33Y: 702	F33Y: Battery Positive Voltage	F33Y: I	F33Y: -
F33Y: F33Y	F33Y: 0.35	F33Y: RD/YE	F33Y: 740	F33Y: Battery Positive Voltage	F33Y: I	F33Y: -
F33Y: F33Y	F33Y: 0.35	F33Y: RD/WH	F33Y: 1040	F33Y: Battery Positive Voltage	F33Y: I	F33Y: -
F33Y: F33Y	F33Y: 0.35	F33Y: RD/GY	F33Y: 1042	F33Y: Battery Positive Voltage	F33Y: I	F33Y: -
F34X: F34X	F34X: 1.5	F34X: GY/BN	F34X: 3761	F34X: Infotainment Regulated Supply Voltage	F34X: I	F34X: -
F34Y: F34Y	F34Y: 0.35	F34Y: RD/BU	F34Y: 4001	F34Y:	F34Y: I	F34Y: -
F34Y: F34Y	F34Y: 0.35	F34Y: RD/BU	F34Y: 840	F34Y: Battery Positive Voltage	F34Y: I	F34Y: -
F34Y: F34Y	F34Y: 0.35	F34Y: RD/VT	F34Y: 742	F34Y: Battery Positive Voltage	F34Y: I	F34Y: -
F34Y: F34Y	F34Y: 0.35	F34Y: RD/VT	F34Y: 4201	F34Y:	F34Y: I	F34Y: -
F3Y: F3Y	F3Y: 0.5	F3Y: RD/VT	F3Y: 5340	F3Y: Battery Positive Voltage	F3Y: I	F3Y: -
F4Y: F4Y	F4Y: 0.5	F4Y: RD/WH	F4Y: 5440	F4Y: Battery Positive Voltage	F4Y: I	F4Y: -
F5Y: F5Y	F5Y: 0.5	F5Y: RD/GY	F5Y: 5540	F5Y: Battery Positive Voltage	F5Y: I	F5Y: -
F6Y: F6Y	F6Y: 0.5	F6Y: RD/VT	F6Y: 5640	F6Y: Battery Positive Voltage	F6Y: I	F6Y: -
F7Y: F7Y	F7Y: 0.5	F7Y: RD/WH	F7Y: 5740	F7Y: Battery Positive Voltage	F7Y: I	F7Y: -
F8Y: F8Y	F8Y: 1.5	F8Y: RD/YE	F8Y: 5840	F8Y: Battery Positive Voltage	F8Y: I	F8Y: -
F9Y: F9Y	F9Y: 0.35	F9Y: RD/YE	F9Y: 5040	F9Y: Battery Positive Voltage	F9Y: I	F9Y: -
J3Y: J3Y	J3Y: 1.5	J3Y: RD/YE	J3Y: 6540	J3Y: Battery Positive Voltage	J3Y: I	J3Y: -
J3Y: J3Y	J3Y: 1.5	J3Y: RD/WH	J3Y: 6440	J3Y: Battery Positive Voltage	J3Y: I	J3Y: -
J4Y: J4Y	J4Y: 1.5	J4Y: RD/BN	J4Y: 6640	J4Y: Battery Positive Voltage	J4Y: I	J4Y: -
J4Y: J4Y	J4Y: 1.5	J4Y: RD/BU	J4Y: 6740	J4Y: Battery Positive Voltage	J4Y: I	J4Y: -
J5Y: J5Y	J5Y: 1.5	J5Y: RD/GN	J5Y: 6140	J5Y: Battery Positive Voltage	J5Y: I	J5Y: -
M1Y: M1Y	M1Y: 6	M1Y: RD/WH	M1Y: 640	M1Y: Battery Positive Voltage	M1Y: I	M1Y: -
R1_1: R1_1	R1_1: 0.5	R1_1: BK/BK	R1_1: 1550	R1_1: Ground	R1_1: I	R1_1: -
R1_2: R1_2	R1_2: 0.35	R1_2: GY/VT	R1_2: 755	R1_2: RAP Relay Coil Control	R1_2: I	R1_2: -
R1_3: R1_3	R1_3: 0.5	R1_3: -	R1_3: -	R1_3: Battery Positive Voltage	R1_3: I	R1_3: -
R1_5: R1_5	R1_5: 0.5	R1_5: -	R1_5: -	R1_5: RAP	R1_5: I	R1_5: -
R2_1: R2_1	R2_1: 0.5	R2_1: YE/YE	R2_1: 5704	R2_1: Endgate Latch Relay Coil Control	R2_1: I	R2_1: -
R2_2: R2_2	R2_2: 0.5	R2_2: GN/BN	R2_2: 5706	R2_2: Endgate Latch Relay Supply Voltage	R2_2: I	R2_2: -
R2_3: R2_3	R2_3: 0.5	R2_3: RD/GY	R2_3: 3540	R2_3: Battery Positive Voltage	R2_3: I	R2_3: -
R2_5: R2_5	R2_5: 0.5	R2_5: BU/WH	R2_5: 6128	R2_5: Rear Closure Unlatch Motor Unlatch Control	R2_5: I	R2_5: -
R4_1: R4_1	R4_1: 0.5	R4_1: BK	R4_1: 1550	R4_1: Ground	R4_1: I	R4_1: -
R4_2: R4_2	R4_2: 0.5	R4_2: BR/VT	R4_2: 5486	R4_2: Blower Motor Relay Coil Control	R4_2: I	R4_2: -
R4_3: R4_3	R4_3: 0.5	R4_3: RD/LG	R4_3: 3540	R4_3: Battery Positive Voltage	R4_3: I	R4_3: -
R4_5: R4_5	R4_5: 0.5	R4_5: VT/BR	R4_5: 341	R4_5: Blower Motor Supply Voltage	R4_5: I	R4_5: -
R5_1: R5_1	R5_1: 0.35	R5_1: GY/VT	R5_1: 3264	R5_1: Logistic Mode Relay Close Control	R5_1: I	R5_1: -
R5_2: R5_2	R5_2: 0.35	R5_2: VT/BU	R5_2: 3263	R5_2: Logistic Mode Relay Open Control	R5_2: I	R5_2: -
R5_3: R5_3	R5_3: 1.5	R5_3: RD/GN	R5_3: 6140	R5_3: Battery Positive Voltage	R5_3: I	R5_3: -
R5_5: R5_5	R5_5: 1.5	R5_5: RD/VT	R5_5: 542	R5_5: Battery Positive Voltage	R5_5: I	R5_5: -
R5_6: R5_6	R5_6: 0.5	R5_6: BK/BK	R5_6: 1550	R5_6: Ground	R5_6: I	R5_6: -
