Section 96 (Object Detection System And Pedestrian Protection System)
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics (Trax)
>>
Rear Park Assist (Trax with UD7)
Rear Park Assist (Trax with UD7)
WARNING:
This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

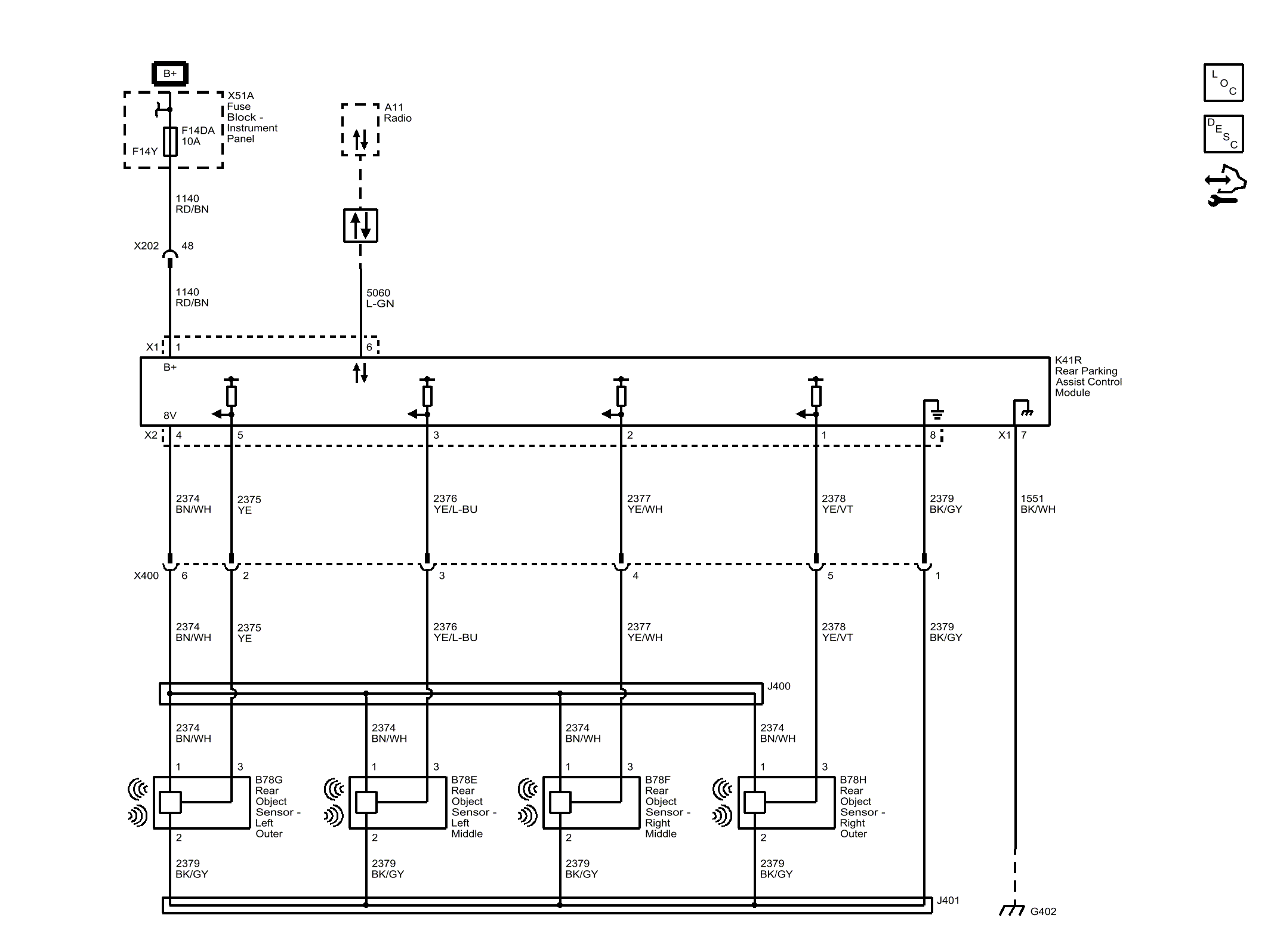

Fig 1: Rear Park Assist (Trax with UD7)
Courtesy of GENERAL MOTORS COMPANY
