Section 88 (Power Door Lock System And Release Systems)
>>
Schematic Wiring Diagrams
>>
Release Systems Wiring Schematics (Trax)
>>
Liftgate Release (Trax)
Liftgate Release (Trax)
WARNING:
This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

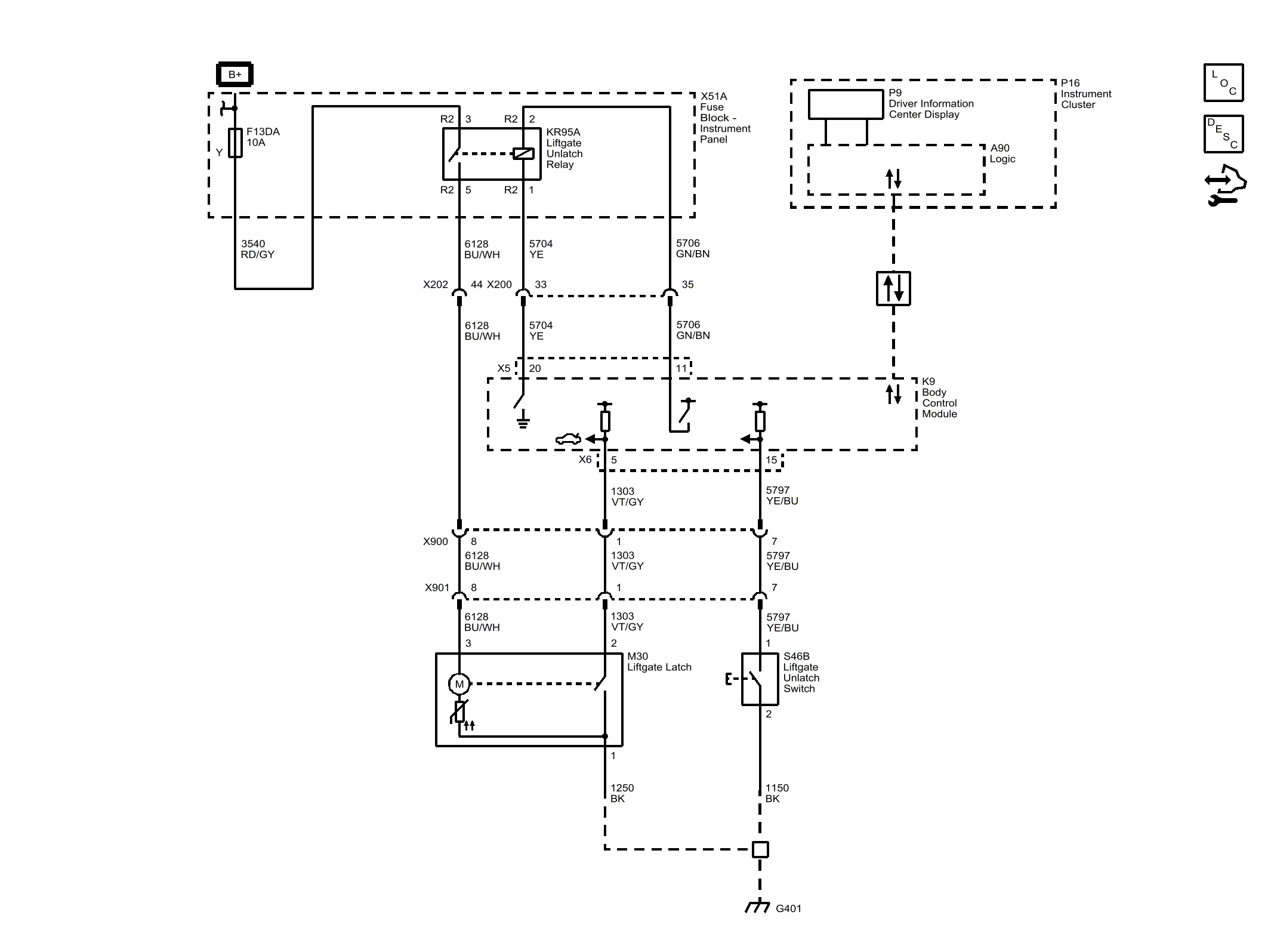

Fig 1: Liftgate Release (Trax)
Courtesy of GENERAL MOTORS COMPANY
