Instrument Panel Trim Plate Replacement (Encore)
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

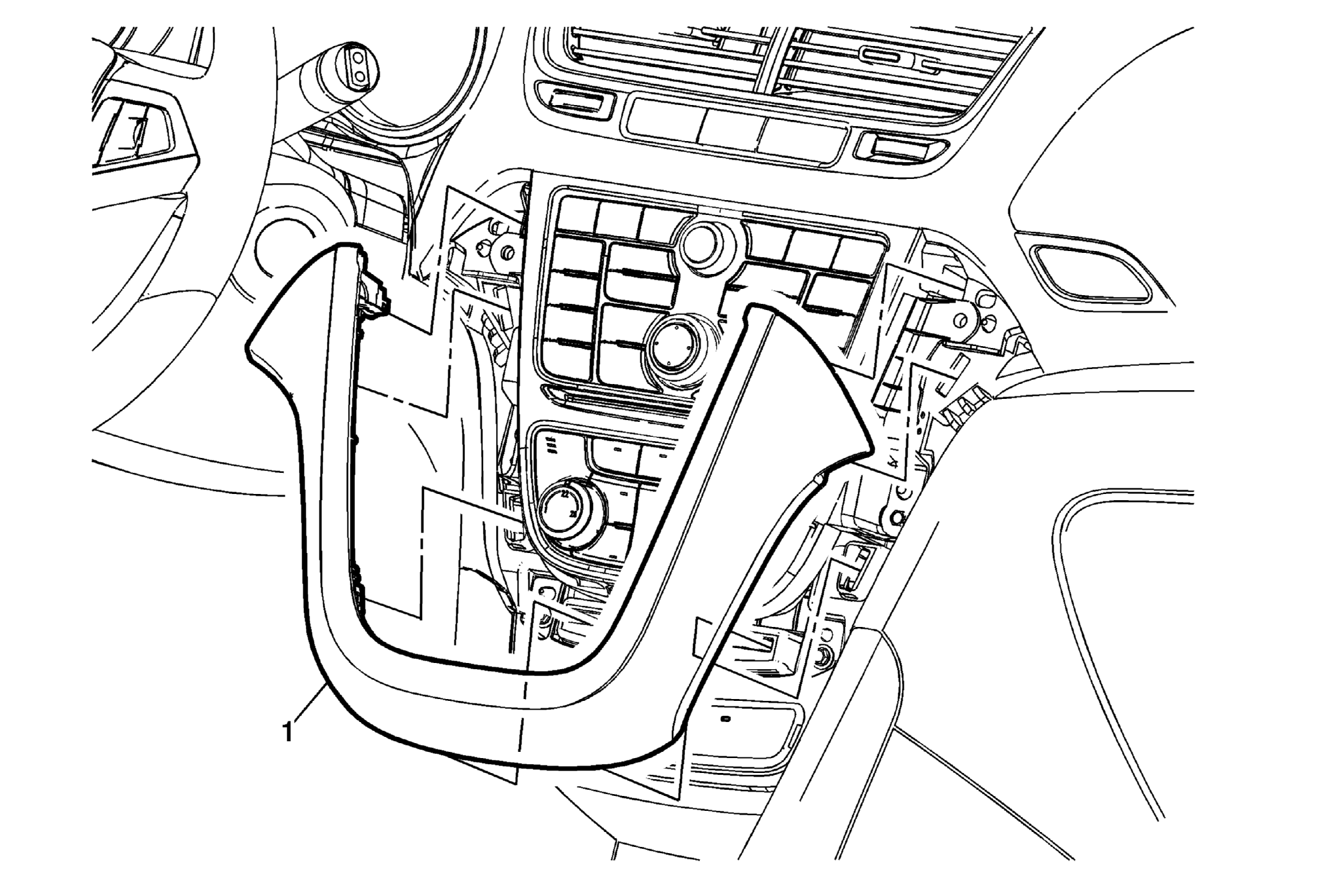

| Callout |
Component Name |
| 1 |
Instrument Panel Trim Plate Procedures
- Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the instrument panel assembly.
- Disconnect the electrical connection.
|
