Windshield Header Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

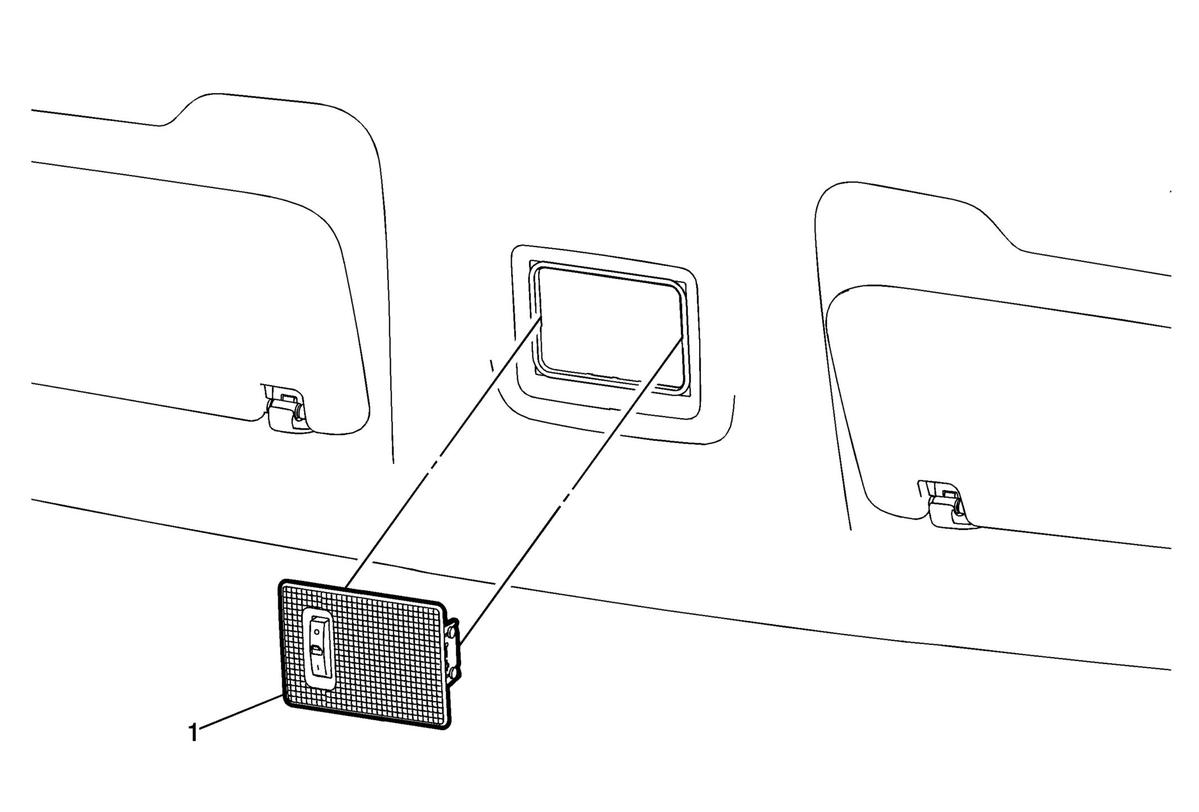

| Callout |
Component Name |
| 1 |
Windshield Header Courtesy Lamp Procedures
- Grasp the courtesy lamp assembly and pull downward to release the retainer clips securing the courtesy lamp assembly to the headliner.
- Disconnect the electrical connections.
|
