Front Fog Lamp Replacement (Encore)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

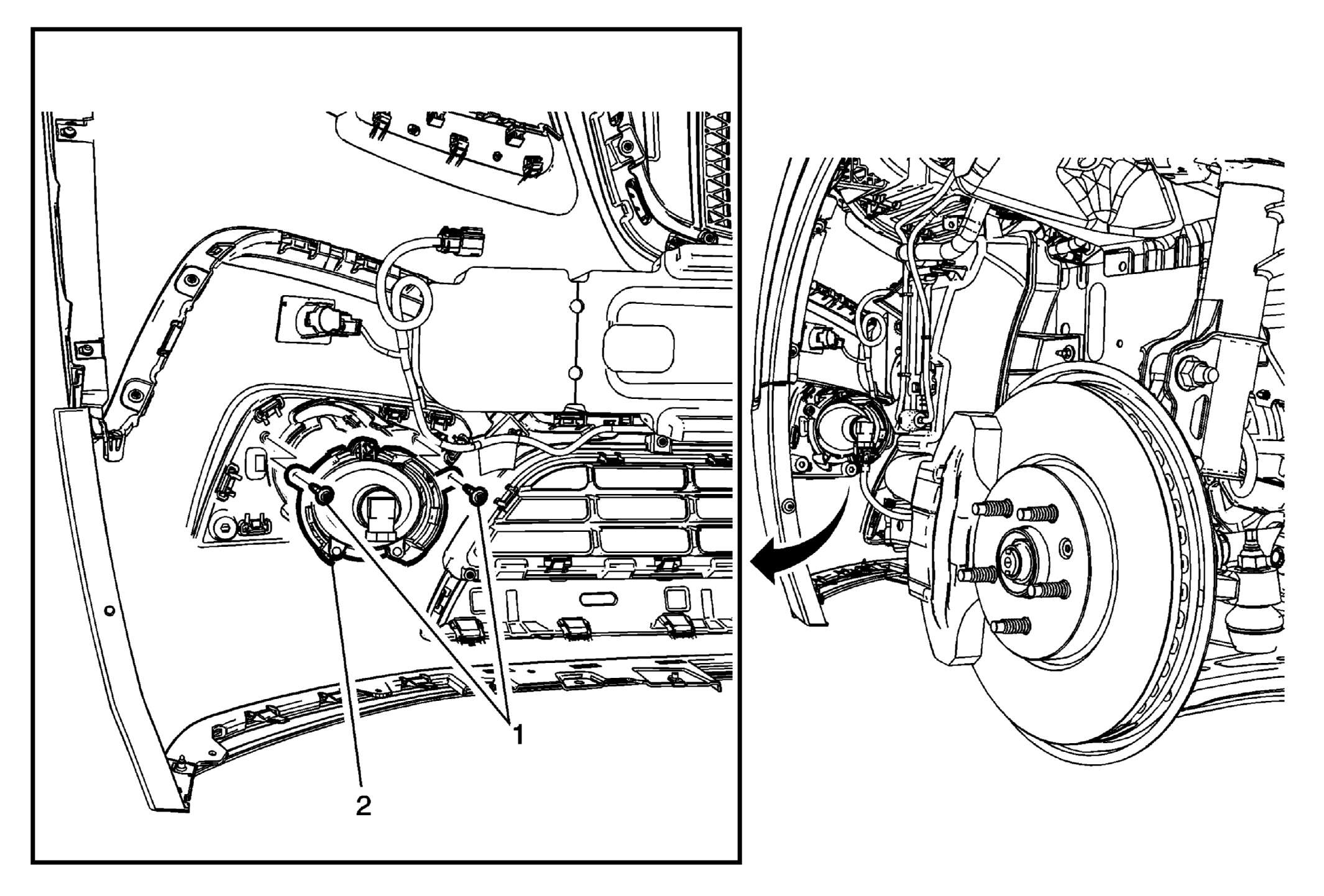

Fig 1: Front Fog Lamp (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure Remove either the right front or left front wheelhouse liner. Refer to. Front Wheelhouse Liner Replacement (Encore) Disconnect the electrical connector from the fog lamp bulb socket.
1	Front Fog Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Fog Lamp Procedure Release the four locking tabs on the front bumper lower fascia and pull the front fog lamp rearward. Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming .

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedure

Remove either the right front or left front wheelhouse liner. Refer to. Front Wheelhouse Liner Replacement (Encore)
Disconnect the electrical connector from the fog lamp bulb socket.

Front Fog Lamp Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Fog Lamp

Procedure

Release the four locking tabs on the front bumper lower fascia and pull the front fog lamp rearward.
Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming .
