Removal Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

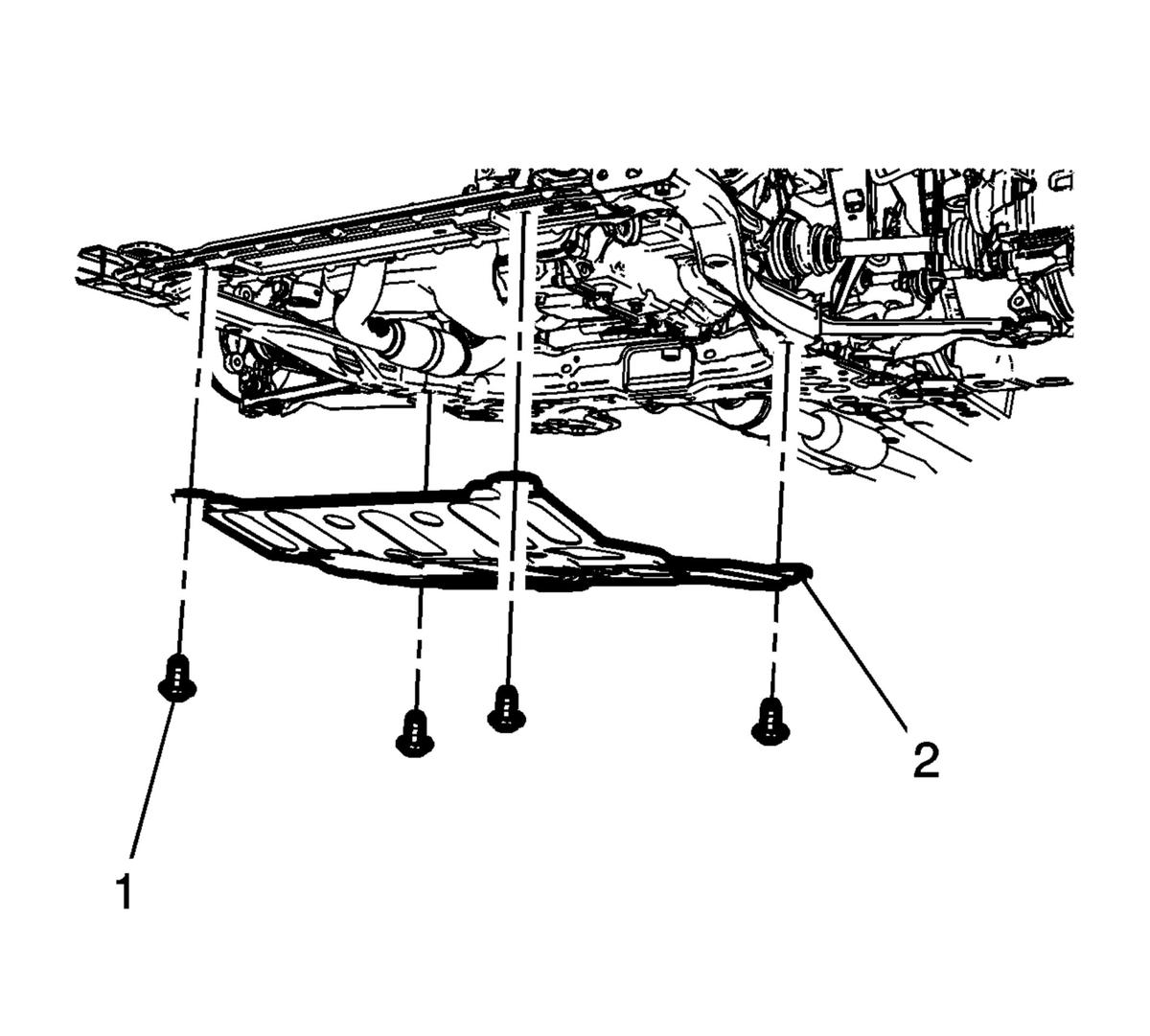

    2. Fig 1: Front Suspension Skid Plate & Bolts
    GM2508614Courtesy of GENERAL MOTORS COMPANY
  2. Remove the mounting bolts (1) for the front suspension frame transmission protector.
  3. Remove the front suspension frame transmission protector (2).
