Section 49 (Keyless Entry System And Remote Functions)
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics (Trax)
>>
Keyless Entry (Trax)
Keyless Entry (Trax)
WARNING:
This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

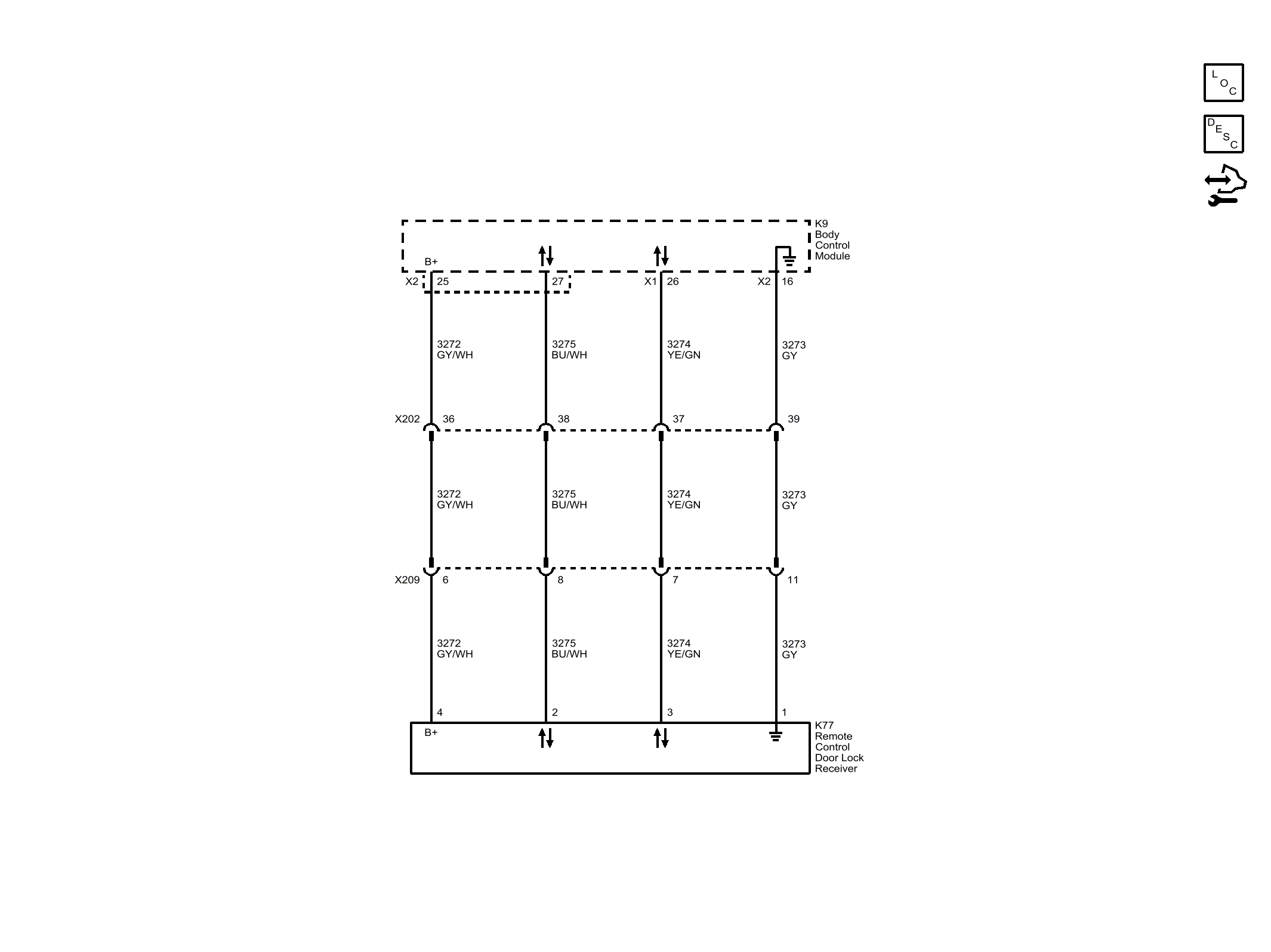

Fig 1: Keyless Entry (Trax)
Courtesy of GENERAL MOTORS COMPANY
