Ignition and Start Switch Replacement (Encore)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

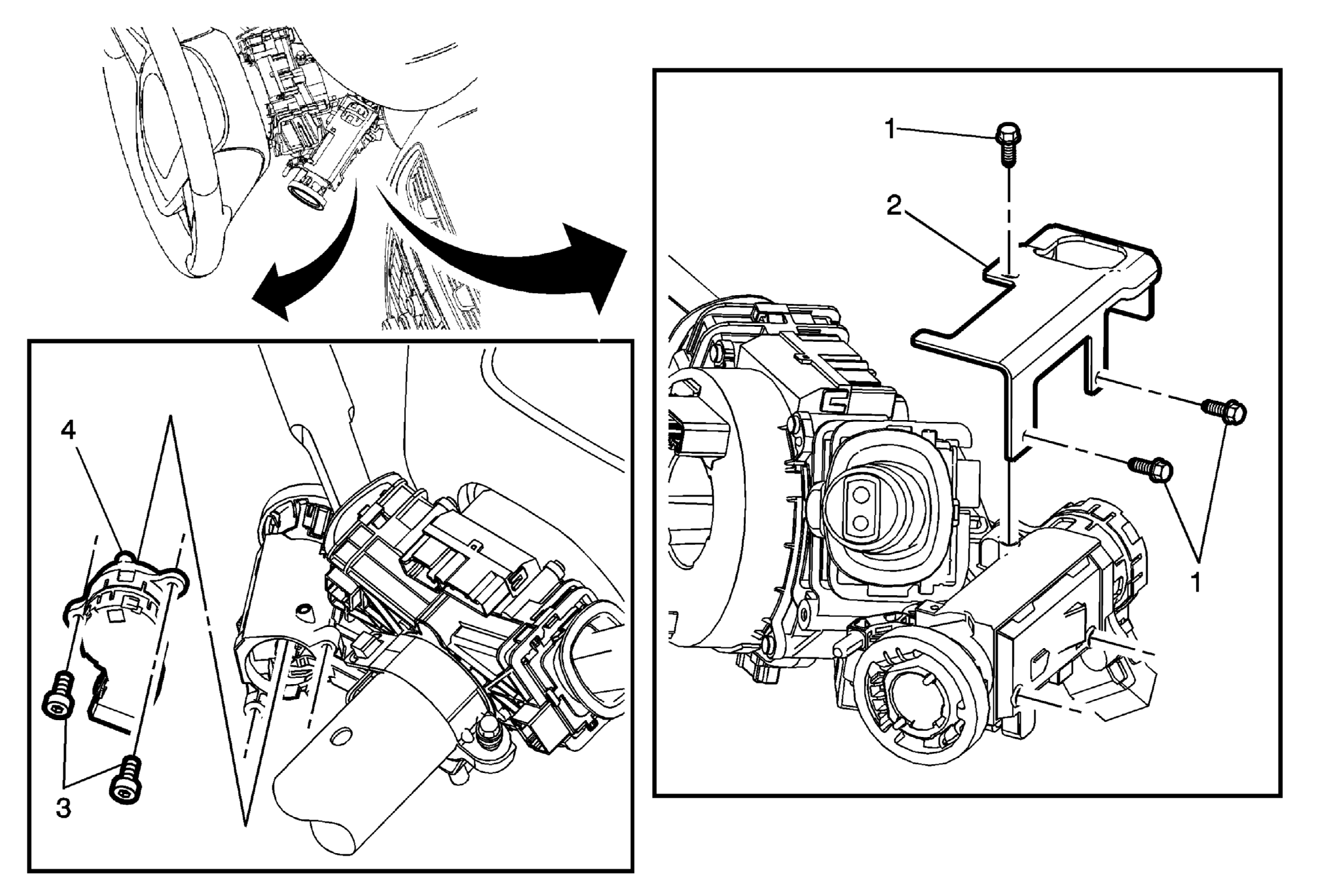

Fig 1: Ignition And Start Switch (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) SIR Disabling and Enabling Steering Column Lower Trim Cover Replacement (Encore)
1	Theft Deterrent Plate Fastener <p01> CAUTION: Refer to Fastener Caution . NOTE: Some markets may NOT be equipped with a theft deterrent plate.
2	Theft Deterrent Plate NOTE: Some markets may NOT be equipped with a theft deterrent plate.
3	Ignition and Start Switch Bolt<p01>
4	Ignition and Start Switch Procedure Disconnect the electrical connector.
