Evaporative Emission System Hose/Pipe Replacement (Fuel Pump Module To Vent Pipe AWD)
Evaporative Emission System Hose/Pipe Replacement (Fuel Pump Module to Vent Pipe AWD)
| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement (FWD)
or Fuel Tank Replacement (AWD)
.Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. |
|

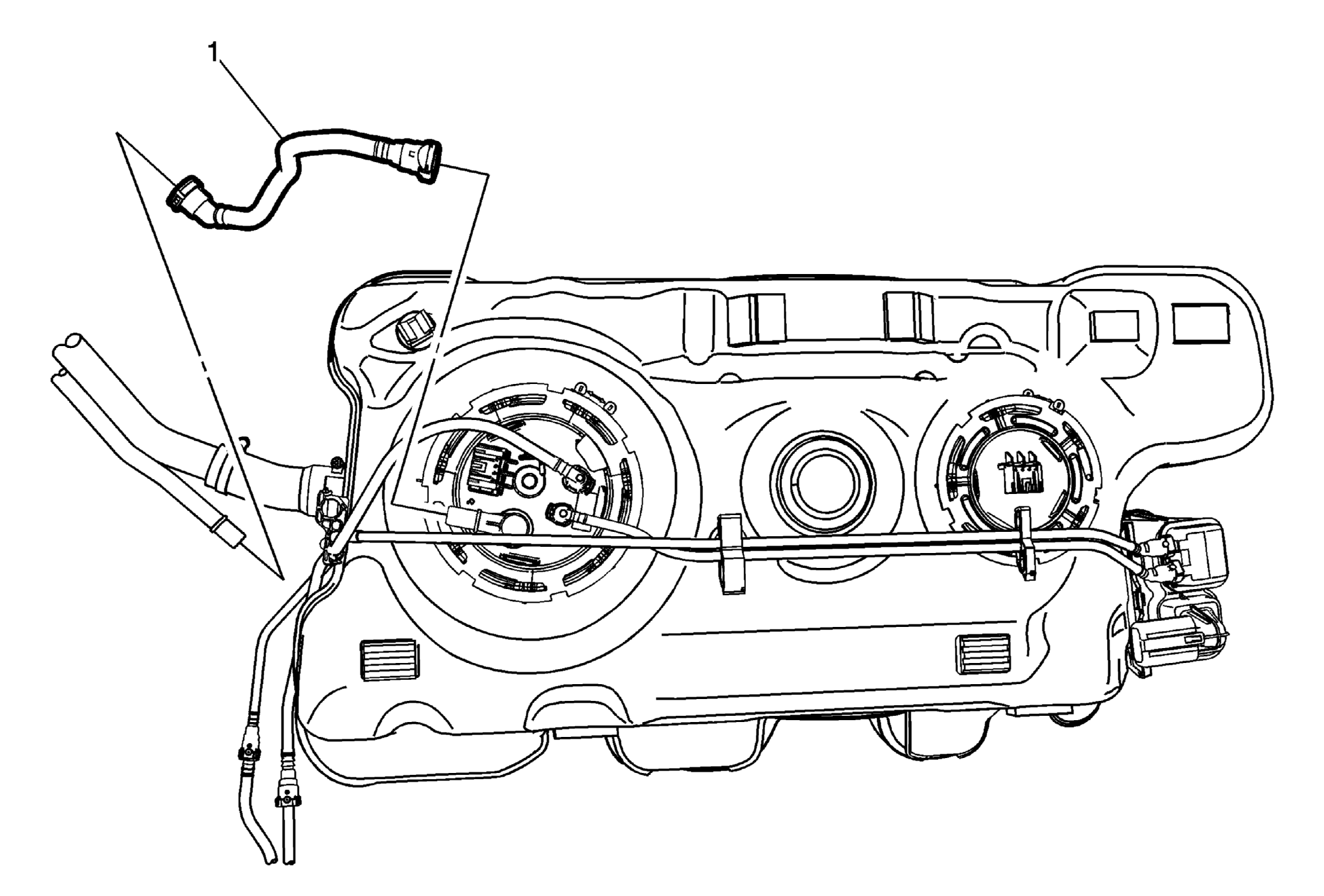

| 1 | Evaporative Emission Pipe Procedure Disconnect the quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service . |
