Manifold Absolute Pressure Sensor Replacement

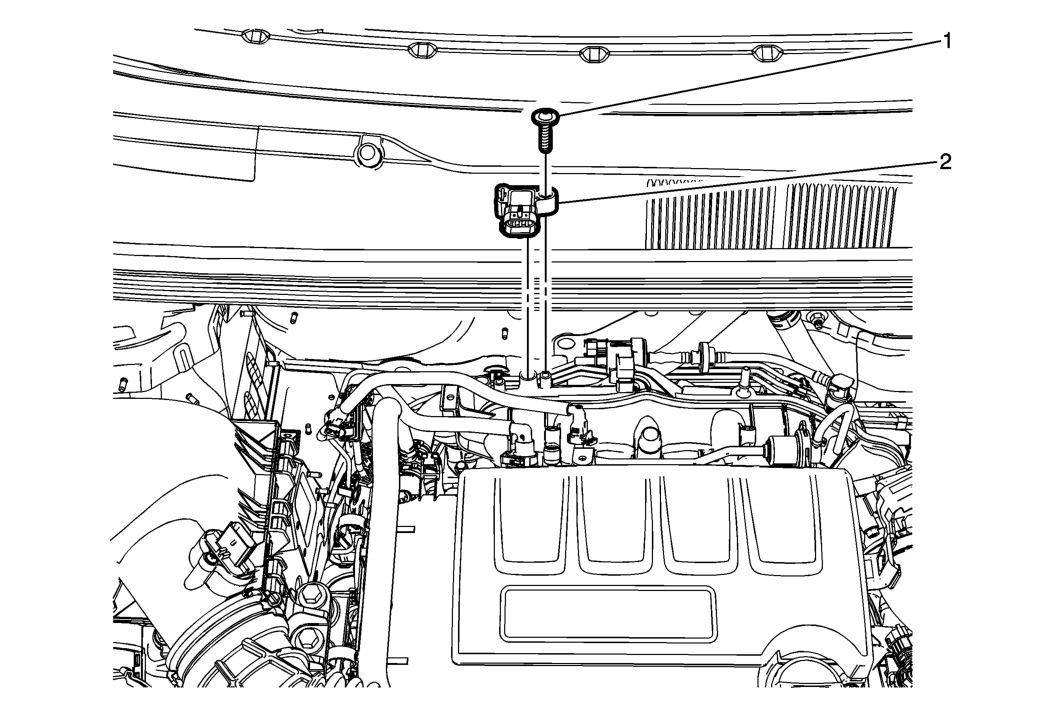

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Manifold Absolute Pressure Sensor Replacement

Callout	Component Name
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 (89 lb in)
2	Manifold Absolute Pressure Sensor Procedure  Disconnect the manifold absolute pressure sensor electrical connector.
