Fuel Pressure Sensor Replacement - Fuel Feed Pipe

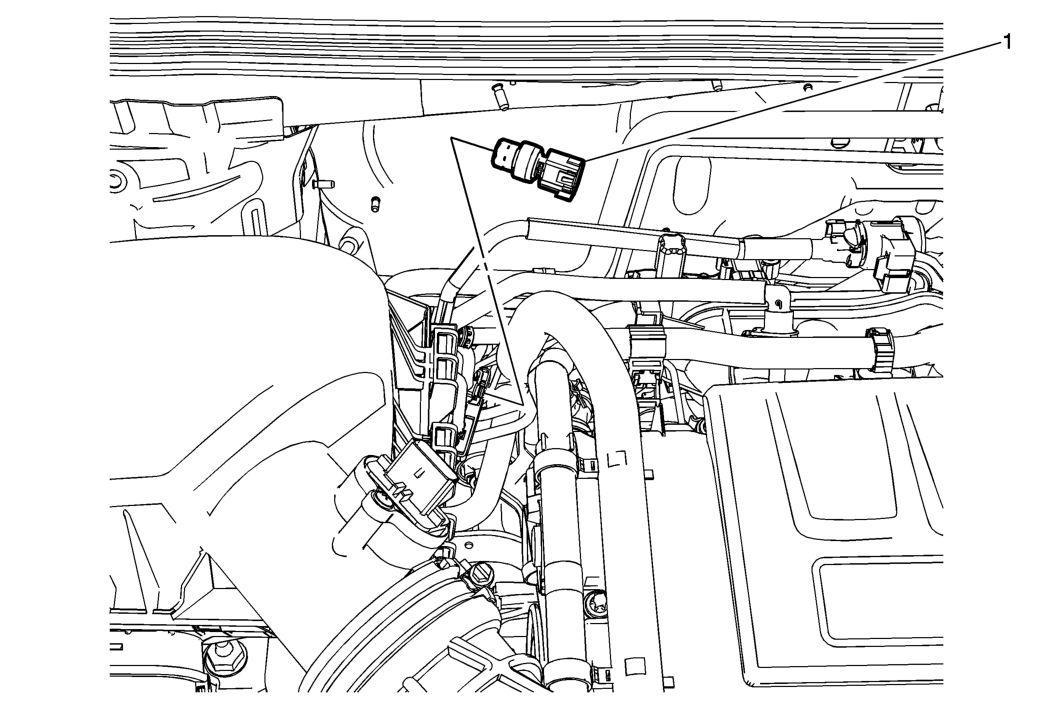

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. Preliminary Procedures Relive the fuel pressure. Refer to Fuel Pressure Relief .
1	Fuel Pressure Sensor Procedure Disconnect the electrical connector.
