Removal Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove engine cover. Refer to Engine Cover Replacement .
  3. Remove the fuel feed pipe from fuel injection fuel rail. Refer to Fuel Feed Pipe Replacement (Engine To Tank) , Fuel Feed Pipe Replacement (At Tank AWD)  and Fuel Feed Pipe Replacement (At Tank FWD) .
  4. Remove the positive crankcase ventilation pipe from the intake manifold. Refer to Positive Crankcase Ventilation Pipe Removal .

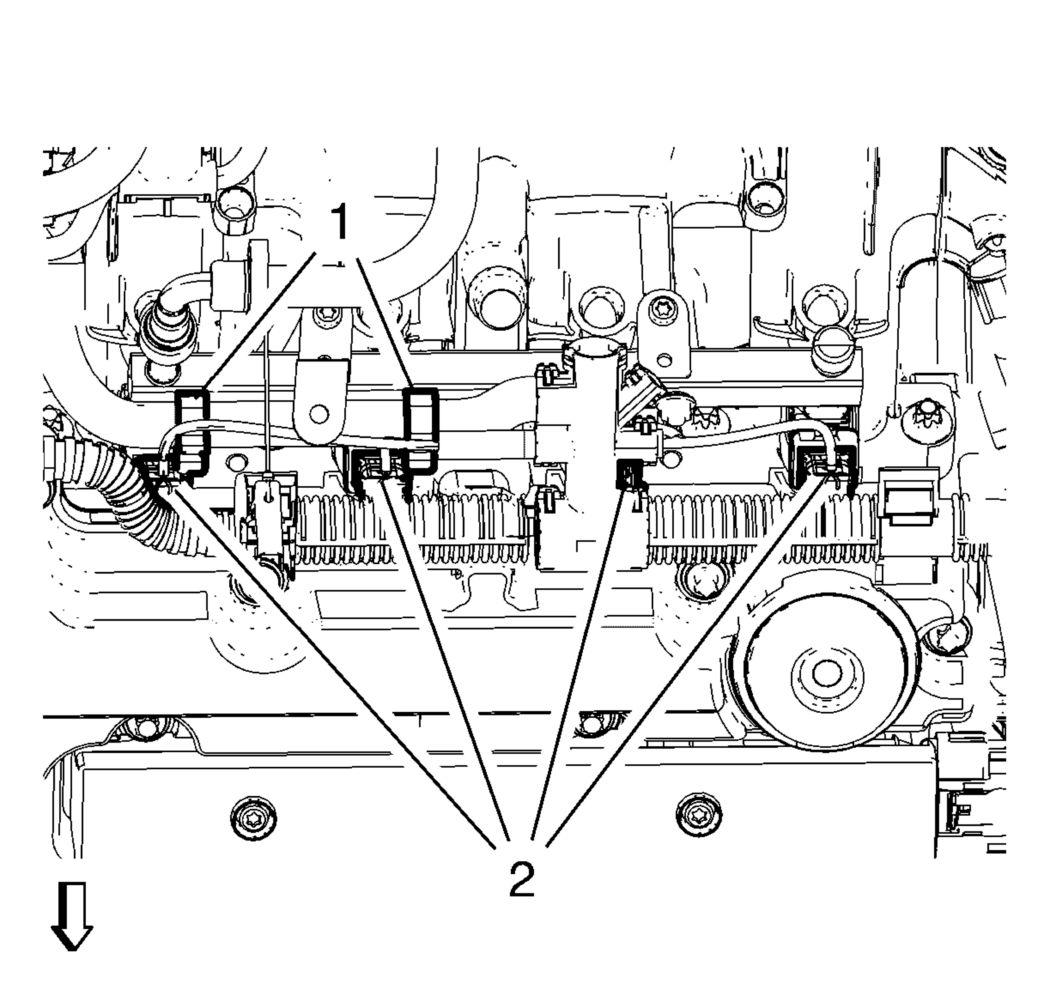

    5. Fig 1: Fuel Injector Wiring Harness Plugs
    GM2373064Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the 4 fuel injector wiring harness plugs (2).
  6. Unclip the ECM wiring harness from retainer clips (1) and the camshaft cover.

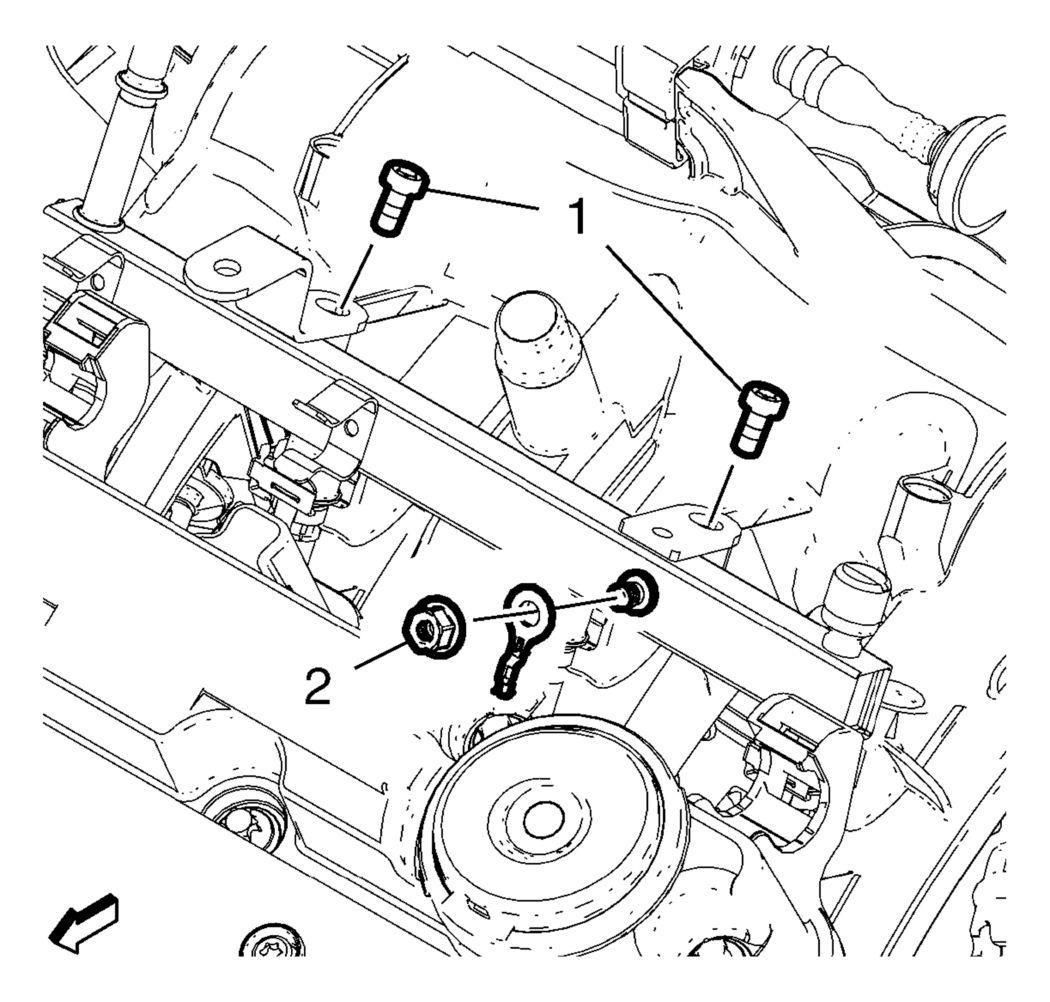

    7. Fig 2: Fuel Injection Fuel Rail Bolts And Ground Cable Nut
    GM2373065Courtesy of GENERAL MOTORS COMPANY
  7. Remove the ground cable nut (2) and the ground cable.
  8. Remove the 2 fuel injection fuel rail bolts (1).

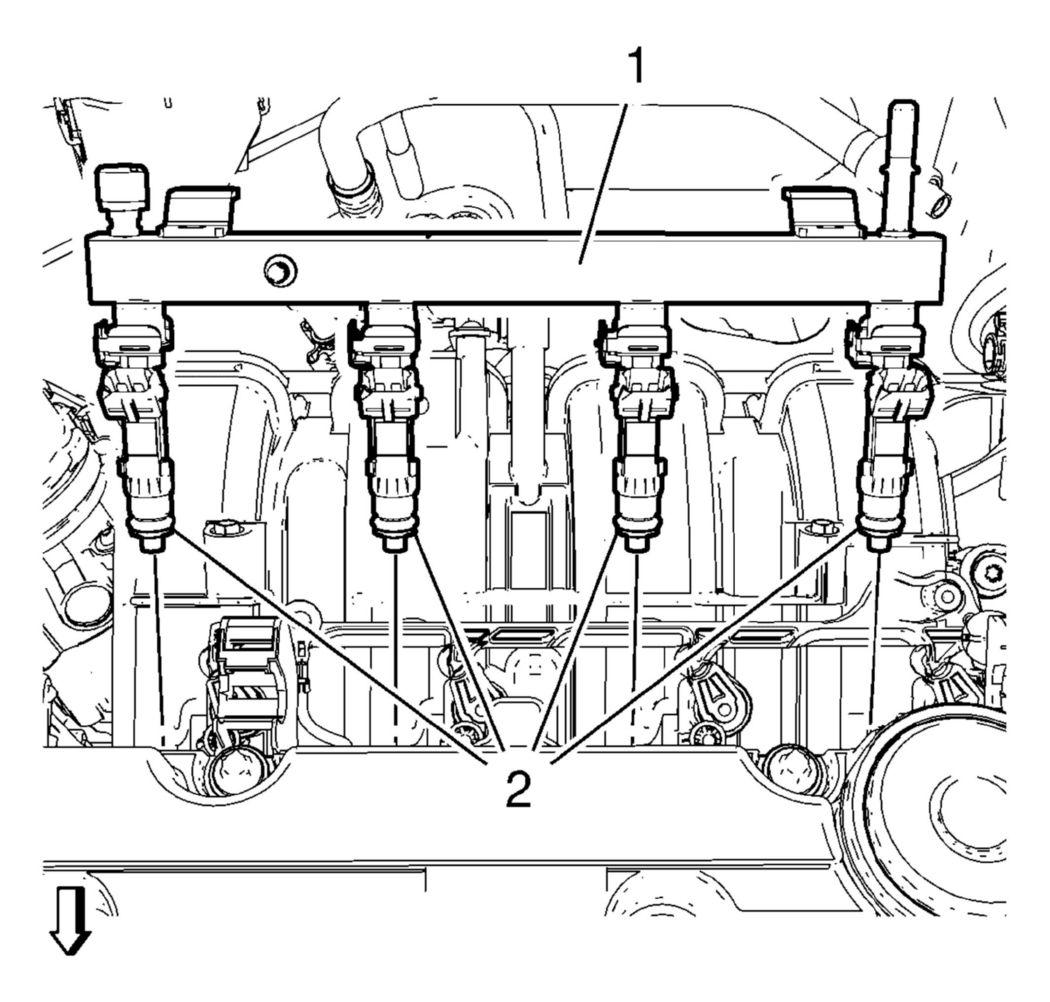

    9. Fig 3: Fuel Injection Fuel Rail Assembly
    GM2191817Courtesy of GENERAL MOTORS COMPANY
  9. Remove the fuel injection fuel rail assembly (1) and the 4 fuel injector seal rings (2).
