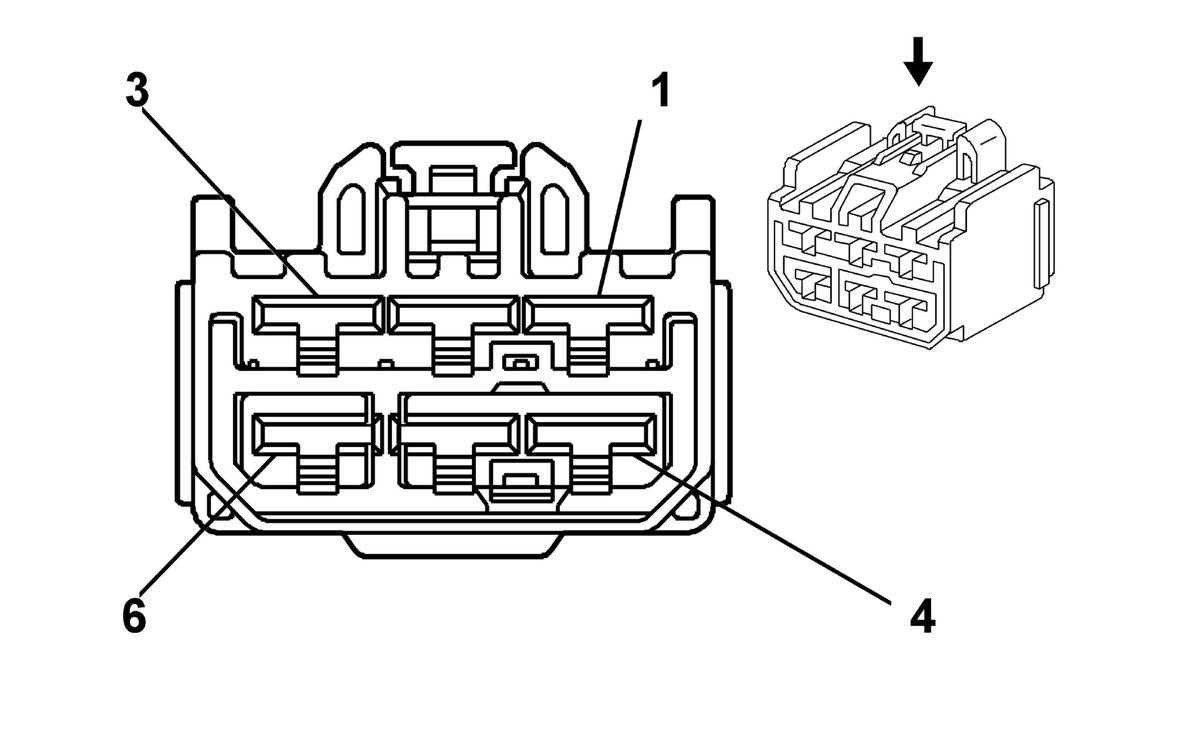

K33 HVAC Control Module X1 (C41/C60)
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7283-5591-40
- Service Connector: 88988410
- Description: 6-Way F YESC/USCAR Class III Series (L-GY)
|
Terminal Part Information
- Pins: 1, 2, 4
- Terminated Lead: 13575835
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-42 (RD)
- Pins: 3
- Terminated Lead: 13578928
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-42 (RD)
- Pins: 5, 6
- Terminated Lead: 13575833
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-42 (RD)
|
K33 HVAC CONTROL MODULE X1 (C41/C60)
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
3.0 |
BK |
1250 |
Ground |
- |
| 2 |
2.5 |
BU/YE |
72 |
Medium 2 Blower Motor Control |
- |
| 3 |
1.5 |
YE/BN |
63 |
Medium Blower Motor Control |
- |
| 4 |
3.0 |
WH/BK |
52 |
High Blower Motor Control |
- |
| 5 |
0.5 |
GN/BU |
761 |
Blower Speed Feedback Signal |
- |
| 6 |
1.0 |
BK |
60 |
Low Blower Motor Control |
- |
