Active Noise Cancellation (CGU/CGW)
Active Noise Cancellation (CGU/CGW)

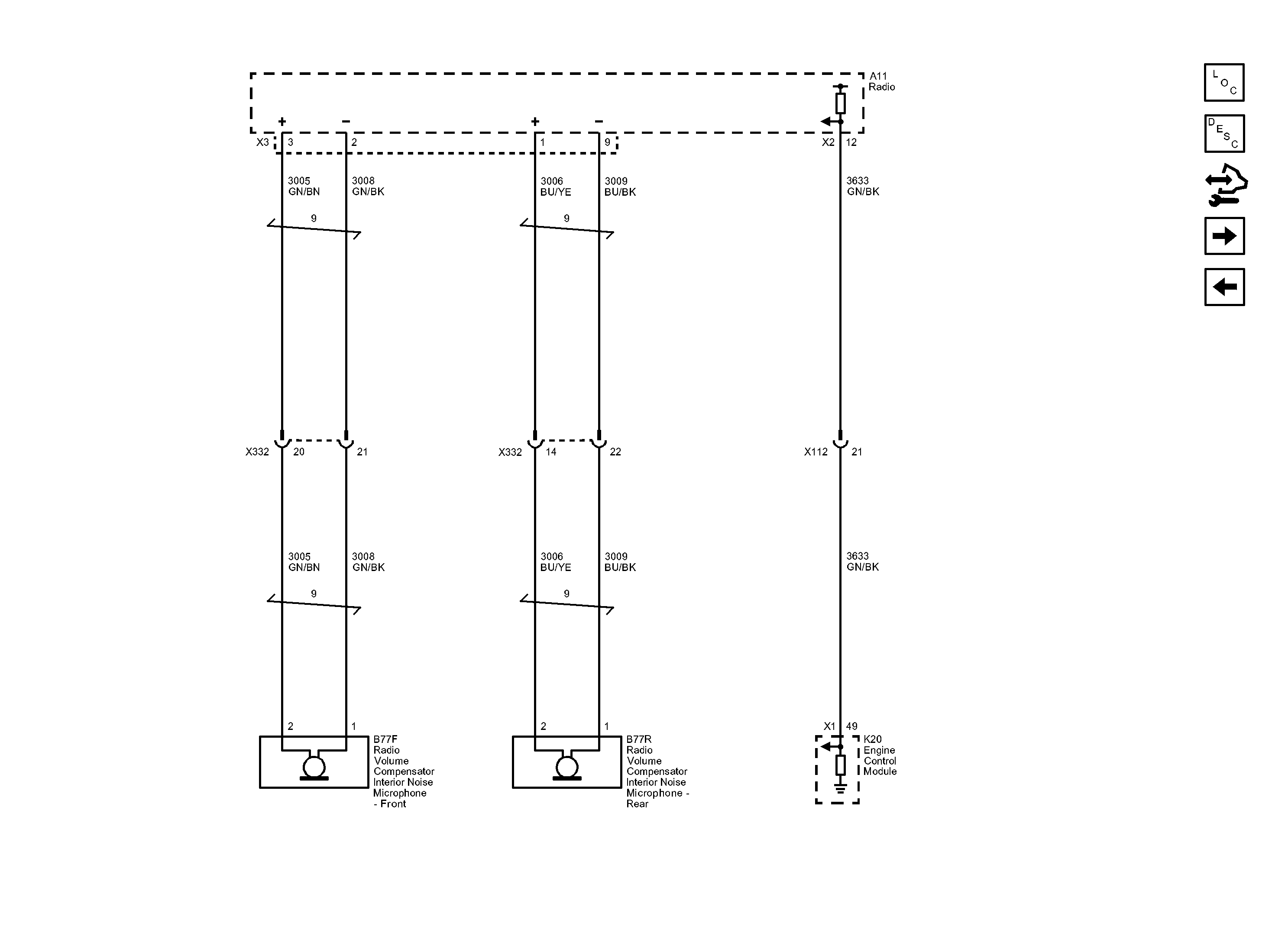

Fig 1: Active Noise Cancellation (CGU/CGW) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
