5th / 6th Gear Synchronizer

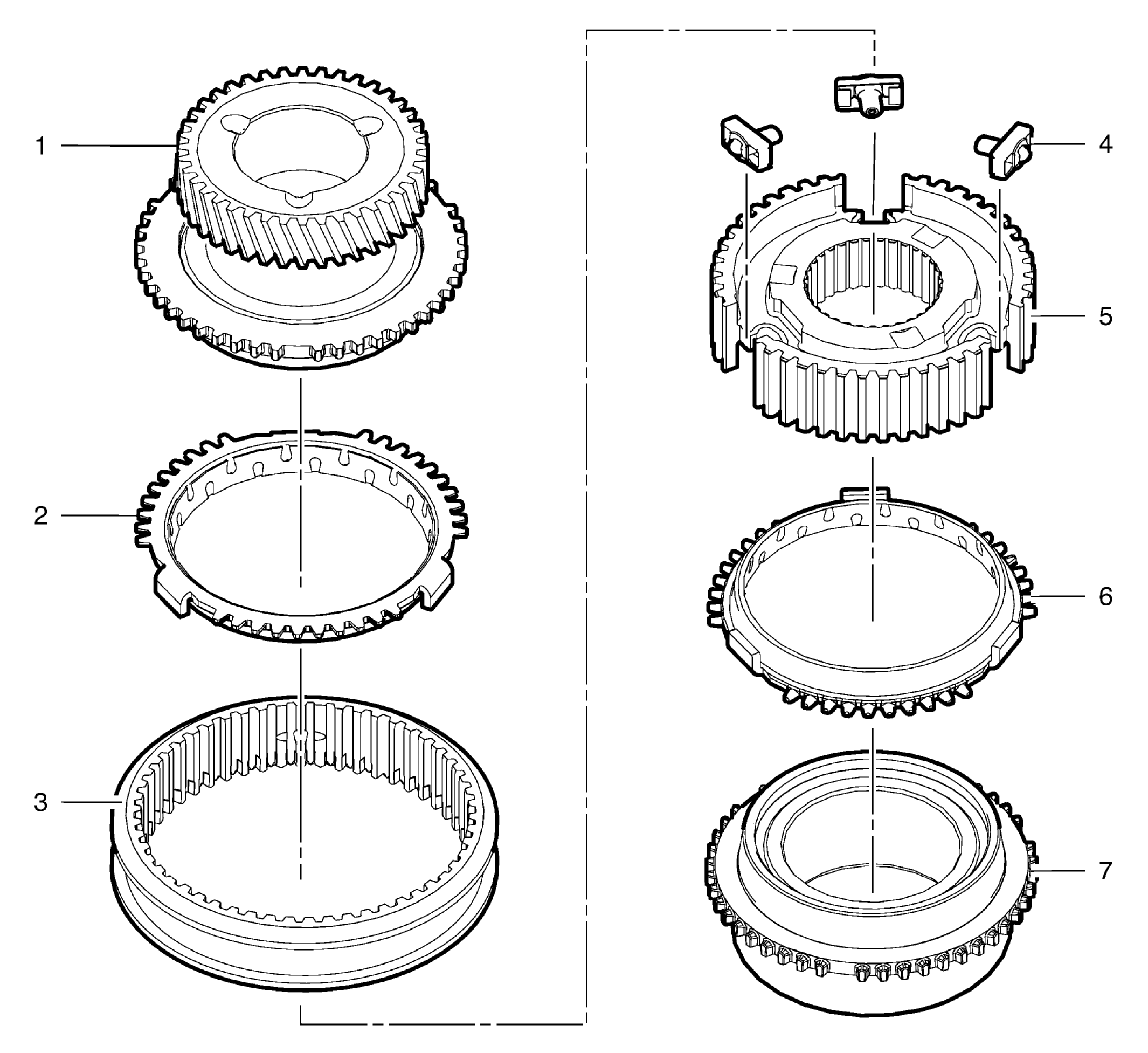

Fig 1: 5th/6th Gear Synchronizer
GM2791274Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 6th Gear Gearwheel
2 6th Gear Synchronizer Ring
3 5th/6th Gear Selector Sleeve
4 Spring Catches
5 5th/6th Gear Sleeve Carrier
6 5th Gear Synchronizer Ring
7 5th Gear Gearwheel
