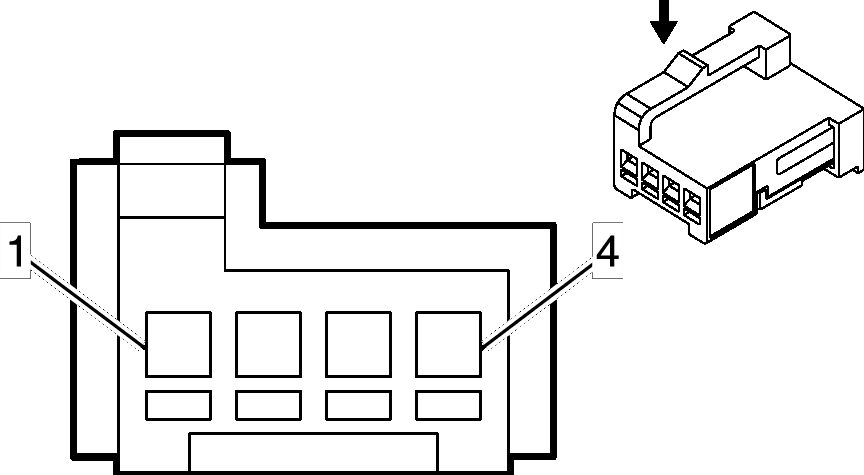

S75 Traction Control Switch
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 15344959
- Service Connector: 13580967
- Description: 4-Way F 0.64 MTS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575549 |
J-38125-559 |
J-35616-16 (L-GN) |
15445905 |
8 |
J |
J |
S75 Traction Control Switch
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Used |
I |
- |
| 2 |
0.35 |
BU/VT |
1788 |
Traction Control Switch Signal |
I |
FX3 |
| 3 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
FX3 |
| 4 |
0.35 |
BK |
750 |
Ground |
I |
FX3 |
