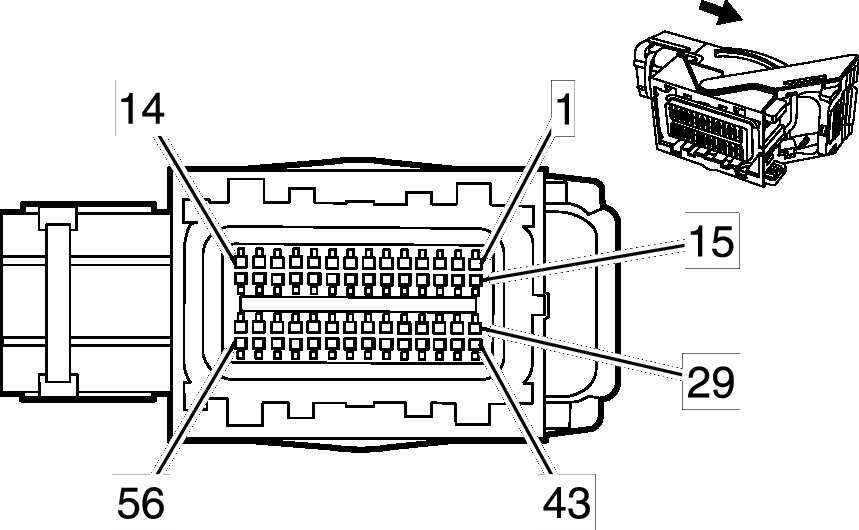

K20 Engine Control Module X1 (2H0 with MFH/M7Y/MZ4)

Connector Part Information Harness Type: Engine OEM Connector: PPI0001003 Service Connector: 13395415 Description: 56-Way F 0.64 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Pending	Pending	Pending

K20 Engine Control Module X1 (2H0 with MFH/M7Y/MZ4)

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	BN/WH	419	Check Engine Indicator Control	I	2H0
2	0.5	GN/GY	465	Fuel Pump Primary Relay Control	I	2H0
3	0.75	VT/BU	5290	Powertrain Main Relay Fused Supply (1)	I	2H0
4	0.5	WH/GY	459	A/C Compressor Clutch Relay Control	I	2H0
5	0.5	WH/RD	1164	Accelerator Pedal Position 5 Volt Reference (1)	I	2H0
6-9	-	-	-	Not Used	-	-
10	0.5	BU/BU	2500	High Speed GMLAN Serial Data (+) (1)	I	2H0
11	0.5	WH/WH	2501	High Speed GMLAN Serial Data (-) (1)	I	2H0
12	0.75	RD/WH	140	Battery Positive Voltage	I	2H0
13	-	-	-	Not Used	-	-
14	0.5	VT/GY	139	Run/Crank Ignition 1 Voltage	I	2H0
15	0.5	BN/YE	473	High Speed Cooling Fan Relay Control	I	2H0
16	0.5	YE/YE	5991	Powertrain Relay Coil Control	I	2H0
17-18	-	-	-	Not Used	-	-
19	0.5	BN/RD	1274	Accelerator Pedal Position 5 Volt Reference (2)	I	2H0
20	0.5	BK/BU	1271	Accelerator Pedal Position Low Reference (1)	I	2H0
21	0.5	BK/VT	1272	Accelerator Pedal Position Low Reference (2)	I	2H0
22	-	-	-	Not Used	-	-
23	0.5	BK/GY	6110	Clutch Apply Sensor Low Reference	I	2H0
24	0.5	BK/VT	2760	Intake Air Temperature Sensor Low Reference	I	2H0
25	0.5	WH/BU	6311	Cruise/ETC/TCC Brake Signal	I	2H0
26	-	-	-	Not Used	-	-
27	0.5	GN/GN	6111	Clutch Apply Sensor Signal	I	2H0
28	0.5	GN/WH	5007	Reverse Switch Signal	I	2H0
29	0.5	YE/BK	625	Starter Enable Relay Control	I	2H0
30-31	-	-	-	Not Used	-	-
32	0.5	GY/RD	6109	Clutch Apply Sensor Voltage Reference	I	2H0
33	0.5	BN/RD	2700	A/C Pressure Sensor 5 Volt Reference	I	2H0
34-35	-	-	-	Not Used	-	-
36	0.5	VT/YE	5985	Accessory Wakeup Serial Data	I	2H0
37	-	-	-	Not Used	-	-
38	0.5	BK/GN	6281	Fuel Level Sensor Low Reference	I	2H0
39	-	-	-	Not Used	-	-
40	0.5	YE/WH	1161	Accelerator Pedal Position Signal (1)	I	2H0
41	0.5	GN/GN	380	A/C Refrigerant Pressure Sensor Signal	I	2H0
42	0.5	GN/WH	1162	Accelerator Pedal Position Signal (2)	I	2H0
43	0.5	BU/BU	6814	Thermostat Engine Cool Control	I	2H0
44	0.5	GN/VT	335	Low Speed Cooling Fan Relay Control	I	2H0
45	0.5	BK/BN	5514	A/C Refrigerant Pressure Sensor Low Reference	I	2H0
46	0.5	BK/BU	6813	Coolant Temperature Sensor #2 Low Reference	I	2H0
47-49	-	-	-	Not Used	-	-
50	0.5	GY/BU	48	Clutch Pedal Position Switch Anticipate Signal	I	2H0
51	0.5	GN/WH	492	Mass Air Flow Sensor Signal	I	2H0
52	0.5	BU/VT	1589	Primary Fuel Level Sensor Signal	I	2H0
53	0.5	GN/VT	2032	Coolant Temperature Sensor Signal	I	2H0
54	0.5	WH/BU	6289	Induction Air Temperature Sensor Signal	I	2H0
55-56	-	-	-	Not Used	-	-
