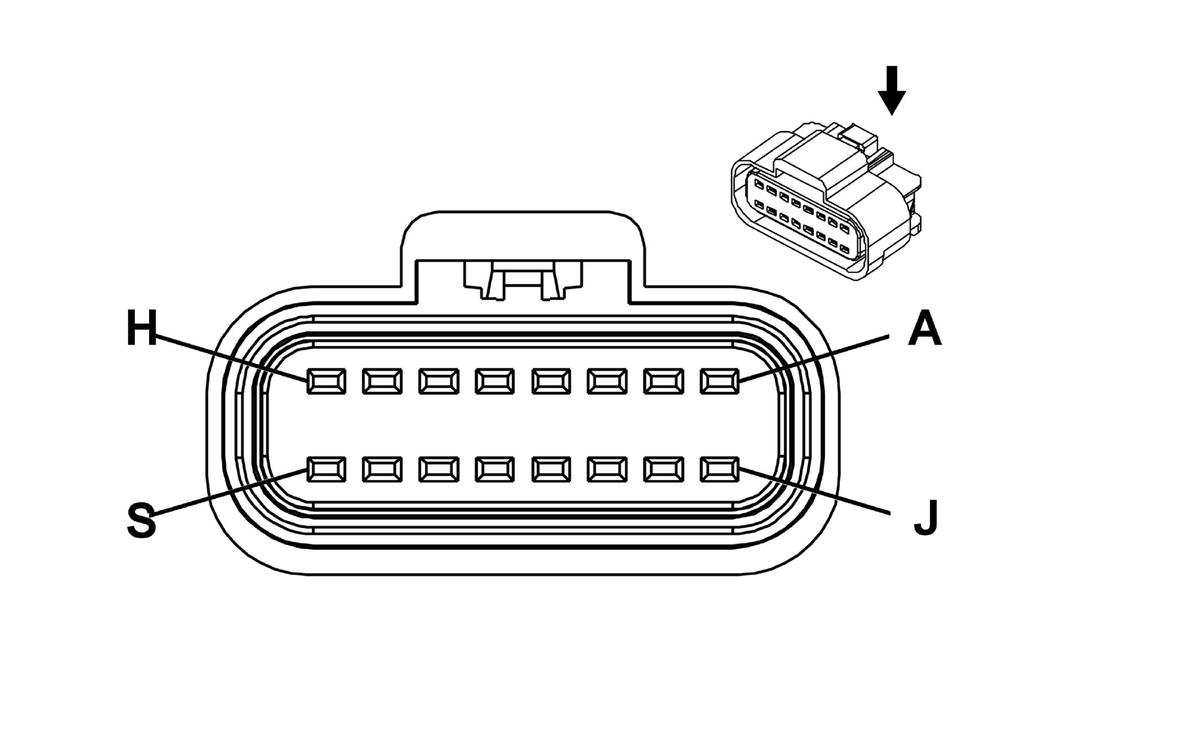

K47 Rear Differential Clutch Control Module X1
|
|
Connector Part Information
- Harness Type: All Wheel Drive
- OEM Connector: 15479300
- Service Connector: 19180282
- Description: 16-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13578912 |
J-35616-2A (GY) |
J-38125-553 |
12191819 |
8 |
E |
1 |
K47 Rear Differential Clutch Control Module X1
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/BN |
2940 |
Battery Positive Voltage |
I |
F46 |
| 2-4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
I |
F46 |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
BU/YE |
6105 |
High Speed GMLAN Serial Data (+) (2) |
I |
F46 |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
F46 |
| 10 |
0.5 |
BK |
1250 |
Ground |
I |
F46 |
| 11-12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
I |
F46 |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.5 |
WH |
6106 |
High Speed GMLAN Serial Data (-) (2) |
I |
F46 |
| 16 |
- |
- |
- |
Not Occupied |
- |
- |
