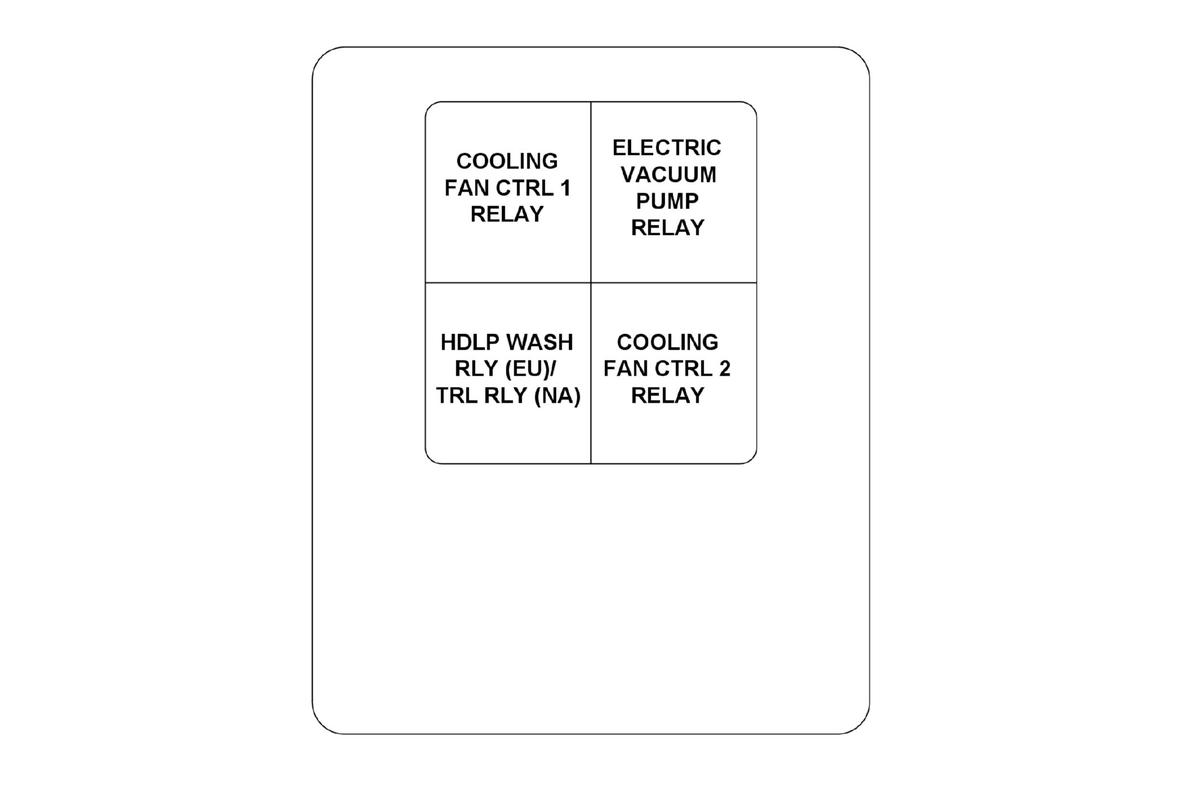

X70A Relay Block - Underhood Label
X70A RELAY BLOCK - UNDERHOOD RELAY IDENTIFICATION
| No. | Device Label Name | Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Relays | ||||
| KR14: 1 | KR14: EVP Relay | KR14: KR14 Brake Booster Pump Motor Relay | KR14: - | KR14: Not Used |
| KR20E: 2 | KR20E: Cooling Fan 1 Relay | KR20E: KR20E Cooling Fan Speed Control Relay | KR20E: - | KR20E: Not Used |
| KR20F: 3 | KR20F: Cooling Fan 2 Relay | KR20F: KR20F Cooling Fan Speed Control 2 Relay | KR20F: - | KR20F: Not Used |
| KR2: 4 | KR2: Head Lamp Washer Relay | KR2: KR2 HeadLamp Washer Pump Relay | KR2: - | KR2: Not Used |
