Module Power, Ground, Serial Data, And MIL

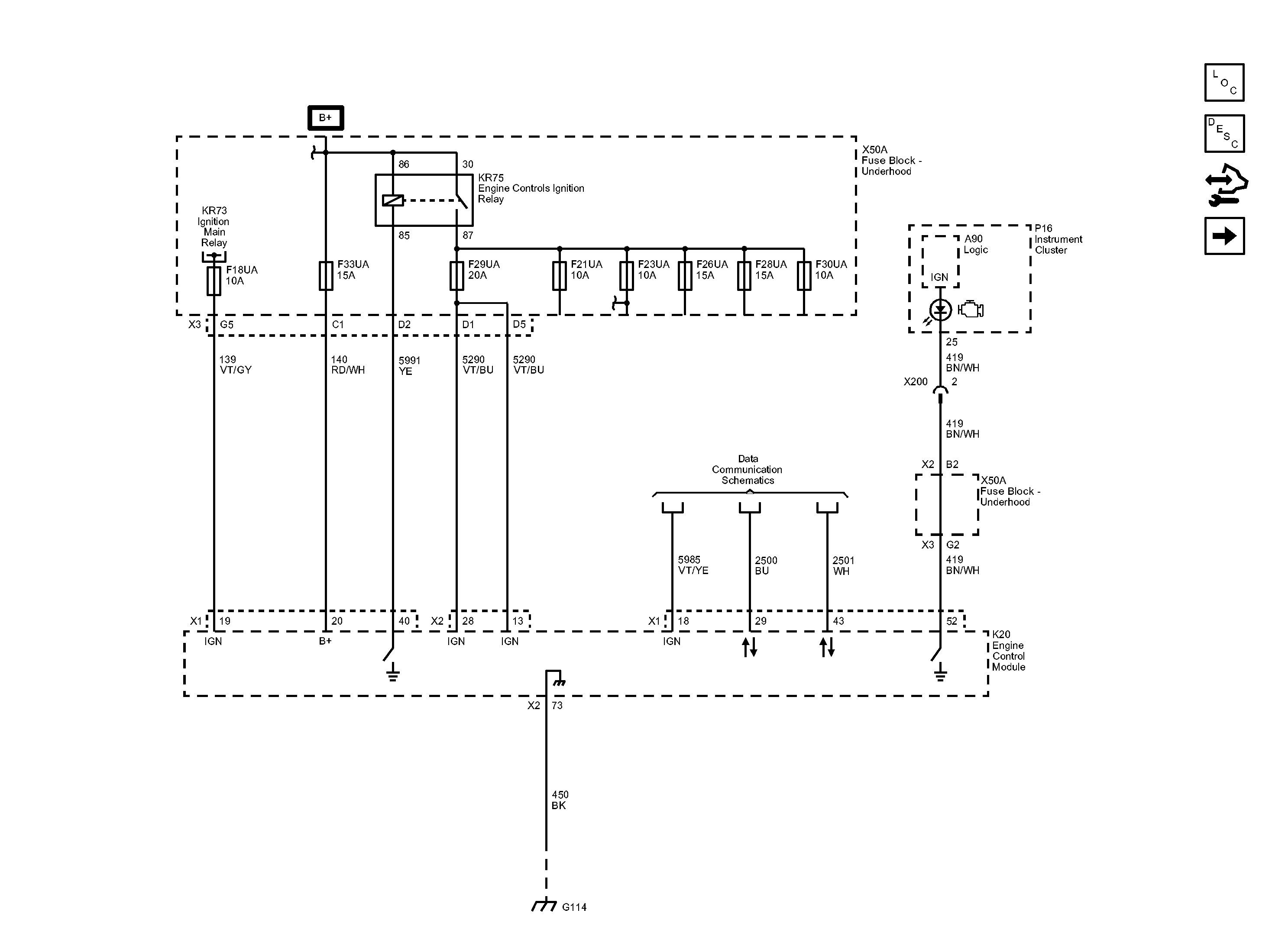

Fig 1: Module Power, Ground, Serial Data And MIL Wiring Schematic

GM2884096

Courtesy of GENERAL MOTORS COMPANY
