Module Power, Ground And Subsystem References

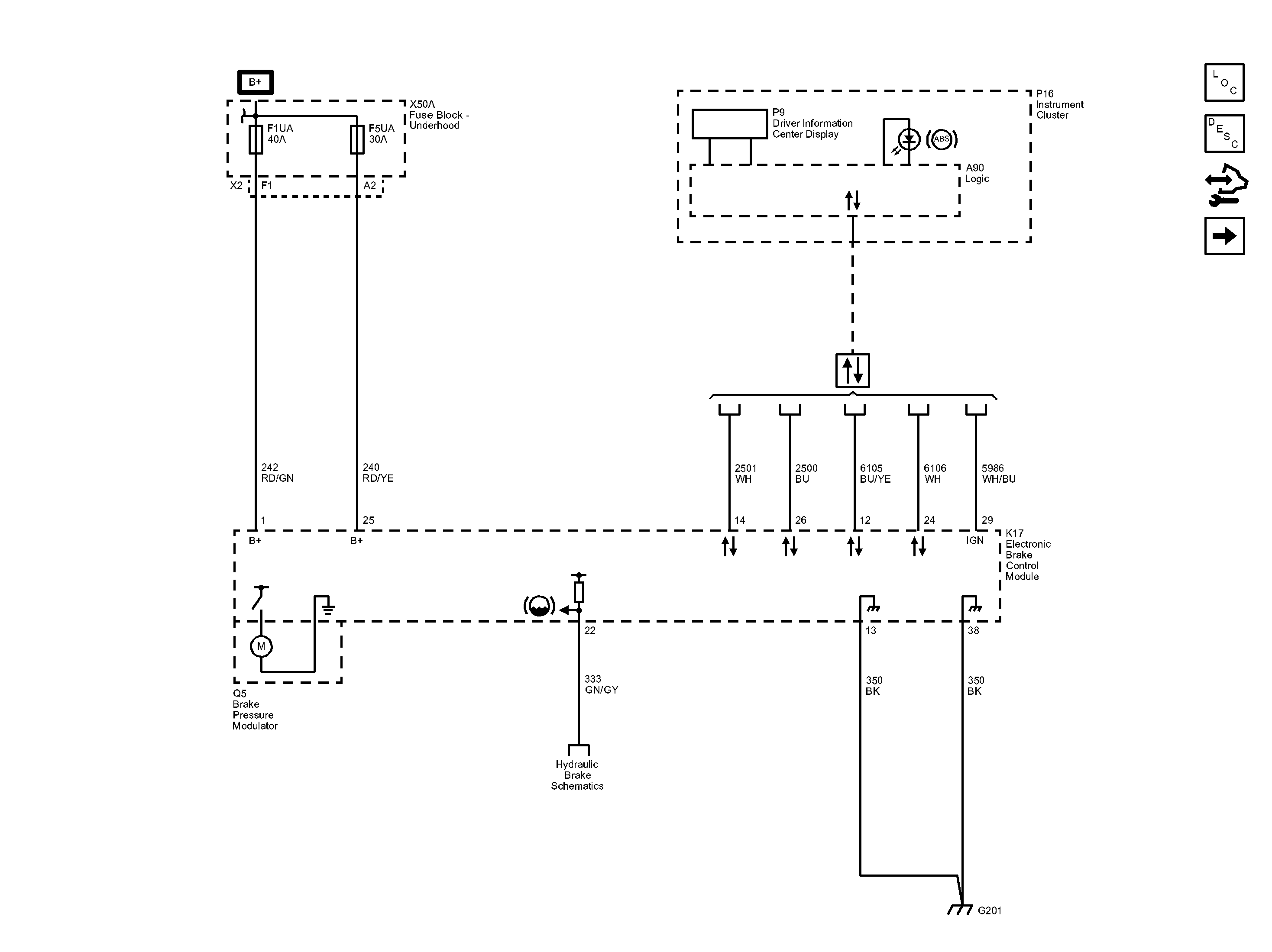

Fig 1: Module Power, Ground And Subsystem References Wiring Schematic

GM2873698

Courtesy of GENERAL MOTORS COMPANY
