Module Power, Ground, Serial Data And Memory Controls (AAG)

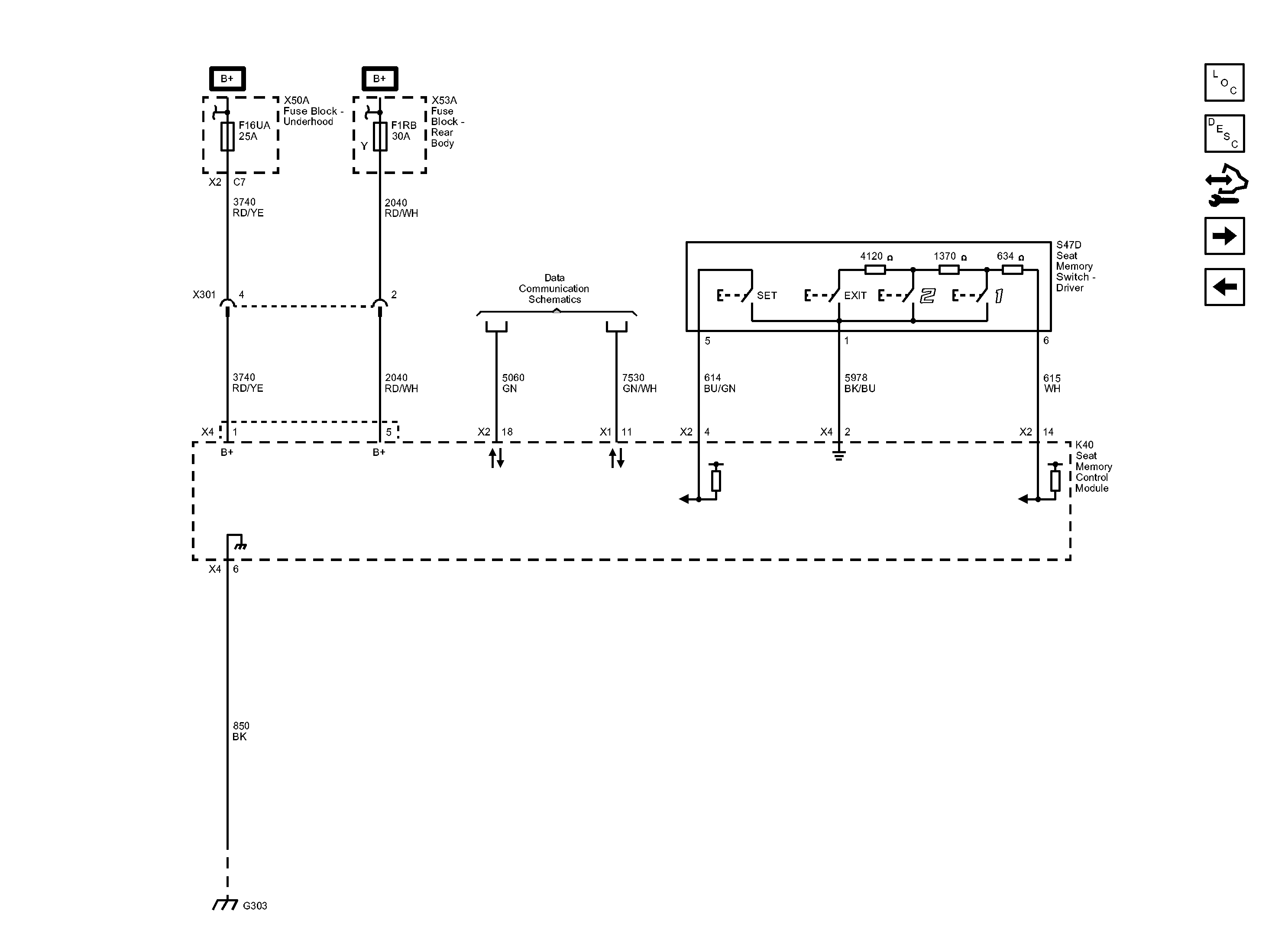

Fig 1: Module Power, Ground, Serial Data And Memory Controls (AAG) Wiring Schematic

GM2891148

Courtesy of GENERAL MOTORS COMPANY
