Installation Procedure

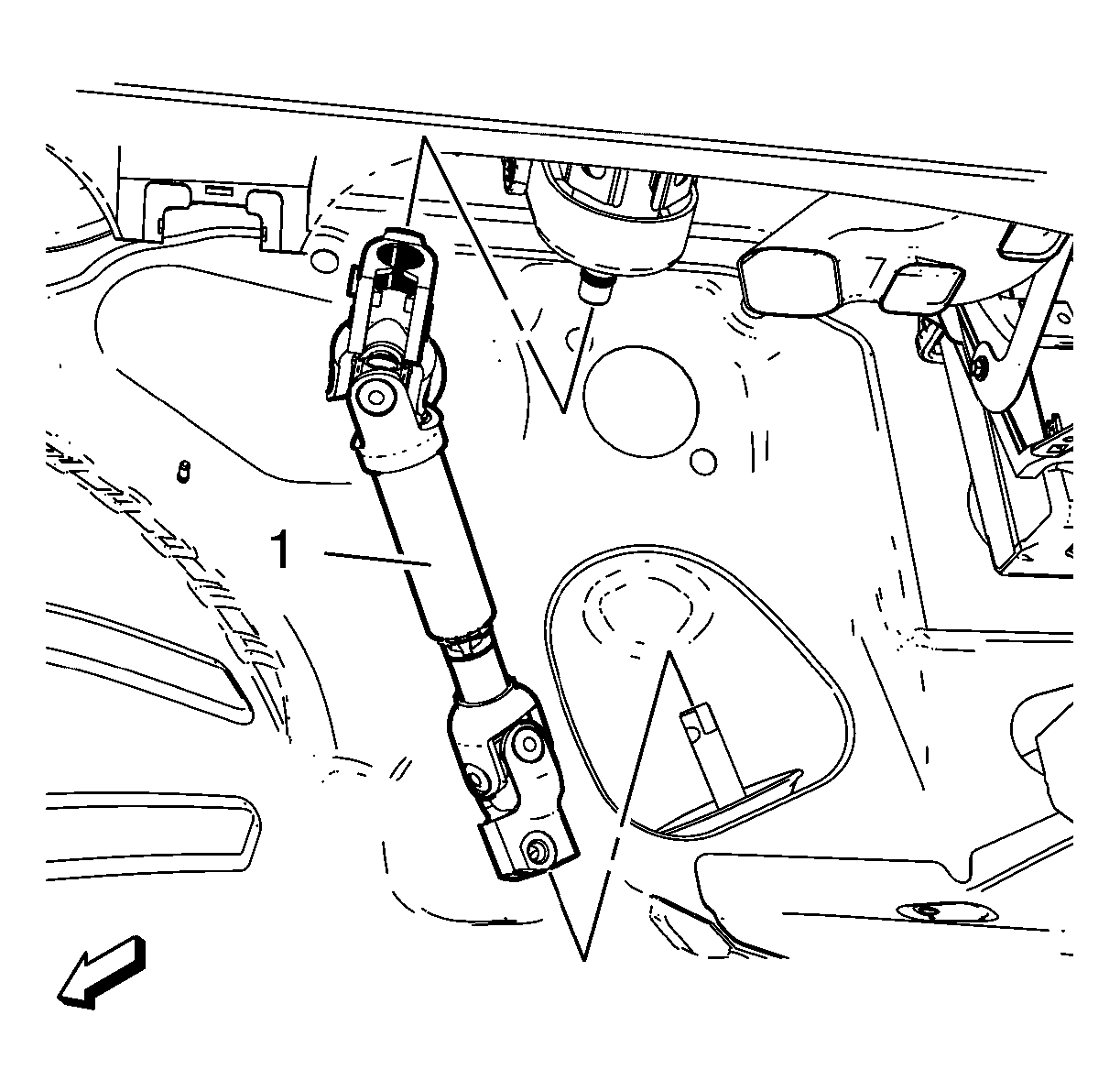

Fig 1: View Of Intermediate Steering Shaft

Courtesy of GENERAL MOTORS COMPANY

Install the intermediate steering shaft (1).

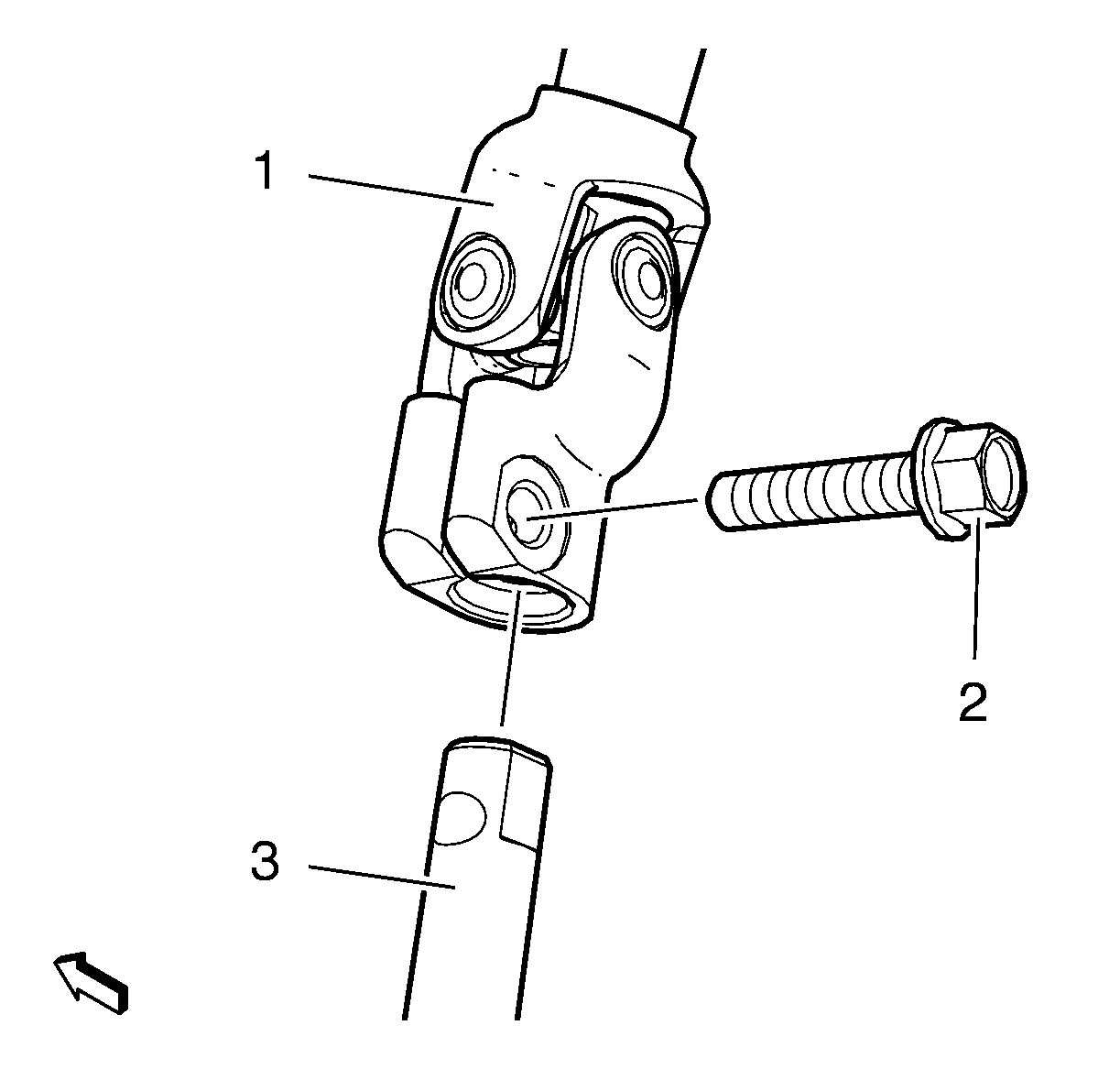

Fig 2: Identifying Universal Joint, Steering Gear Pinion And Lower Bolt

Courtesy of GENERAL MOTORS COMPANY

Push upper universal joint onto steering column carefully as described in the above note.
Push down lower universal joint onto steering gear pinion.
Insert the lower bolt (2) with thread lock compound. Refer to Adhesives, Fluids, Lubricants, and Sealers .

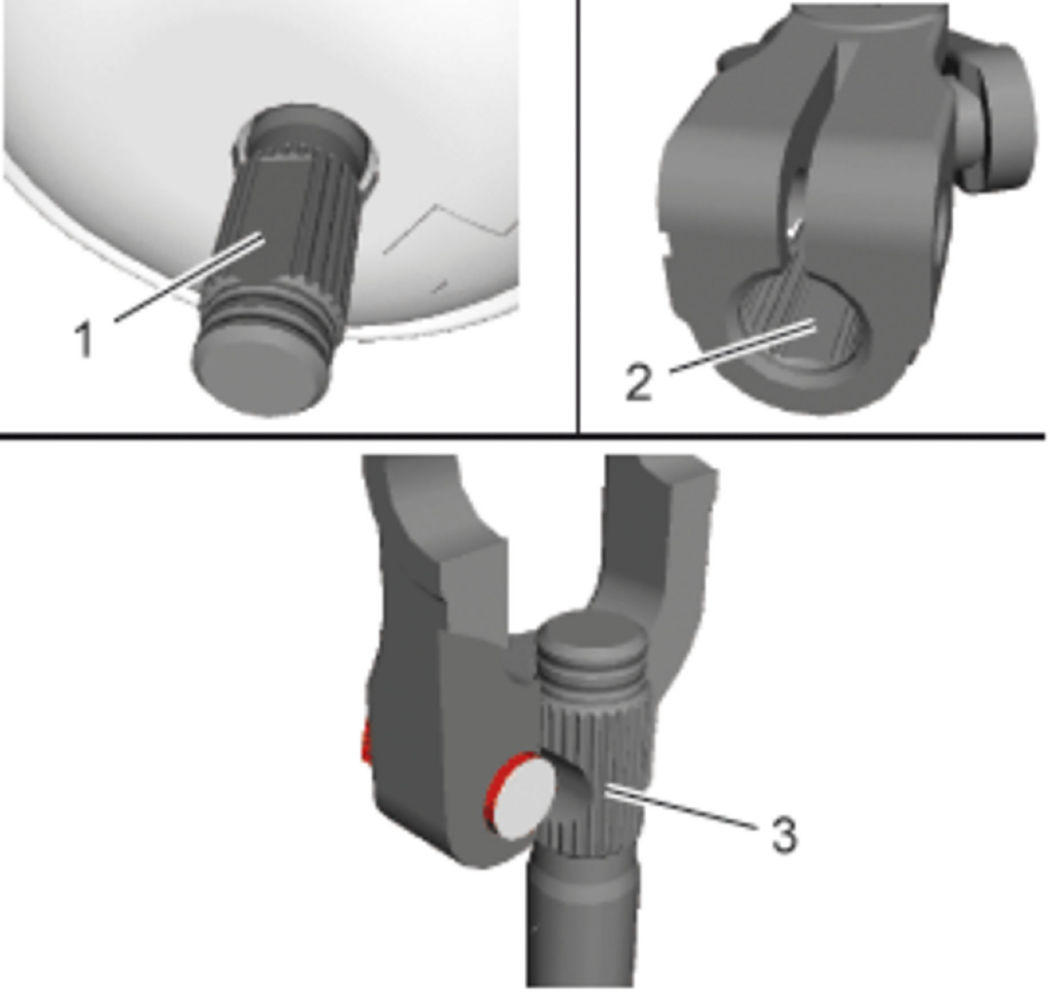

Fig 3: Identifying Universal Joint And Steering Pinion Attachment Points

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The recess (2) of the fine toothing in the universal joint have to align precisely with the recess (1) of the fine toothing on the steering pinion. The bore in the universal joint has to align with the groove on the steering pinion (3).

Push universal joint onto steering pinion carefully as described in the above note.

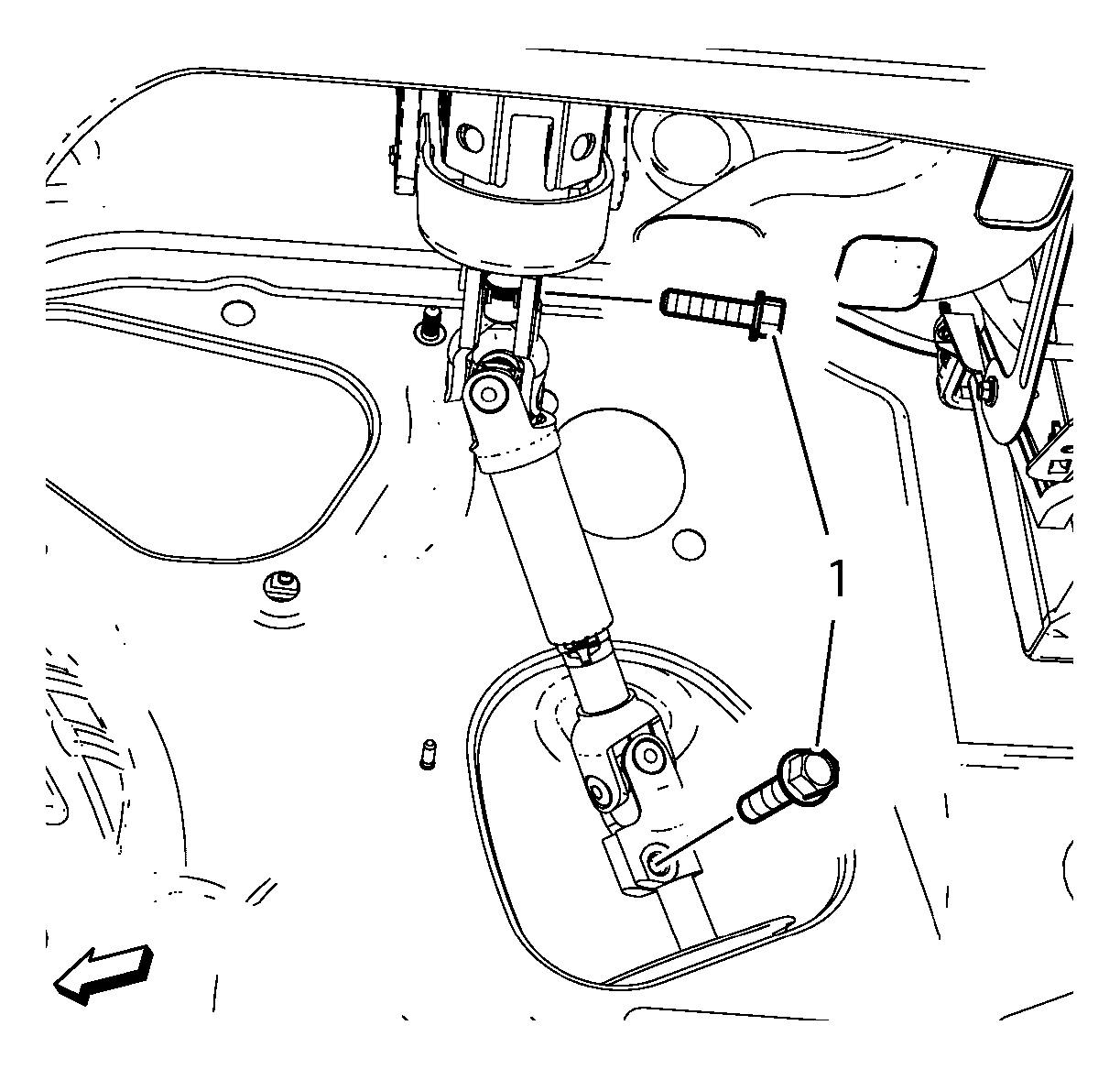

Fig 4: Locating Lower Steering Intermediate Shaft Bolts

Courtesy of GENERAL MOTORS COMPANY

Apply thread lock adhesive to upper shaft bolt. Refer to Adhesives, Fluids, Lubricants, and Sealers .

CAUTION:

Refer to Fastener Caution .

Install the upper intermediate steering shaft bolt (1). Tighten the bolt to 34 N.m (25 lb ft).
Install the NEW lower intermediate steering shaft bolt (1). Tighten the bolt to 34 N.m (25 lb ft).
Center the steering angle sensor. Refer to Steering Angle Sensor Centering .
