Intermittent Crank/No Start With DTC P1682 Set (PI1422)
Publication date: 2015-02-19Reference number: PI1422
INTERMITTENT CRANK/NO START WITH DTC P1682 SET
TECHNICAL SERVICE BULLETIN
Reference Number(s): PI1422, Date of Issue:
February 19, 2015
| AFFECTED MODEL(S): | 2012-2015 Buick Verano; 2011-2015 Chevrolet Cruze |
CONDITION/CONCERN
Some customers may comment on an intermittent crank/no start in cold climate conditions.
When checking the vehicle for DTCs, the ECM may report P1682 set as current or in history.
This condition may be caused by excessive resistance across the KR75 Engine Controls Ignition Relay contacts due to frost build-up.
RECOMMENDATION/INSTRUCTIONS

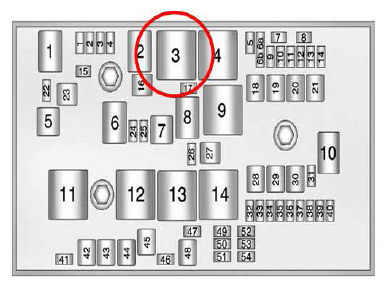

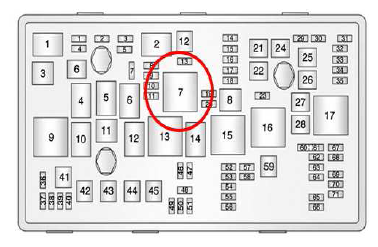

Chevrolet Cruze Relay
If no other root cause is identified through normal diagnosis, replace the KR75 Engine Controls Ignition Relay (shown above) with the updated relay, P/N 13595908.
PARTS INFORMATION
| Part Number | Description |
|---|---|
| 13595908 | RELAY |
WARRANTY INFORMATION
For vehicles repaired under the Bumper-to-Bumper coverage (Canada Base Warranty coverage), use the following labor operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage information.
| Labor Operation | Description | Labor Time | ||
|---|---|---|---|---|
| 5480058(1) | Diagnosis and Replace the Engine Control Module Relay in the UBEC (KR75 Engine Controls Ignition Relay) | 0.4 hr | ||
|
||||
