Door Component Views
>>
Left Rear Door Components
Left Rear Door Components
Left Rear Door Components
Component Name
Callout
M74LR Window Motor - Left Rear
1
S79LR Window Switch - Left Rear
2
P19AL Speaker - Left Rear Door
3
A23LR Door Latch Assembly - Left Rear
4

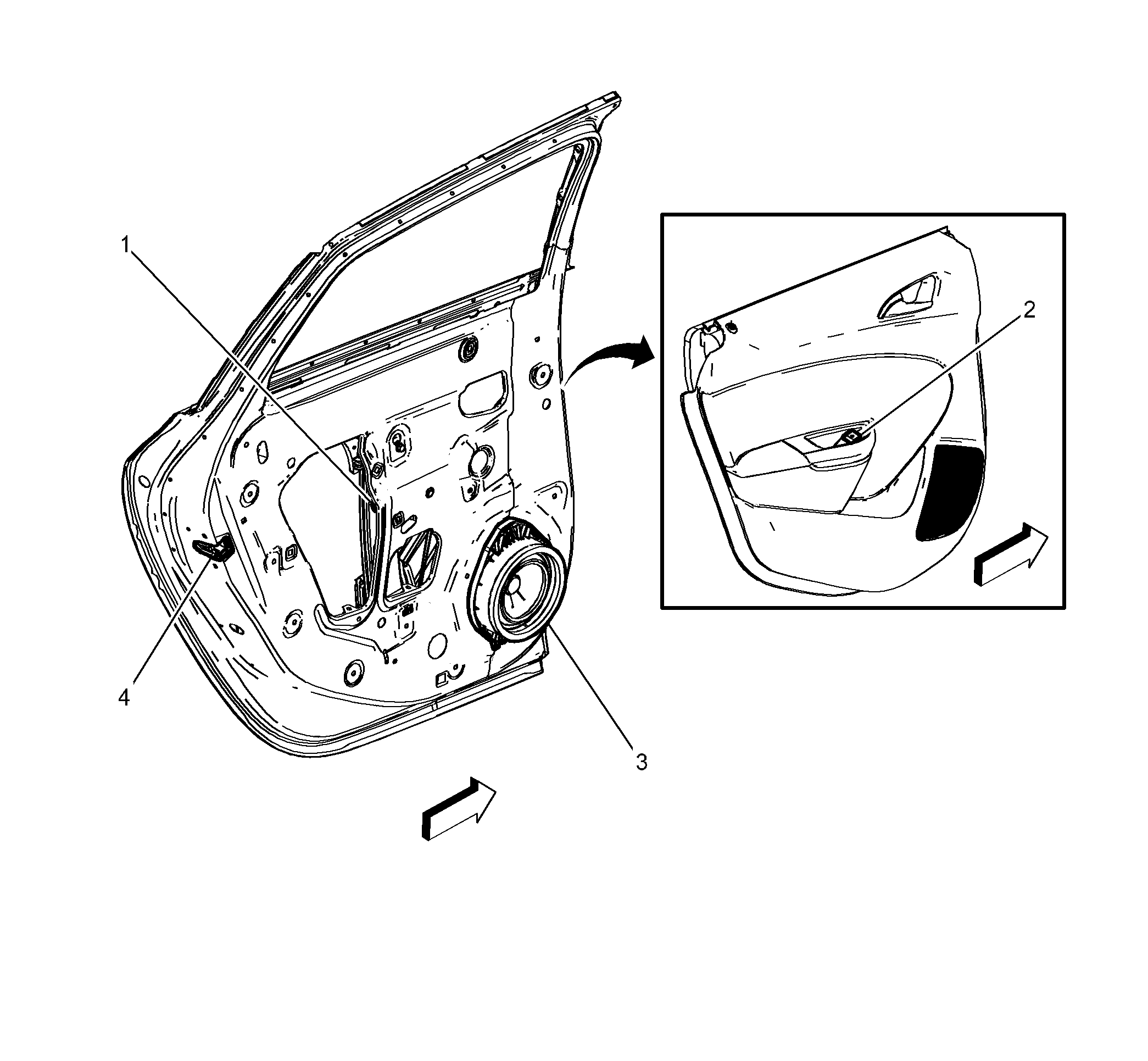

Fig 1: Left Rear Door Components
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
