Linear Interconnect Network (LIN)

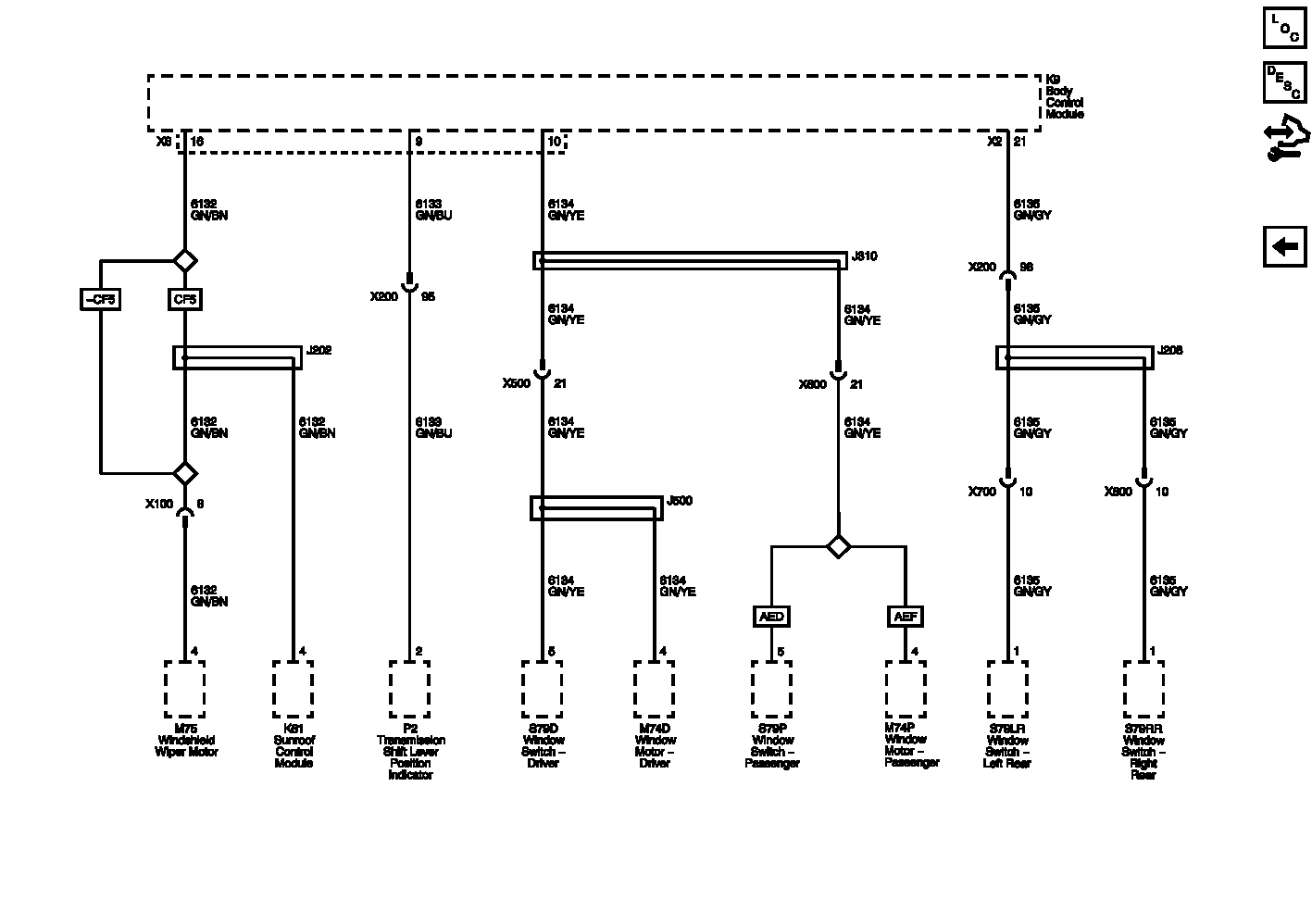

Fig 1: Linear Interconnect Network (LIN) Wiring Schematic

GM2690042

Courtesy of GENERAL MOTORS COMPANY
