Subsystem References (3 of 4)

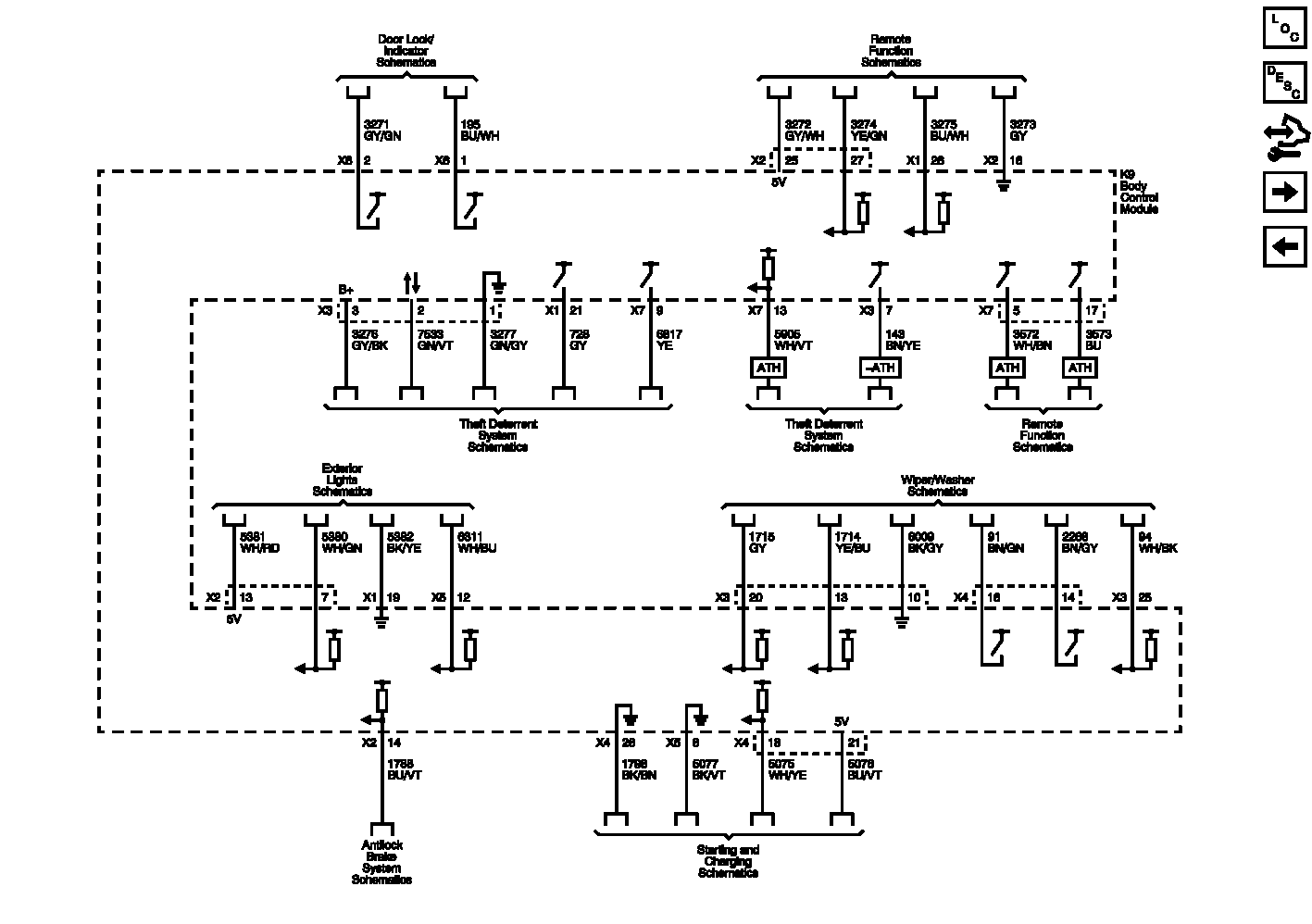

Fig 1: Subsystem References Wiring Schematic (3 of 4)

GM2690246

Courtesy of GENERAL MOTORS COMPANY
