Camshaft Position Sensor Replacement - Exhaust

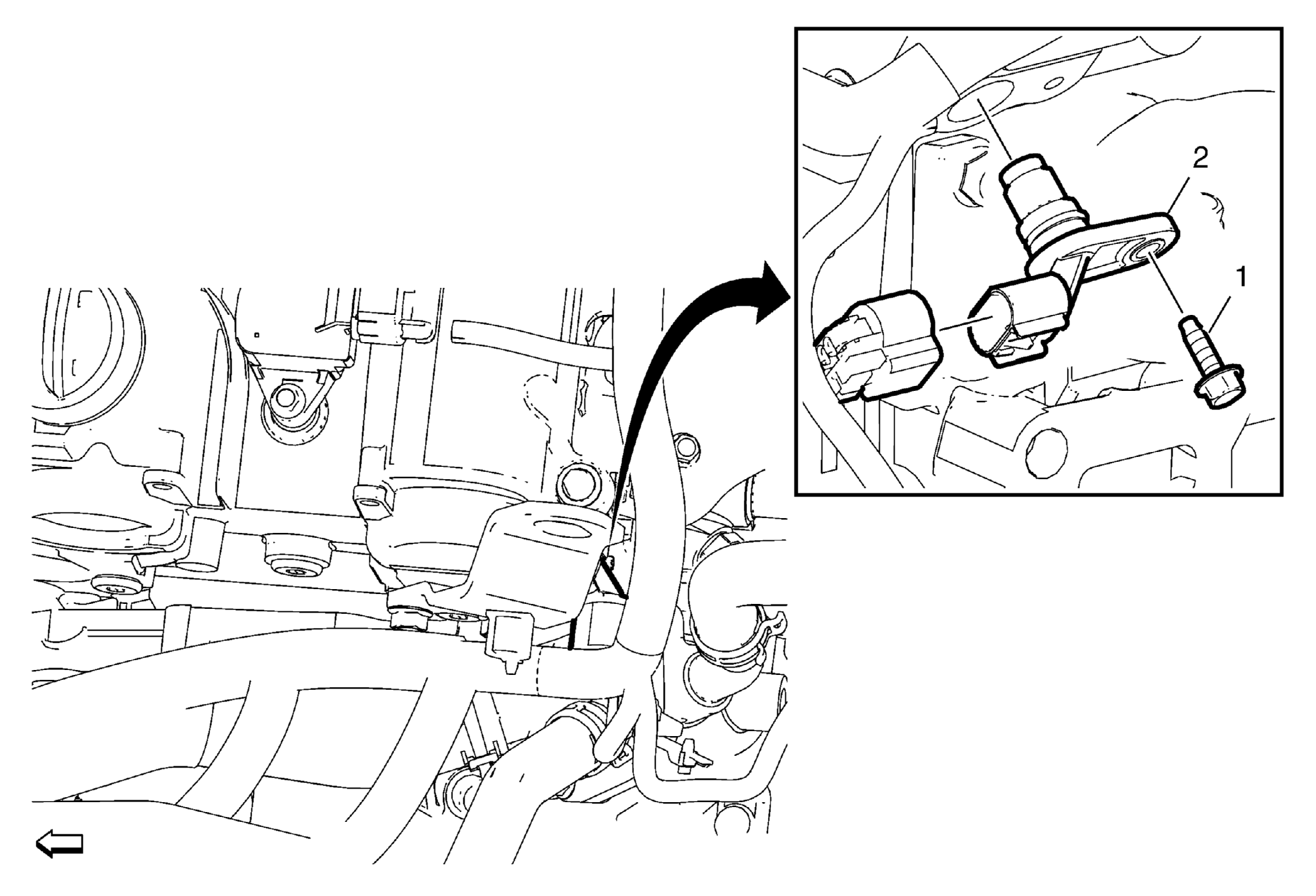

Fig 1: Exhaust Camshaft Position Sensor & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Exhaust Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Exhaust Camshaft Position Sensor Procedure Disconnect the electrical connector. Use a NEW seal ring.

Callout

Component Name

Preliminary Procedures
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Exhaust Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Exhaust Camshaft Position Sensor

Procedure
