Installation Procedure

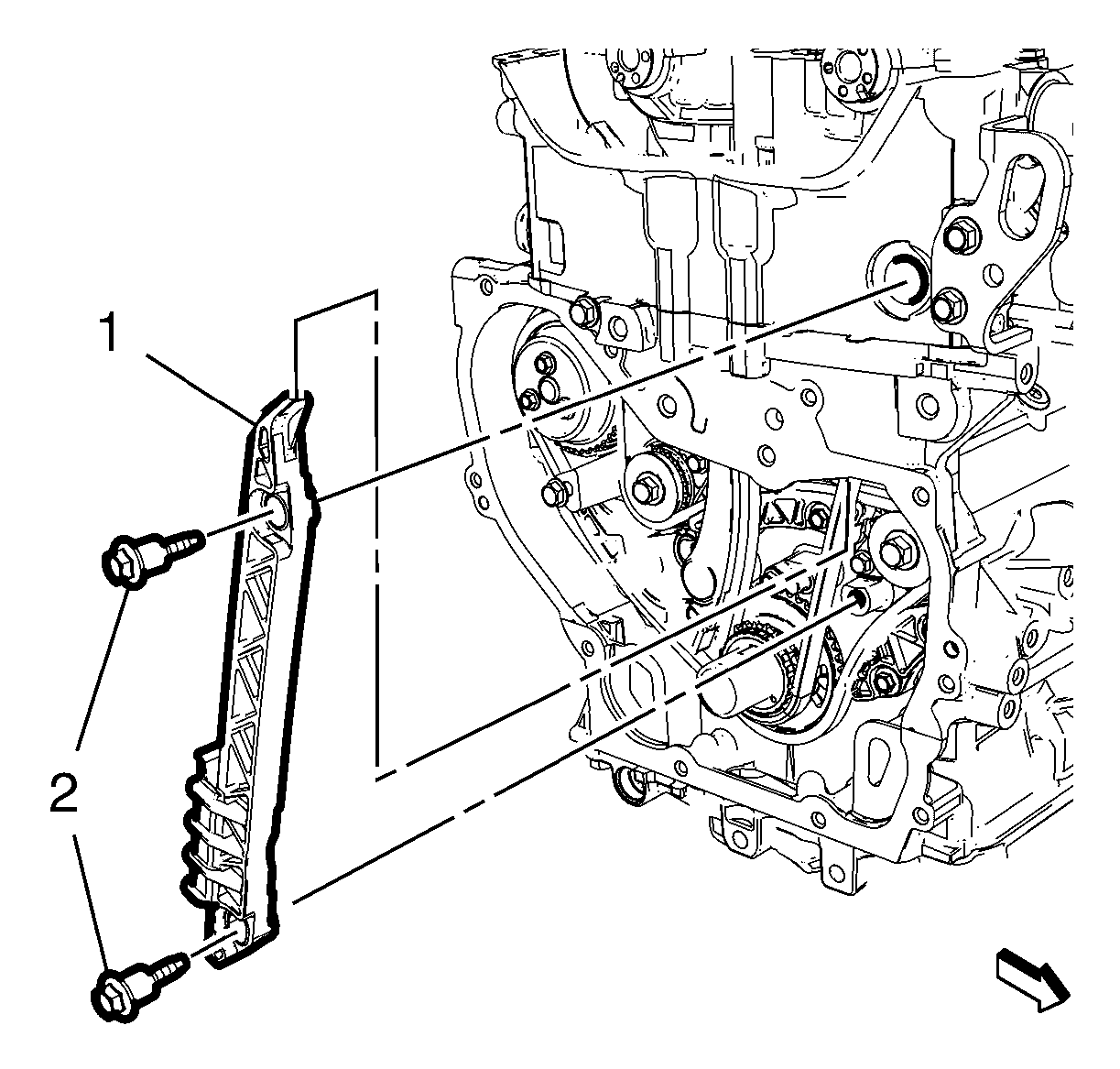

    Fig 1: Timing Chain Guide & Bolts
    GM2557071Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the timing chain guide (1) and the timing chain guide bolts (2) and tighten to 12 N.m (106 lb in).

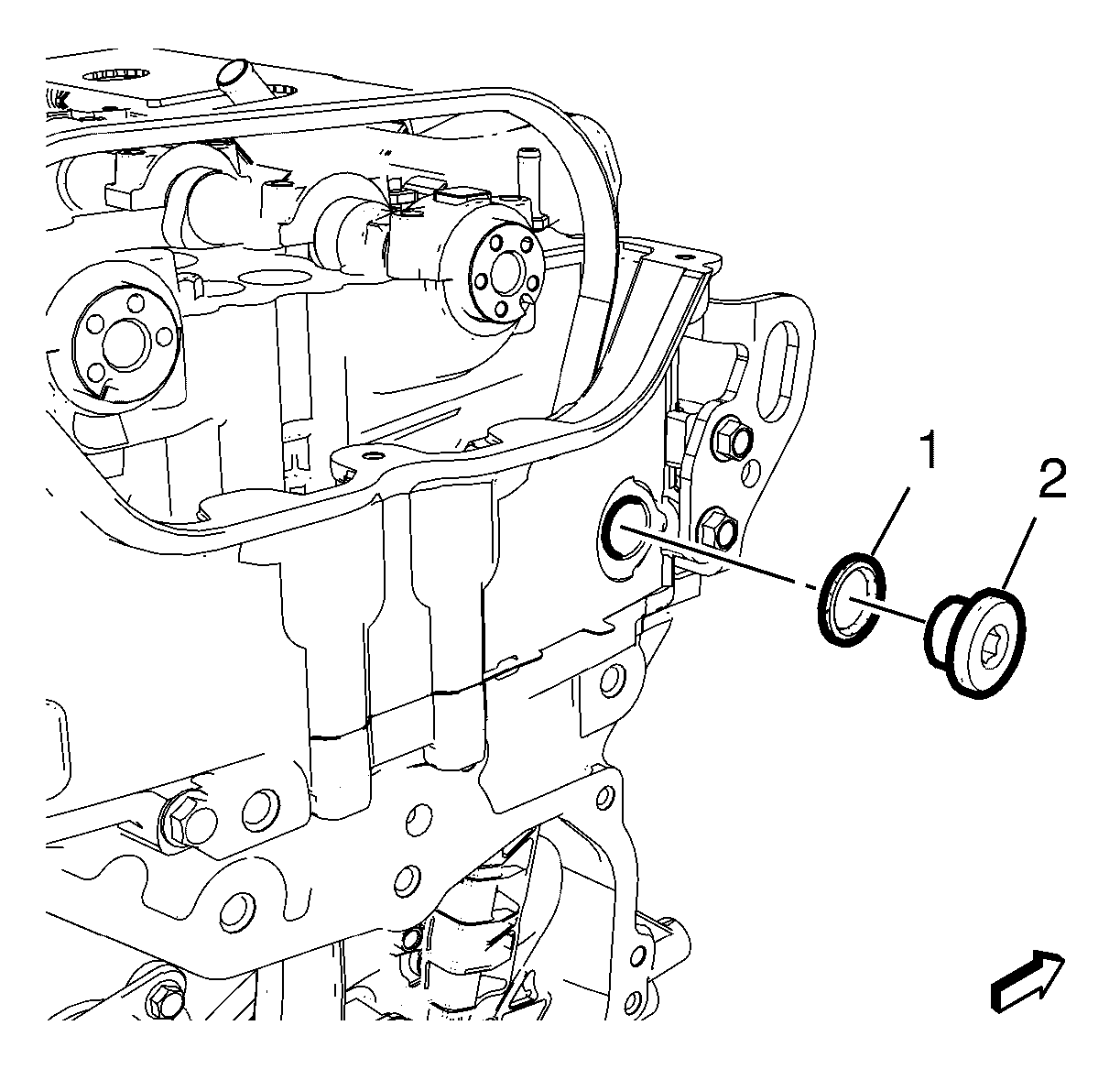

    2. Fig 2: Timing Chain Guide Access Hole Plug & Washer
    GM2557070Courtesy of GENERAL MOTORS COMPANY
  2. Install the timing chain guide access hole plug (1) and the NEW washer (2) and tighten to 75 N.m (55 lb ft).
  3. Install the engine front cover. Refer to Engine Front Cover Replacement .
