Installation Procedure

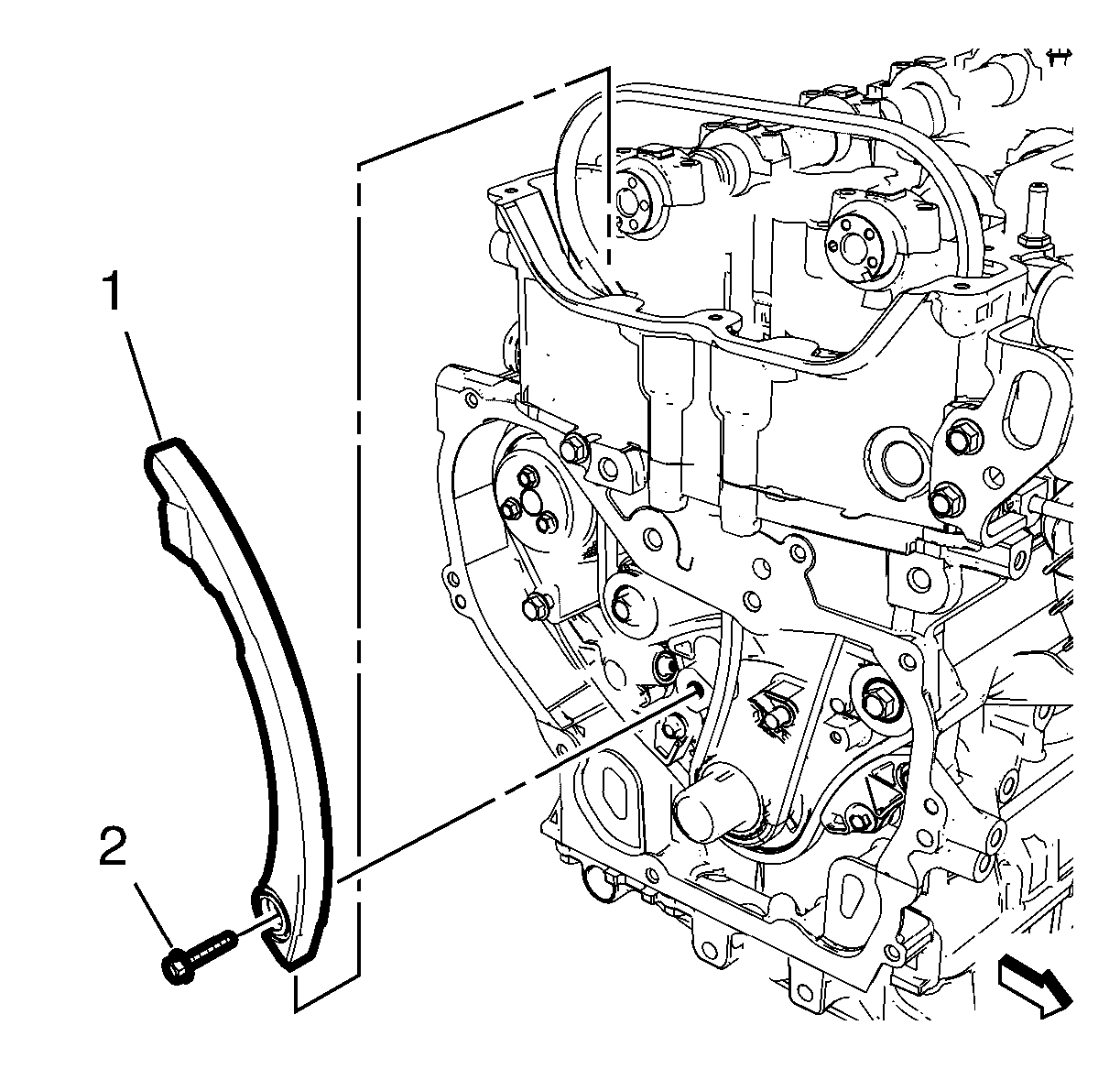

    Fig 1: Adjustable Timing Chain Guide & Bolt
    GM2557072Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the timing chain adjustable guide (1) and the timing chain adjustable guide bolt (2) and tighten to 12 N.m (106 lb in).
  2. Install the engine front cover. Refer to Engine Front Cover Replacement .
  3. Install the camshaft position intake actuator. Refer to Camshaft Position Intake Actuator Replacement .
  4. Install the camshaft position exhaust actuator. Refer to Camshaft Position Exhaust Actuator Replacement .
