Installation Procedure

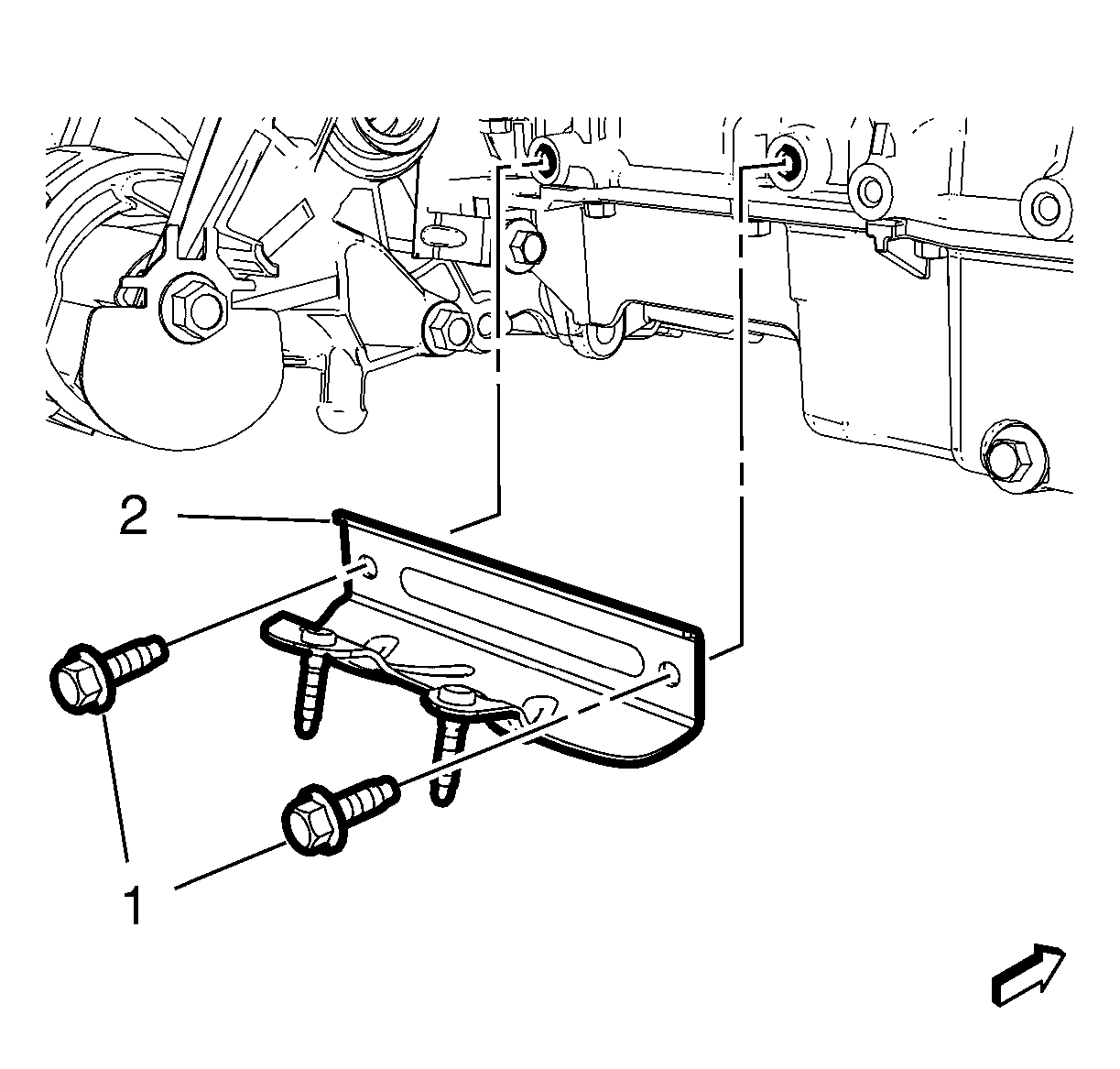

    Fig 1: Catalytic Converter Brace Bracket & Bolts
    GM2557090Courtesy of GENERAL MOTORS COMPANY
  1. Install the catalytic converter brace bracket (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 catalytic converter brace bracket bolts (1) and tighten to 58 N.m (43 lb ft).
  3. Install the three way catalytic converter. Refer to Three-Way Catalytic Converter Replacement .
  4. Install the catalytic converter. Refer to Catalytic Converter Replacement .
  5. Lower and unsupport the vehicle.
