Steering Wheel Secondary/Configurable Controls

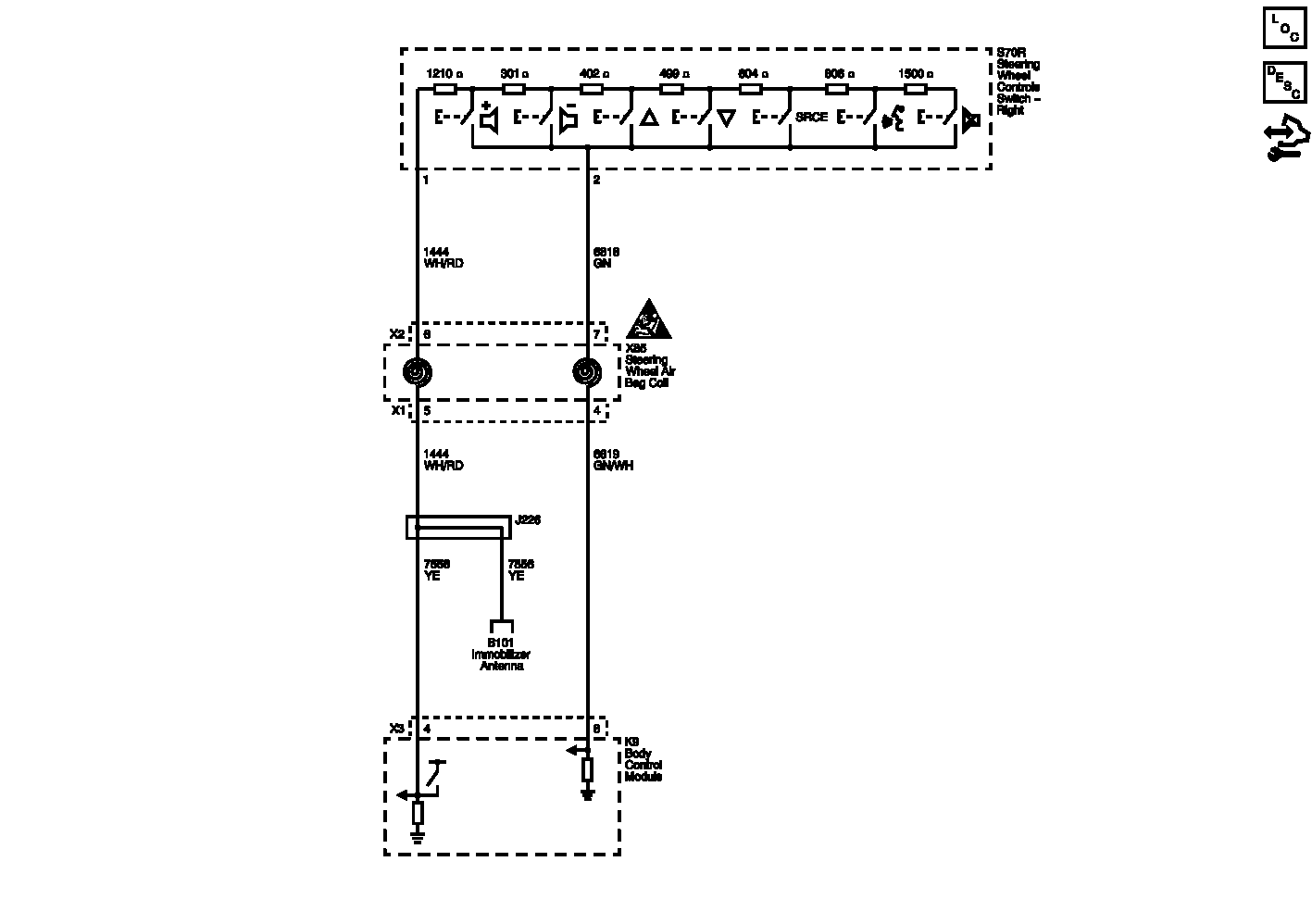

Fig 1: Steering Wheel Secondary/Configurable Controls Wiring Schematic

GM2689899

Courtesy of GENERAL MOTORS COMPANY
