Front Seat Belt Guide Adjuster Replacement
Front Seat Belt Guide Adjuster Replacement

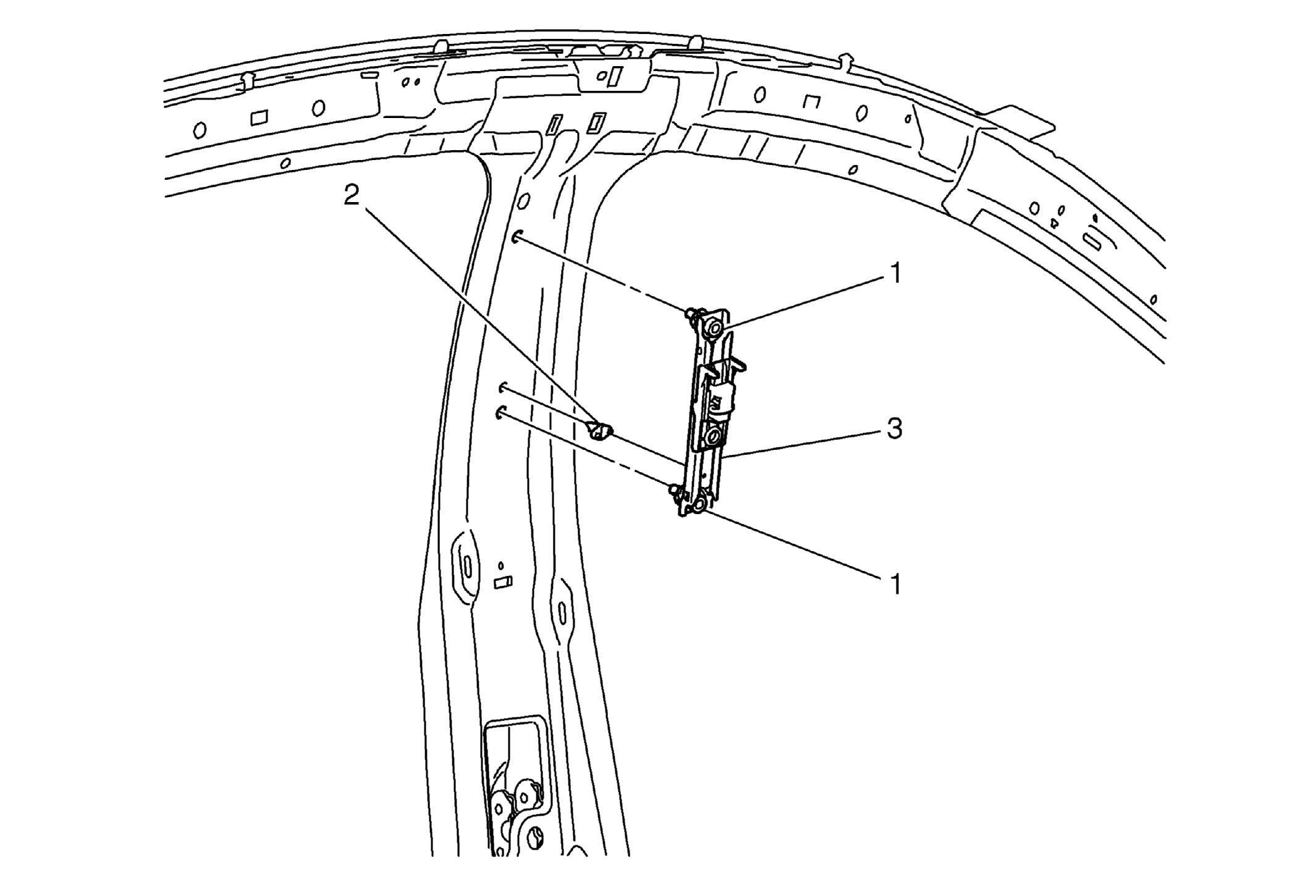

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the center pillar upper trim panel. Refer to Center Pillar Upper Garnish Molding Replacement . |
|
| 1 | Driver or Passenger Seat Shoulder Belt Guide Adjuster Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Driver or Passenger Seat Shoulder Belt Guide Adjuster Fastener |
| 3 | Driver or Passenger Seat Shoulder Belt Guide Adjuster |
