Front Floor Console Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

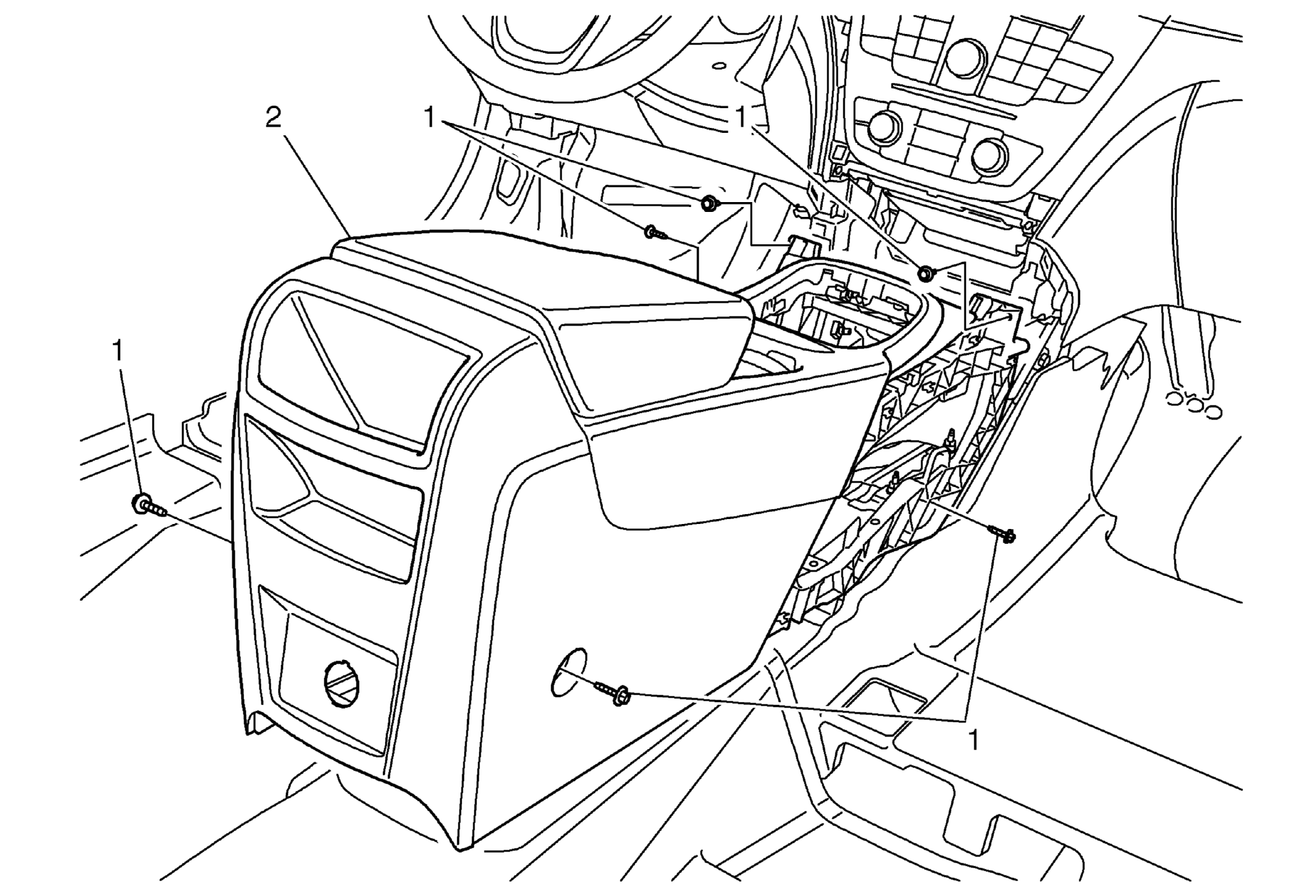

Fig 1: Front Floor Console And Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the transmission control lever boot. Refer to Transmission Control Lever Boot Replacement . Remove the front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement . Remove the instrument panel ashtray housing. Refer to Instrument Panel Ashtray Housing Replacement .
1	Front Floor Console Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Procedure: Move the front seats forward or backward in order to access the fasteners for removal.
2	Front Floor Console Assembly Procedures Disconnect the electrical connections. When replacing the front floor console assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the transmission control lever boot. Refer to Transmission Control Lever Boot Replacement .
Remove the front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement .
Remove the instrument panel ashtray housing. Refer to Instrument Panel Ashtray Housing Replacement .

Front Floor Console Fastener (Qty: 6)

CAUTION: Refer to Fastener Caution .

Procedure:
Move the front seats forward or backward in order to access the fasteners for removal.

Front Floor Console Assembly

Procedures

Disconnect the electrical connections.
When replacing the front floor console assembly, transfer all necessary components.
